Exposed Fastener Metal Roofing Panels

7/8" CORRUGATED - SPECKLED RUST®

Speckled Rust® is a painted version of a corrugated weathering steel. It is designed to give your project a stunning and brilliant orange/brown appearance. The color combinations in this paint print give it a realistic rusted finish that does not just look brown from a distance.

Get A Quote

7/8" Corrugated Flashing Details & Trim Part Numbers

Product Data

Material Type: 7/8" Corrugated

Rib Distance (Pitch): 2.67" Pitch

Rib Height: 7/8"

Available Gauges: 20, 22, 24, 26

Substrate: AZ50 Minimum (Galvalume®/Zincalume®)

Fasteners: Exposed

Panel Length: 1' to 52'

Recommended Minimum
Roof Slope: 3/12

Installation
Can be installed over an open purlin system or a solid substrate.
Use bead mastic on the overlap if used for a roofing application.

Overall Width
37" Typical for Standard Solid Colors in SMP and PVDF Paint Finishes
Specialty Paint Prints and Finishes Vary. See Graph.

Coverage Area (Roof)
32" Typical for Standard Solid Colors in SMP and PVDF Paint Finishes
Specialty Paint Prints and Finishes Vary. See Graph.

Coverage Area (Wall)
34.67" Typical for Standard Solid Colors in SMP and PVDF Paint Finishes
Specialty Paint Prints and Finishes Vary. See Graph.

Applications
Residential
Commercial
Agricultural
Interior

See How These Colors Will Look On Your Building

Standard Colors (PVDF)

Colors represented on this chart may not exactly match actual material. All colors should be verified using actual metal samples.

† This material is batch sensitive and directional. Do not mix batches or coil lots. Premium color. Slightly higher prices.

Click the dropdown menu to explore more color options for this panel type.



Hide List of Colors Show Colors as List

  • Regal Blue Image
  • Royal Blue Image
  • Slate Blue Image
  • Regal Red Image
  • Colonial Red Image
  • Terra Cotta Image
  • Classic Green Image
  • Matte Black Image
  • Dark Bronze Image
  • Medium Bronze Image
  • Mansard Brown Image
  • Burnished Slate Image
  • Silver Metallic† Image
  • Zinc Metallic† Image
  • Charcoal Gray Image
  • Gun Metal Gray Image
  • Slate Gray Image
  • Dolphin Gray Image
  • Dove Gray Image
  • Ash Gray Image
  • Copper Penny† Image
  • Desert Tan Image
  • Champagne† Image
  • Sandstone Image
  • Almond Image
  • Bone White Image
  • Regal White Image

Matte Colors

Colors represented on this chart may not exactly match actual material. All colors should be verified using actual metal samples.

*Minimum Order of 5,000 sq. ft.

Click the dropdown menu to explore more color options for this panel type.



Hide List of Colors Show Colors as List

  • Matte Regal White* Image
  • Matte Sandstone* Image
  • Matte Desert Tan* Image
  • Matte Slate Gray* Image
  • Matte Musket Gray Image
  • Matte Zinc Metallic Image
  • Matte Patina Image
  • Matte Charcoal Gray Image
  • Matte Burnished Slate* Image
  • Matte Mansard Brown* Image
  • Matte Medium Bronze* Image
  • Matte Dark Bronze Image
  • Matte Midnight Black Image
  • Matte Black Image
  • Matte Classic Green* Image
  • Matte Colonial Red* Image
  • Matte Orange* Image

Natural Matte®

Colors represented on this chart may not exactly match actual material. All colors should be verified using actual metal samples.

*Natural Matte® uses light-disruptive paint technology and is an SMP Paint Finish. Marring May Occur. Minimum Orders May Apply. Please Contact Your Sales Rep. For Details.

Click the dropdown menu to explore more color options for this panel type.



Hide List of Colors Show Colors as List

  • Natural Matte® - Basalt Image
  • Natural Matte® - Carbon Image
  • Natural Matte® - Graphite Image
  • Natural Matte® - Ore Image
  • Natural Matte® - Shale Image

SMP Paint Finish

Colors represented on this chart may not exactly match actual material. All colors should be verified using actual metal samples.

Click the dropdown menu to explore more color options for this panel type.



Hide List of Colors Show Colors as List

  • Polar White Image
  • Light Stone Image
  • Sahara Tan Image
  • Desert Beige Image
  • Light Gray Image
  • Koko Brown Image
  • Emerald Green Image
  • Country Red Image
  • Steel Gray Image
  • Antique Rustic® Image

Special Order Colors (500 Sq. Ft. Minimum)

Colors represented on this chart may not exactly match actual material. All colors should be verified using actual metal samples.

Click the dropdown menu to explore more color options for this panel type.



Hide List of Colors Show Colors as List

  • Solar White Image
  • Stone White Image
  • Surrey Beige Image
  • Sierra Tan Image
  • Aged Patina Image
  • Sage Green Image
  • Hemlock Green Image
  • Hartford Green Image
  • Evergreen Image
  • Burgundy Image
  • Pre-Weathered Galvalume Image

Additional Finishes

Colors represented on this chart may not exactly match actual material. All colors should be verified using actual metal samples.

Click the dropdown menu to explore more color options for this panel type.



Hide List of Colors Show Colors as List

  • Galvalume®/ Zincalume® Image
  • Galvanized G90 Image
  • A606-4 (aka Corten®) Image
  • Bare Cold Rolled Image
  • Bonderized Image
  • Black Phosphate® Image
  • Rezibond® Image
  • Copper Image
  • Stainless Steel Image
  • Aluminum - Mill Finish Image

Black Colors

Colors represented on this chart may not exactly match actual material. All colors should be verified using actual metal samples.

Click the dropdown menu to explore more color options for this panel type.



Hide List of Colors Show Colors as List

  • Black Zinc Matte® Image
  • Black Ore Matte® Image
  • Matte Black Image
  • Matte Midnight Black Image
  • Dark Bronze Image
  • Matte Dark Bronze Image
  • Medium Bronze Image
  • Blackened Steel Matte® Image
  • Speckled Blackened Rust® Image
  • Streaked Blackened Rust® Image
  • Blackened Copper® Image
  • Vintage® Image
  • Burnt Wood Image

Copper Colors

Colors represented on this chart may not exactly match actual material. All colors should be verified using actual metal samples.

† This material is batch sensitive and directional. Do not mix batches or coil lots. Premium color. Slightly higher prices.

Click the dropdown menu to explore more color options for this panel type.



Hide List of Colors Show Colors as List

  • Streaked Copper® Image
  • Speckled Copper® Image
  • Streaked Blue Copper® Image
  • Speckled Blue Copper® Image
  • Copper Patina® Image
  • Green Copper® Image
  • Aged Copper® Image
  • Streaked Blackened Copper® Image
  • Speckled Blackened Copper® Image
  • Blackened Copper® Image
  • Burnished Slate Image
  • Weathered Metallic® Image
  • Copper Penny† Image

Gray Colors

Colors represented on this chart may not exactly match actual material. All colors should be verified using actual metal samples.

† This material is batch sensitive and directional. Do not mix batches or coil lots. Premium color. Slightly higher prices.

* Not A Paint Finish

** Minimum Order of 5,000 sq. ft.

Click the dropdown menu to explore more color options for this panel type.



Hide List of Colors Show Colors as List

  • Burnished Slate Image
  • Charcoal Gray Image
  • Gun Metal Gray Image
  • Patina Image
  • Slate Gray Image
  • Dolphin Gray Image
  • Dove Gray Image
  • Ash Gray Image
  • Matte Burnished Slate** Image
  • Matte Charcoal Gray Image
  • Matte Patina Image
  • Matte Zinc Metallic Image
  • Matte Musket Gray Image
  • Matte Slate Gray** Image
  • Silver Metallic† Image
  • Zinc Metallic† Image
  • Vintage® Image
  • Black Zinc Matte® Image
  • Gray Zinc Matte® Image
  • Silver Zinc Matte® Image
  • Blue Zinc Matte® Image
  • Bonder-Paint® Light Image
  • Bonder-Paint® Dark Image
  • Bonderized* Image

Rusted Colors

Colors represented on this chart may not exactly match actual material. All colors should be verified using actual metal samples.

Click the dropdown menu to explore more color options for this panel type.



Hide List of Colors Show Colors as List

  • Streaked Rust® Image
  • Speckled Rust® Image
  • Fresh Rust® Image
  • Corten AZP Raw® Image
  • Rustic Rawhide® Image
  • Weathered Rustic® Image
  • Weathered Metallic® Image
  • Iron Rust® Image
  • Antique Rustic® Image
  • Reclaimed Metal Rust® Image
  • Streaked Galvanized Rust® Image
  • Speckled Galvanized Rust® Image
  • Speckled Blackened Copper® Image
  • Blackened Copper® Image

Streaked Series®

Colors represented on this chart may not exactly match actual material. All colors should be verified using actual metal samples.

Click the dropdown menu to explore more color options for this panel type.



Hide List of Colors Show Colors as List

  • Streaked Rust® Image
  • Streaked Blackened Copper® Image
  • Streaked Blue Copper® Image
  • Streaked Copper® Image
  • Streaked Blackened Rust® Image
  • Streaked Galvanized Rust® Image

Vari-Cool® Color Changing Paint System

Colors represented on this chart may not exactly match actual material. All colors should be verified using actual metal samples.

Click the dropdown menu to explore more color options for this panel type.



Hide List of Colors Show Colors as List

  • Kaleidoscope Image
  • Mesa Sunrise Image

Zinc Series

Colors represented on this chart may not exactly match actual material. All colors should be verified using actual metal samples.

† This material is batch sensitive and directional. Do not mix batches or coil lots. Premium color. Slightly higher prices.

Click the dropdown menu to explore more color options for this panel type.



Hide List of Colors Show Colors as List

  • Gray Zinc Matte® Image
  • Silver Zinc Matte® Image
  • Blue Zinc Matte® Image
  • Black Zinc Matte® Image
  • Vintage® Image
  • Zinc Patina® Image
  • Zinc Metallic†® Image
  • Matte Musket Gray® Image
  • Bonder-Paint® Light Image
  • Bonder-Paint® Dark Image
  • Bonderized®* Image
  • Rezibond®* Image

Aluminum (Standard Colors)

Colors represented on this chart may not exactly match actual material. All colors should be verified using actual metal samples.

Click the dropdown menu to explore more color options for this panel type.



Hide List of Colors Show Colors as List

  • Aluminum - Mill Finish Image
  • Matte Black Image
  • Dark Bronze Image
  • Charcoal Gray Image
  • Almond Image
  • Regal White Image
  • Fresh Rust® Image

Aluminum (Special Order Colors)

Colors represented on this chart may not exactly match actual material. All colors should be verified using actual metal samples.

† This material is batch sensitive and directional. Do not mix batches or coil lots. Premium color. Slightly higher prices.

Click the dropdown menu to explore more color options for this panel type.



Hide List of Colors Show Colors as List

  • Regal Blue Image
  • Slate Blue Image
  • Regal Red Image
  • Colonial Red Image
  • Terra Cotta Image
  • Aged Patina Image
  • Evergreen Image
  • Hartford Green Image
  • Medium Bronze Image
  • Mansard Brown Image
  • Slate Gray Image
  • Dove Gray Image
  • Ash Gray Image
  • Pre-Weathered Galvalume Image
  • Sierra Tan Image
  • Surrey Beige Image
  • Sandstone Image
  • Solar White Image
  • Stone White Image
  • Copper Metallic† Image
  • Silver Metallic† Image

Copper (20oz/16oz)

Real Copper

Click the dropdown menu to explore more color options for this panel type.





Hide List of Colors Show Colors as List

  • Copper Image

Product Info

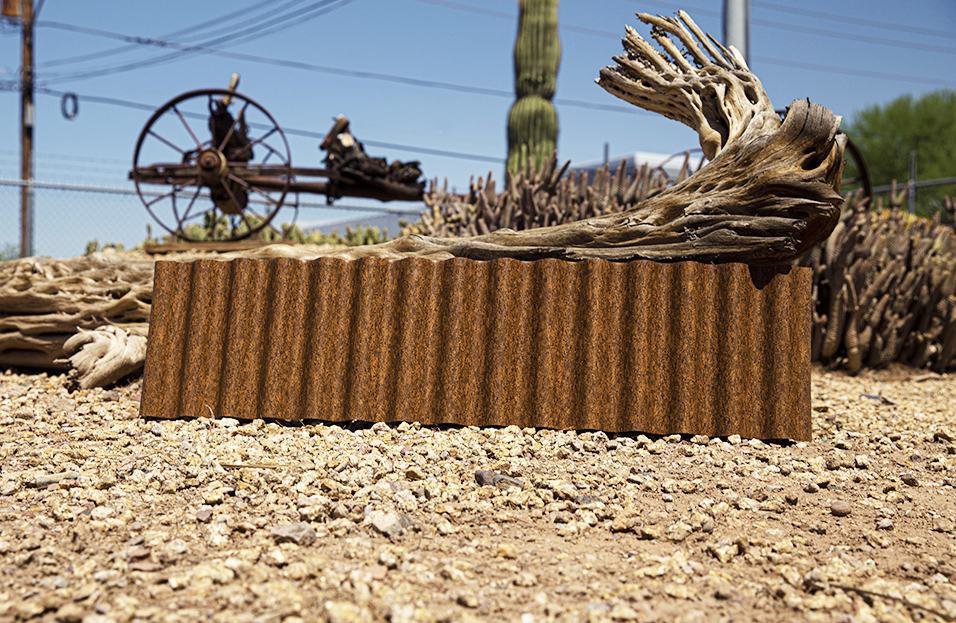

speckled-rust-vignette

The three main advantages in using Speckled Rust® when compared to real rusted roofing are:

  1. Speckled Rust® arrives looking weathered. You don NOT have to wait for it to weather like real corten.
  2. Real Corten will have rust run off and rust stains. Speckled Rust® is a painted product so you will NOT have these problems.
  3. Standard Paint Warranty With Speckled Rust®. Real Rusted Steel in Corten or Bare Cold Rolled does NOT have a WARRANTY.

Speckled Rust® can be used in exterior or interior applications. It is a perfect solution for an interior application as it arrives looking weathered. With real Corten you would have to pre-rust it and than seal it. This takes time and money. You eliminate all of these problems by using Speckled Rust® instead of Corten.

If you are interested in this color I would highly recommend requesting a 7/8" Corrugated sample panel in Speckled Rust®. You really need to see this panel up close to appreciate the beauty and authenticity of this paint finish.

speckled-rust-vignette

Ordering Information

matte black corrugated roof walls

Our goal is to earn your trust and provide excellent service at a factory direct price. Check out our Google reviews.

When you place your order with Western States Metal Roofing you can expect the following:

  • Made to Order Panels - We cut your metal roofing and metal siding panels to the exact lengths needed.
  • Fast Turnaround - 1 to 3 week lead time.
  • Shipping Convenience - Inexpensive delivery throughout the USA, Canada, and Mexico
  • Knowledgeable Sales Associates - Helpful and friendly sales associates that will answer all of your questions.

Get A Quote

matte black corrugated roof walls

JUST IN CASE YOU FORGOT ABOUT THESE

ITEMS YOU WILL NEED

Corrugated metal roofing installation videos

7/8" Corrugated Metal Roofing Installation

EASY Step-By-Step Videos That Will Help You Install 7/8" Corrugated Roofing.

Do You Have Questions about metal roofing? We have the answers.

The Metal Roofing Learning Center

It's a great resource for contractors, architects, and homeowners.

Easy to navigate learning center with videos and blogs that will answer your questions.

  • Installation Videos
  • Panel Comparisons
  • Cost
  • Much More

visit now

metal-roofing-learning-center
The Homeowner's Ultimate Guide

Corrugated Metal Roofing

You have lots of questions about corrugated metal roofing. Instead of going through several different articles, we’ve created a comprehensive guide with all the answers in one spot.

Learn more

corrugated-guide
Articles Direct from the learning center

Which Metal Roofing Panel Is Right For You?

Let your imagination run wild!

COLOR & PRODUCT VISUALIZER

Choose Different Textures, Colors, Finishes, and Panel Types On Your Home Before You Decide.
