Ag Panel - Metal Roofing & Siding Panels

Ag panels are one of the most cost-effective choices for metal siding, fencing, and roofing applications. They are used in agricultural, residential, and commercial projects. Ag panels feature a traditional ribbed profile that provides a timeless rural aesthetic.

Interactive Color Chart

Ag Panel vs. R Panel
Product Specifications

Ag Panel Metal Siding & Roofing

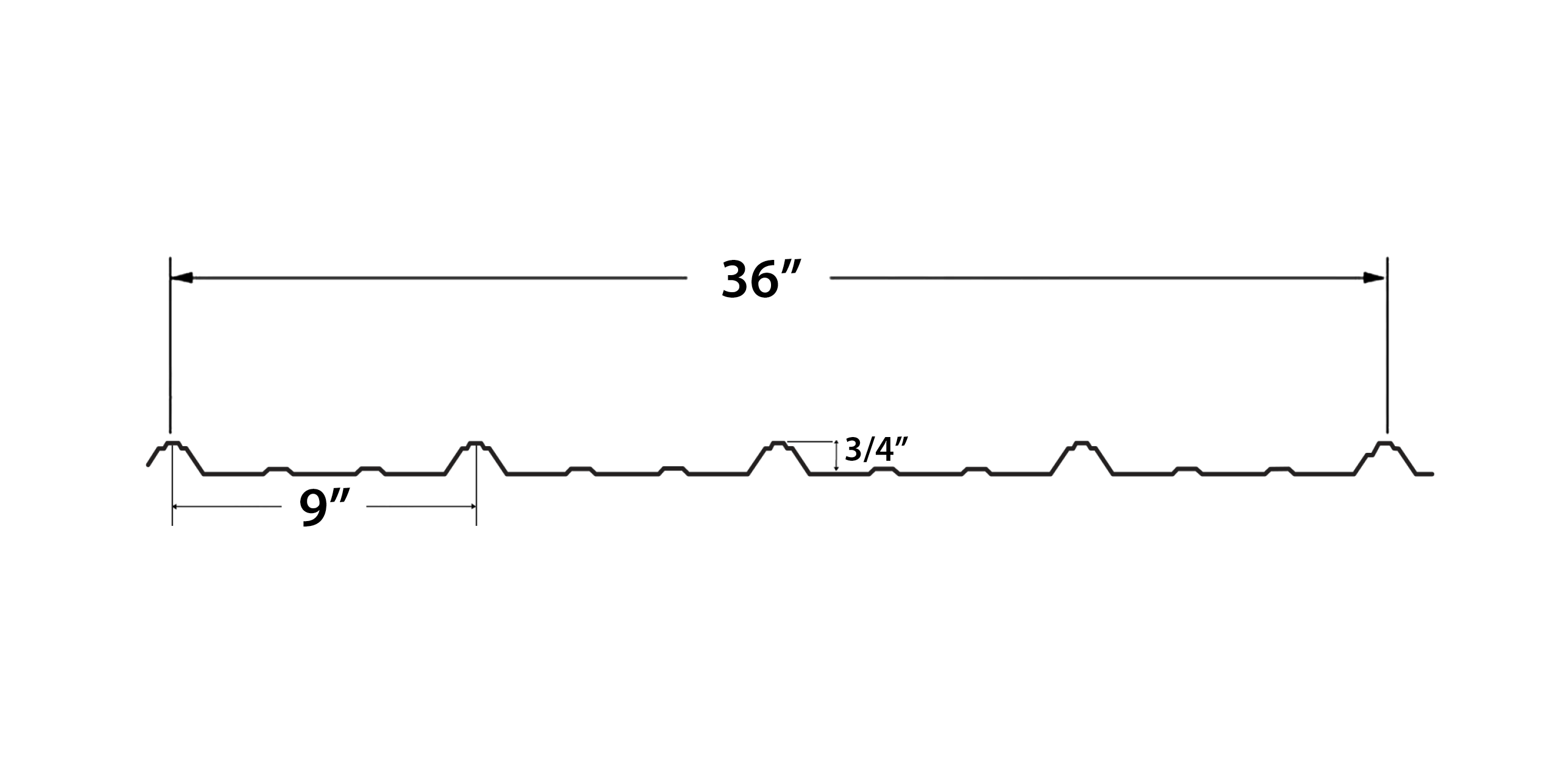

Dimensions

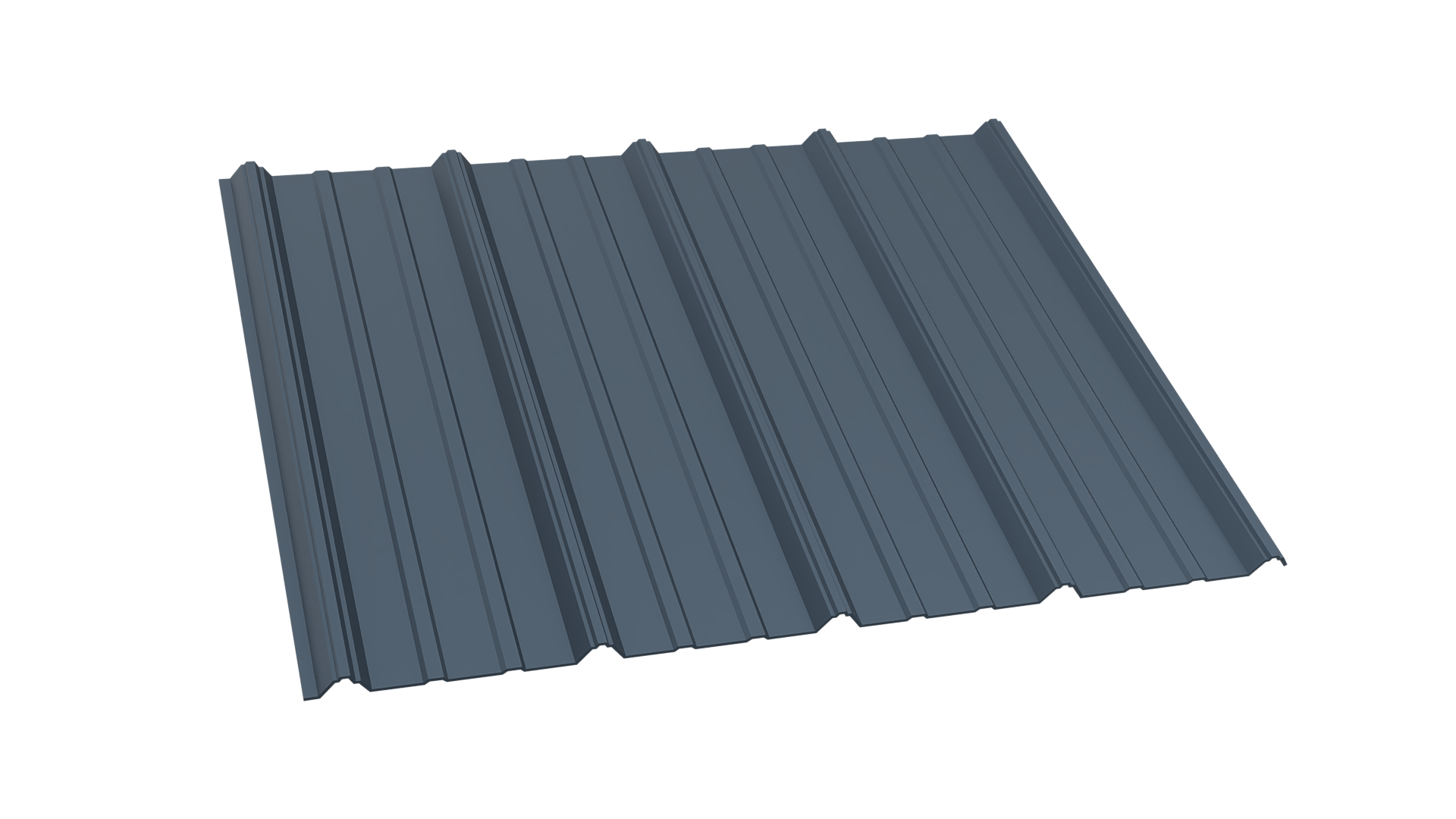

ag-panel-gun-metal-gray View Panel Dimensions Installation Details

Material Type: Ag Panel

Rib Distance (Pitch): 9"

Rib Height: 3/4"

Panel Length: 1' to 52'

Coverage for Roof and Wall Application: 36"

Product Data

Material Type: Ag Panel

Available Gauges: 24, 26, 29

Substrate: AZ50 Minimum (Galvalume®/Zincalume®)

Fasteners: Exposed Fasteners

Recommended Minimum Roof Slope: 3/12

Installation
Can be installed over an open purlin system or a solid substrate.
Use bead mastic on the overlap if used for a roofing application.

Applications
Residential
Commercial
Agricultural
Interior

Product Documents

Trim And Flashings

CAD Details

Care & Maintenance

Class A Fire Rating

Fastener Placement

Field Cutting & Touch Up Paint

Installation Guide

Paint Warranties

Product Data Sheets (Coming Soon)

Product Specifications (Coming Soon)

Solar Reflectivity Index

Testing & Approvals (Coming Soon)

Accessories

Exposed Fastener Metal Siding & Roofing Panels

Ag Panel Metal Roofing

Ag Panel, short for “Agricultural Panel,” is one of the most versatile and cost-effective metal panels used for roofing and siding applications. Designed with durability and practicality in mind, Ag Panels feature a traditional 36” coverage width with exposed fasteners and a classic ribbed profile that provides both structural strength and a timeless look.

Ideal for agricultural, residential, and light commercial projects, Ag Panels are commonly used on barns, workshops, garages, and even modern homes seeking a rustic aesthetic. They are manufactured from high-quality steel and coated with long-lasting finishes that resist rust, corrosion, and fading — ensuring years of reliable performance with minimal maintenance.

Quick Links

Color Charts

Installation Guide

Product Data Sheets (Coming Soon)

Trim & Flashings

Accessories

Standard Colors (PVDF)

Colors represented on this chart may not exactly match actual material. All colors should be verified using actual metal samples.

† This material is batch sensitive and directional. Do not mix batches or coil lots. Premium color. Slightly higher prices.

Click the dropdown menu to explore more color options for this panel type.

Download Color Card



Hide List of Colors Show Colors as List

  • Regal Blue Image
  • Royal Blue Image
  • Slate Blue Image
  • Regal Red Image
  • Colonial Red Image
  • Terra Cotta Image
  • Classic Green Image
  • Matte Black Image
  • Dark Bronze Image
  • Medium Bronze Image
  • Mansard Brown Image
  • Burnished Slate Image
  • Silver Metallic† Image
  • Zinc Metallic† Image
  • Charcoal Gray Image
  • Gun Metal Gray Image
  • Slate Gray Image
  • Dolphin Gray Image
  • Dove Gray Image
  • Ash Gray Image
  • Copper Penny† Image
  • Desert Tan Image
  • Champagne† Image
  • Sandstone Image
  • Almond Image
  • Bone White Image
  • Regal White Image
Image View Color Page
Image View Color Page
Image View Color Page
Image View Color Page
Image View Color Page
Image View Color Page
Image View Color Page
Image View Color Page
Image View Color Page
Image View Color Page
Image View Color Page
Image View Color Page
Image View Color Page
Image View Color Page
Image View Color Page
Image View Color Page
Image View Color Page
Image View Color Page
Image View Color Page
Image View Color Page
Image View Color Page
Image View Color Page
Image View Color Page
Image View Color Page
Image View Color Page
Image View Color Page
Image View Color Page

Matte Colors

Colors represented on this chart may not exactly match actual material. All colors should be verified using actual metal samples.

*Minimum Order of 5,000 sq. ft.

Click the dropdown menu to explore more color options for this panel type.

Download Color Card



Hide List of Colors Show Colors as List

  • Matte Regal White* Image
  • Matte Sandstone* Image
  • Matte Desert Tan* Image
  • Matte Slate Gray* Image
  • Matte Musket Gray Image
  • Matte Zinc Metallic Image
  • Matte Patina Image
  • Matte Charcoal Gray Image
  • Matte Burnished Slate* Image
  • Matte Mansard Brown* Image
  • Matte Medium Bronze* Image
  • Matte Dark Bronze Image
  • Matte Midnight Black Image
  • Matte Black Image
  • Matte Classic Green* Image
  • Matte Colonial Red* Image
  • Matte Orange* Image
Image View Color Page
Image View Color Page
Image View Color Page
Image View Color Page
Image View Color Page
Image View Color Page
Image View Color Page
Image View Color Page
Image View Color Page
Image View Color Page
Image View Color Page
Image View Color Page
Image View Color Page
Image View Color Page
Image View Color Page
Image View Color Page
Image View Color Page

SMP Paint Finish

Colors represented on this chart may not exactly match actual material. All colors should be verified using actual metal samples.

Click the dropdown menu to explore more color options for this panel type.

Download Color Card



Hide List of Colors Show Colors as List

  • Polar White Image
  • Light Stone Image
  • Sahara Tan Image
  • Desert Beige Image
  • Light Gray Image
  • Koko Brown Image
  • Emerald Green Image
  • Country Red Image
  • Steel Gray Image
  • Antique Rustic® Image
Image View Color Page
Image View Color Page
Image View Color Page
Image View Color Page
Image View Color Page
Image View Color Page
Image View Color Page
Image View Color Page
Image View Color Page
Image View Color Page

Special Order Colors (500 Sq. Ft. Minimum)

Colors represented on this chart may not exactly match actual material. All colors should be verified using actual metal samples.

Click the dropdown menu to explore more color options for this panel type.

Download Color Card



Hide List of Colors Show Colors as List

  • Solar White Image
  • Stone White Image
  • Surrey Beige Image
  • Sierra Tan Image
  • Aged Patina Image
  • Sage Green Image
  • Hemlock Green Image
  • Hartford Green Image
  • Evergreen Image
  • Burgundy Image
  • Pre-Weathered Galvalume Image
Image View Color Page
Image View Color Page
Image View Color Page
Image View Color Page
Image View Color Page
Image View Color Page
Image View Color Page
Image View Color Page
Image View Color Page
Image View Color Page
Image View Color Page

Additional Finishes

Colors represented on this chart may not exactly match actual material. All colors should be verified using actual metal samples.

Click the dropdown menu to explore more color options for this panel type.

Download Color Card



Hide List of Colors Show Colors as List

  • Galvalume®/ Zincalume® Image
  • Galvanized G90 Image
  • A606-4 (aka Corten®) Image
  • Bare Cold Rolled Image
  • Bonderized Image
  • Black Phosphate® Image
  • Rezibond® Image
  • Copper Image
  • Stainless Steel Image
  • Aluminum - Mill Finish Image
Image View Color Page
Image View Color Page
Image View Color Page
Image View Color Page
Image View Color Page
Image View Color Page
Image View Color Page
Image View Color Page
Image View Color Page
Image View Available Panels

Black Colors

Colors represented on this chart may not exactly match actual material. All colors should be verified using actual metal samples.

Click the dropdown menu to explore more color options for this panel type.

Download Color Card



Hide List of Colors Show Colors as List

  • Black Zinc Matte® Image
  • Matte Black Image
  • Matte Midnight Black Image
  • Dark Bronze Image
  • Matte Dark Bronze Image
  • Medium Bronze Image
  • Speckled Blackened Rust® Image
  • Vintage® Image
  • Burnt Wood® Image
Image View Color Page
Image View Color Page
Image View Color Page
Image View Color Page
Image View Color Page
Image View Color Page
Image View Color Page
Image View Color Page
Image View Color Page

Copper Colors

Colors represented on this chart may not exactly match actual material. All colors should be verified using actual metal samples.

† This material is batch sensitive and directional. Do not mix batches or coil lots. Premium color. Slightly higher prices.

Click the dropdown menu to explore more color options for this panel type.

Download Color Card



Hide List of Colors Show Colors as List

  • Speckled Copper® Image
  • Speckled Blue Copper® Image
  • Green Copper® Image
  • Aged Copper® Image
  • Black Copper Matte® Image
  • Speckled Blackened Copper® Image
  • Burnished Slate Image
  • Copper Penny† Image
Image View Color Page
Image View Color Page
Image View Color Page
Image View Color Page
Image View Color Page
Image View Color Page
Image View Color Page
Image View Color Page

Gray Colors

Colors represented on this chart may not exactly match actual material. All colors should be verified using actual metal samples.

† This material is batch sensitive and directional. Do not mix batches or coil lots. Premium color. Slightly higher prices.

* Not A Paint Finish

** Minimum Order of 5,000 sq. ft.

Click the dropdown menu to explore more color options for this panel type.

Download Color Card



Hide List of Colors Show Colors as List

  • Burnished Slate Image
  • Charcoal Gray Image
  • Gun Metal Gray Image
  • Patina Image
  • Slate Gray Image
  • Dolphin Gray Image
  • Dove Gray Image
  • Ash Gray Image
  • Matte Burnished Slate** Image
  • Matte Charcoal Gray Image
  • Matte Patina Image
  • Matte Zinc Metallic Image
  • Matte Musket Gray Image
  • Matte Slate Gray** Image
  • Silver Metallic† Image
  • Zinc Metallic† Image
  • Vintage® Image
  • Black Zinc Matte® Image
  • Silver Zinc Matte® Image
  • Blue Zinc Matte® Image
  • Bonder-Paint® Light Image
  • Bonder-Paint® Dark Image
  • Bonderized* Image
Image View Color Page
Image View Color Page
Image View Color Page
Image View Color Page
Image View Color Page
Image View Color Page
Image View Color Page
Image View Color Page
Image View Color Page
Image View Color Page
Image View Color Page
Image View Color Page
Image View Color Page
Image View Color Page
Image View Color Page
Image View Color Page
Image View Color Page
Image View Color Page
Image View Color Page
Image View Color Page
Image View Color Page
Image View Color Page
Image View Color Page

Rusted Colors

Colors represented on this chart may not exactly match actual material. All colors should be verified using actual metal samples.

Click the dropdown menu to explore more color options for this panel type.

Download Color Card



Hide List of Colors Show Colors as List

  • Speckled Rust® Image
  • Fresh Rust® Image
  • Corten AZP Raw® Image
  • Rustic Rawhide® Image
  • Iron Rust® Image
  • Antique Rustic® Image
  • Reclaimed Metal Rust® Image
  • Speckled Galvanized Rust® Image
  • Speckled Blackened Copper® Image
Image View Color Page
Image View Color Page
Image View Color Page
Image View Available Panels
Image View Color Page
Image View Color Page
Image View Color Page
Image View Color Page
Image View Color Page

Zinc Series

Colors represented on this chart may not exactly match actual material. All colors should be verified using actual metal samples.

† This material is batch sensitive and directional. Do not mix batches or coil lots. Premium color. Slightly higher prices.

Click the dropdown menu to explore more color options for this panel type.

Download Color Card



Hide List of Colors Show Colors as List

  • Gray Zinc Matte® Image
  • Silver Zinc Matte® Image
  • Blue Zinc Matte® Image
  • Black Zinc Matte® Image
  • Vintage® Image
  • Zinc Patina® Image
  • Zinc Metallic†® Image
  • Matte Musket Gray® Image
  • Bonder-Paint® Light Image
  • Bonder-Paint® Dark Image
  • Bonderized®* Image
  • Rezibond®* Image
Image View Color Page
Image View Color Page
Image View Color Page
Image View Color Page
Image View Color Page
Image View Color Page
Image View Color Page
Image View Color Page
Image View Color Page
Image View Color Page
Image View Color Page
Image View Color Page

Aluminum (Standard Colors)

Colors represented on this chart may not exactly match actual material. All colors should be verified using actual metal samples.

Click the dropdown menu to explore more color options for this panel type.

Download Color Card



Hide List of Colors Show Colors as List

  • Aluminum - Mill Finish Image
  • Matte Black Image
  • Dark Bronze Image
  • Charcoal Gray Image
  • Almond Image
  • Regal White Image
  • Fresh Rust® Image
Image View Available Panels
Image View Available Panels
Image View Available Panels
Image View Available Panels
Image View Available Panels
Image View Available Panels
Image View Available Panels

Aluminum (Special Order Colors)

Colors represented on this chart may not exactly match actual material. All colors should be verified using actual metal samples.

† This material is batch sensitive and directional. Do not mix batches or coil lots. Premium color. Slightly higher prices.

Click the dropdown menu to explore more color options for this panel type.

Download Color Card



Hide List of Colors Show Colors as List

  • Regal Blue Image
  • Slate Blue Image
  • Regal Red Image
  • Colonial Red Image
  • Terra Cotta Image
  • Aged Patina Image
  • Evergreen Image
  • Hartford Green Image
  • Medium Bronze Image
  • Mansard Brown Image
  • Slate Gray Image
  • Dove Gray Image
  • Ash Gray Image
  • Pre-Weathered Galvalume Image
  • Sierra Tan Image
  • Surrey Beige Image
  • Sandstone Image
  • Solar White Image
  • Stone White Image
  • Copper Metallic† Image
  • Silver Metallic† Image
Image View Available Panels
Image View Available Panels
Image View Available Panels
Image View Available Panels
Image View Available Panels
Image View Available Panels
Image View Available Panels
Image View Available Panels
Image View Available Panels
Image View Available Panels
Image View Available Panels
Image View Available Panels
Image View Available Panels
Image View Available Panels
Image View Available Panels
Image View Available Panels
Image View Available Panels
Image View Available Panels
Image View Available Panels
Image View Available Panels
Image View Available Panels

Copper (20oz/16oz)

Real Copper

Click the dropdown menu to explore more color options for this panel type.

Download Color Card





Hide List of Colors Show Colors as List

  • Copper Image
Image View Color Page

Ordering Information

matte black corrugated roof walls

Our goal is to earn your trust and provide excellent service at a factory direct price. Check out our Google reviews.

When you place your order with Western States Metal Roofing you can expect the following:

  • Made to Order Panels - We cut your metal roofing and metal siding panels to the exact lengths needed.
  • Fast Turnaround - 1 to 3 week lead time.
  • Shipping Convenience - Inexpensive delivery throughout the USA, Canada, and Mexico
  • Knowledgeable Sales Associates - Helpful and friendly sales associates that will answer all of your questions.

get a quote

matte black corrugated roof walls

What are the key benefits of Ag Panels?

JUST IN CASE YOU FORGOT ABOUT THESE

ITEMS THAT YOU MAY NEED


Roofing Underlayment

Is your metal roofing being installed over wood? If so, you will need roofing underlayment.

Synthetic underlayment provides an extra barrier of protection from water penetration and will protect your home from the elements.

  • Sharkskin Comp
  • Sharkskin Ultra
  • Sharkskin Ultra SA

Learn More


Accessories

  • Fasteners/Clips
  • Foam Closures
  • Fiberglass Panels
  • Galvanized Square Tube
  • Trim & Flashings
  • Snow Retention & Solar Systems
  • Much More

Learn More


Metal Purlins and Channel

C Purlins, Z Purlins, and Channel

  • Galvanized
  • Primed - Red
  • 4” to 12” Deep
  • 14 Gauge - In Stock
  • Custom Gauges Upon Request

Learn More

Do You Have Questions about metal roofing? We have the answers.

The Metal Roofing Learning Center

It's a great resource for contractors, architects, and homeowners.

Easy to navigate learning center with videos and blogs that will answer your questions.

  • Installation Videos
  • Panel Comparisons
  • Cost
  • Much More

visit now

metal-roofing-learning-center
Articles from the metal roofing learning center

Which Metal Roofing Panel Is Right For You?


A Guide To PBR Panel

Are you looking for an affordable metal panel for your home?

  • What is R-Panel?
  • R-Panel v. PBR Panel
  • R-Panel v. U-Panel
  • R-Panel Cost
  • R-Panel Installation

Learn More


Corrugated Metal Roofing v. R-Panel (PBR)

Are you deciding between corrugated or R-panel for your metal roof?

  • Pros And Cons
  • Cost
  • Performance
  • Installation

Learn More


Standing Seam Vs. Exposed Fastener Panels

The first step when choosing a metal roofing panel is to decide whether you will use an exposed fastener panel or a standing seam panel.

This video provides a head to head comparison of both panel systems. By the end of this video you will know which panel system is best for your roof.

Watch Now


What Gauge Should I Use For My Metal Roof?

Trying to determine the correct gauge for your metal roof? In this video we cover:

  • What Is A Roof Gauge?
  • How The Paint Finish And Color Can Affect The Gauge
  • Gauge Options
  • Installation Method: Wood Substrate Vs Metal Purlins

Watch Now


What's The Best Paint System? SMP Paint Vs. PVDF

Deciding on a paint finish for your metal roof or wall? We compare SMP and PVDF paint systems.

  • Chemical Structure
  • Fading and Chalking
  • Abrasion Resistance
  • Warranty
  • Cost

Learn More


5 Tips To Pick The Best Metal Roofing Color

  1. Choose The Correct Panel
  2. PVDF Vs SMP Paint Systems
  3. Complement The Features Of Your Property
  4. Energy Efficient Cool Colors
  5. Color Selection Tools

Learn More

Let your imagination run wild!

COLOR & PRODUCT VISUALIZER

Choose Different Textures, Colors, Finishes, and Panel Types On Your Home Before You Decide.

VISUALIZE YOUR BUILDING
