Mechanically Seamed Standing Seam Metal Roofing Panels

Mechanically Seamed Metal Roofing Panels are a popular type of standing seam metal roofing panel. Ideal for low-slope commercial and residential roofs. This is the most weather-tight metal roofing panel, but it's also the most expensive.

3D Textures/E-Samples®

Is Mechanically Seamed Panels Right For You?
Mechanically Seamed Clips: Everything That You Need To Know

Need Roofing Underlayment?

Click here

Mechanically Seamed Standing Seam Metal Roofing

Types of Mechanically Seamed Metal Roofing Panels

Mechanically seamed panels are a high-performance roofing solution designed for maximum strength, weather resistance, and longevity. Available in 1", 1.5", and 2" seam heights, the MS series is ideal for both commercial and residential projects that demand superior protection and modern architectural appeal.

https://6069238.fs1.hubspotusercontent-na1.net/hubfs/6069238/images/galleries/gun-metal-gray/gun-metal-MS2.jpg

MS1® Mechanically Seamed - 1" Deep

This is the most weather-tight style of standing seam metal roofing. It's ideal for very low sloped roofs with a pitch as low as 1":12".

  • 1” mechanically seamed rib height

  • It's a difficult panel to install and is rarely installed by DIY roofers.

See Panel Details

https://6069238.fs1.hubspotusercontent-na1.net/hubfs/6069238/images/galleries/gun-metal-gray/gun-metal-MS2.jpg

MS1.5® Mechanically Seamed - 1.5" Deep

This is the most weather-tight style of standing seam metal roofing. It's ideal for very low sloped roofs with a pitch as low as  1":12".

  • 1.5” mechanically seamed rib height

  • It's a difficult panel to install and is rarely installed by DIY roofers.



See Panel Details

https://6069238.fs1.hubspotusercontent-na1.net/hubfs/6069238/images/galleries/gun-metal-gray/gun-metal-MS2.jpg

MS2® Mechanically Seamed - 2" Deep

This is the most weather-tight style of standing seam metal roofing. It's ideal for very low sloped roofs with a pitch as low as 1":12".

  • 2” mechanically seamed rib height

  • It's a difficult panel to install and is rarely installed by DIY roofers.

See Panel Details

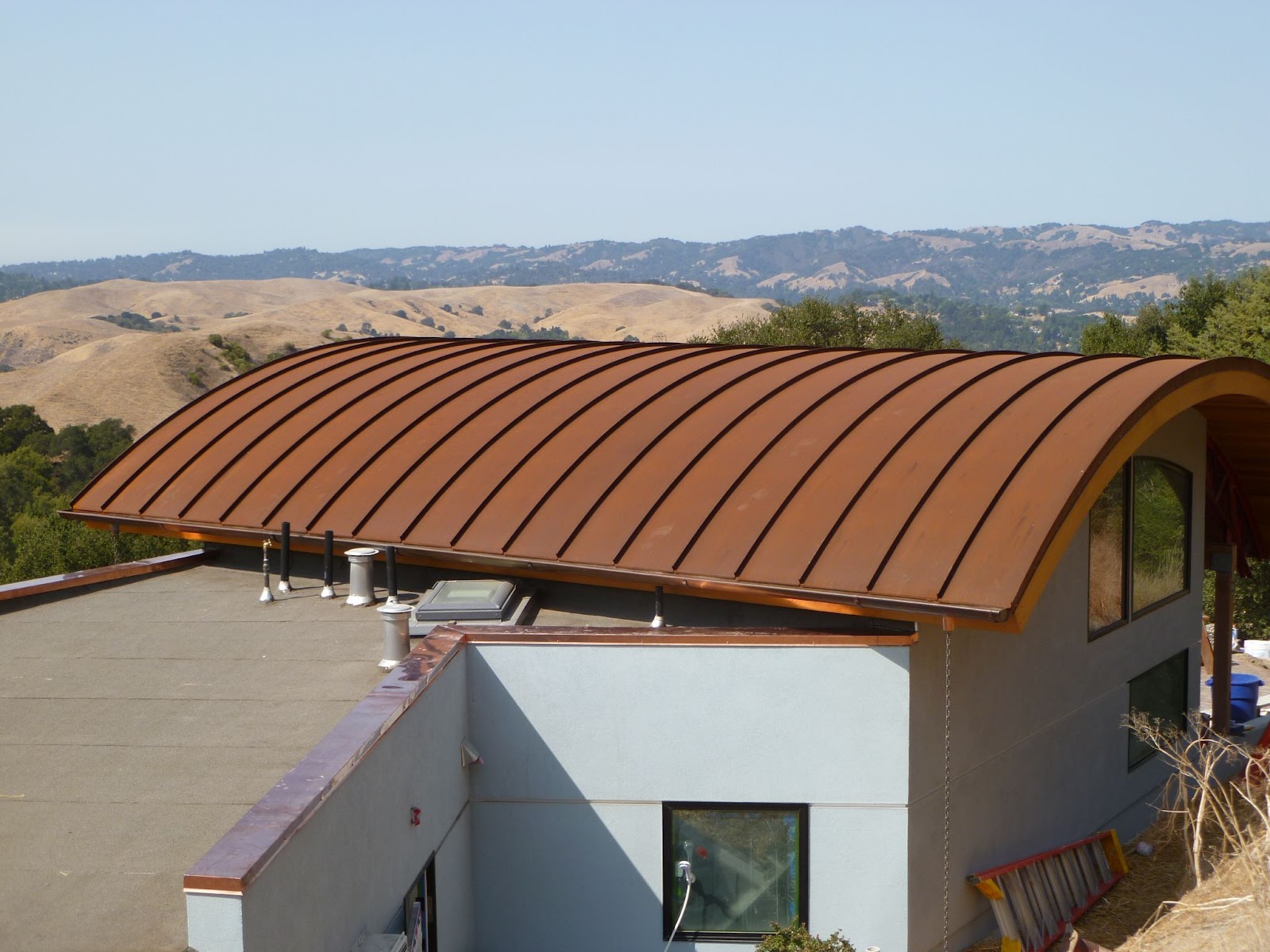

Curved Metal Roofing Panels

Curved Standing Seam Metal Roofing for Bold Architectural Design

When architecture calls for curves and bold forms, our curved metal panel solutions deliver both aesthetics and durability. At Western States Metal Roofing, we bring advanced metal-forming technology together with premium standing seam systems to turn design vision into reality.

  • Compatible with our mechanically seamed standing seam profiles such as MS1 and MS1.5
  • Available materials include aluminum, copper, and steel—so you can match your design aesthetic and project requirements.
  • Panels may be shipped throughout the U.S.

See More Curve Panels

corten standing seam curved metal roof
Standing Seam MS2® FAQ

Mechanically Seamed Frequently Asked Questions

At Western States Metal Roofing, we're often asked a number of questions related to mechanically seamed MS2 metal.

What is Pre-Notching Standing Seam?

pre-notched-standing-seam-thumb

To save you time, money, and labor, we now have pre-notched standing seam panels available for purchase:

The cost of pre-notching will be less than the labor cost of manually notching the panels on the job-site.

  • 24 Gauge & 26 Gauge = $2.50 Per Panel
  • 22 Gauge = $4.50 Per Panel

LEARN MORE ABOUT PRE-NOTCHING

Watch Video Now

pre-notched-standing-seam-thumb

How much does standing seam metal roofing cost?

standing-seam-cost

A standing seam metal roofing system will cost about twice as much as corrugated metal roofing.

  • If you purchase from a standing seam metal roofing manufacturer, the panels will cost $2 to $4 per sq. ft.
  • The total price including materials and installation will cost $8 to $14 per sq. ft

Watch Video Now

standing-seam-cost

What are striations, stiffening ribs, and pencil ribs?

striations-thumb

Adding structure to your panel is a great way to minimize oil canning. In this video we discuss clip relief, striations, stiffening ribs, and pencil ribs.

Watch Video Now

striations-thumb

What gauge is standing seam metal roofing?

best-metal-roofing-gauge

The vast majority of standing seam metal roofing jobs are 24 gauge steel. It’s a premium roofing system that’s expected to last 40 plus years. The components must be designed to work as a whole. Standing seam roofing panels are the most expensive panels and use the best paint system. It wouldn’t make sense to use a light gauge steel for minimal savings and lesser performance.

Watch Video Now

best-metal-roofing-gauge

What is the difference between standing seam vs corrugated metal roofs?

standing-seam-vs-exposed-fastener-video

The biggest difference between these two classic metal roofing systems is the method of attachment. Standing seam panels are a concealed fastener system which means the fasteners don’t penetrate the face of the panel during installation and they’re not visible. Corrugated panels are an exposed fastener panel, meaning that you need to drill a screw hole through the panel to fasten it to the structure.

Watch Video Now

standing-seam-vs-exposed-fastener-video

What is oil canning on a metal roof?

stiffening-ribs-striations-thumbnail

Have you ever seen a metal roofing material that looked like it was wrinkled? This is known as oil canning and it's common on standing seam metal roofs.

Oil canning on a standing seam metal panel is an aesthetic issue only. Striations, stiffening ribs, and clip relief can disguise the appearance of oil canning on your metal roofing panels.

Watch Video Now

stiffening-ribs-striations-thumbnail

What Is A Standing Seam Metal Roof?

Standing seam metal roofing has a flat area in the middle and raised vertical seams at both ends. It's a concealed fastener system, meaning that the fasteners are not visible or exposed to the weather. It's water-tight and long lasting, but it's also an expensive panel system.

What Is Snap Lock Standing Seam Metal Roofing?

Snap Lock is a concealed fastener standing seam metal roofing that has a male and female leg that snaps together. It's available as a clip fastened or nail flange fastened panel.

How Do You Install A Standing Seam Roof System?

Standing Seam Metal Roof Installation Clip Attachment-4

A metal roof installation for standing seam panels is a detailed process. To help make it easier, we have created a video series that goes over how to do each step of a standing seam roof installation to guide you through the process.

GO TO STANDING SEAM INSTALLATION VIDEO PAGE

Standing Seam Metal Roof Installation Clip Attachment-4
