T-Groove-NR: Interior & Exterior Metal Wall Panels

T-Groove®-NR is an interior metal wall panel or an exterior metal wall panel. It can also be used for ceilings, fascia, and soffits. There is no reveal between the panel side lap.





Get A Quote Interactive Color Chart

T-Groove Pros & Cons
How To Install T-Groove® Metal Siding Panels

Find out what your product would look like.

View Product Visualizer

EXTERIOR & INTERIOR METAL WALL PANELS, CEILINGS, FASCIA, AND SOFFITS

T-Groove®-NR is a 1" deep metal wall panel that has concealed fasteners. The "NR" stands for no reveal which means there's there's a minimal gap between the panel side laps. This creates the appearance of a flat piece of metal. Unlike a flat piece of sheet metal, T-Groove has an installation guide that covers all of your common trim and flashing details.

View Availability & Dimensions Chart

T-Groove® - NR

Dimensions

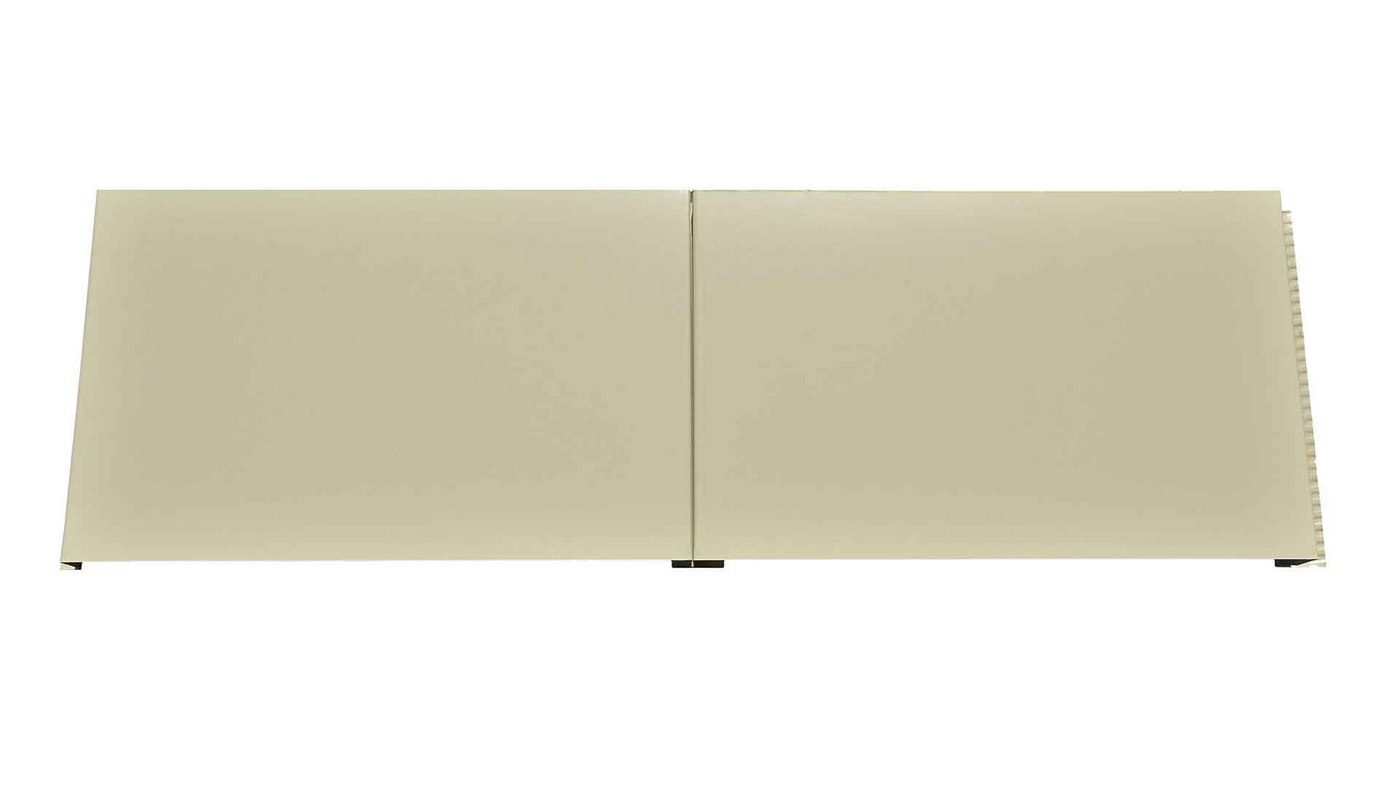

western-reveal-no-reveal-metal-siding-panels Download Chart

Material Type:
T-Groove® - NR
Metal Fascia, Soffit, And Wall Panel

Available Gauges: 22, 24

Fastening Type: Concealed

Overall Coverage: 12"-20”



Product Data

Standard Face Sizes: 12", 14", 16", 18”, 20"

Custom Face Sizes: 13", 15", 17", 19”

Panel Length: 1' to 45' max

Reveal: None

Rib Height: 1"

Substrate: AZ50 Minimum (AKA Galvalume®/Zincalume®)

Stiffening Ribs or Pencil Ribs: Available Upon Request

Single or Double Vent Strips: Available Upon Request

Installation: Installation Over A Solid Substrate (Vertical or Horizontal)

Applications: Residential, Commercial, Agricultural, Interior

Product Documents

Trim And Flashings

Installation Guide

Panel Sizes/Line Drawings

CAD Details

Care & Maintenance

Field Cutting & Touch Up Paint

Paint Warranties

Product Data Sheets

Product Specifications

Solar Reflectivity Index

Stiffening Ribs & Vent Strips

Availability Chart

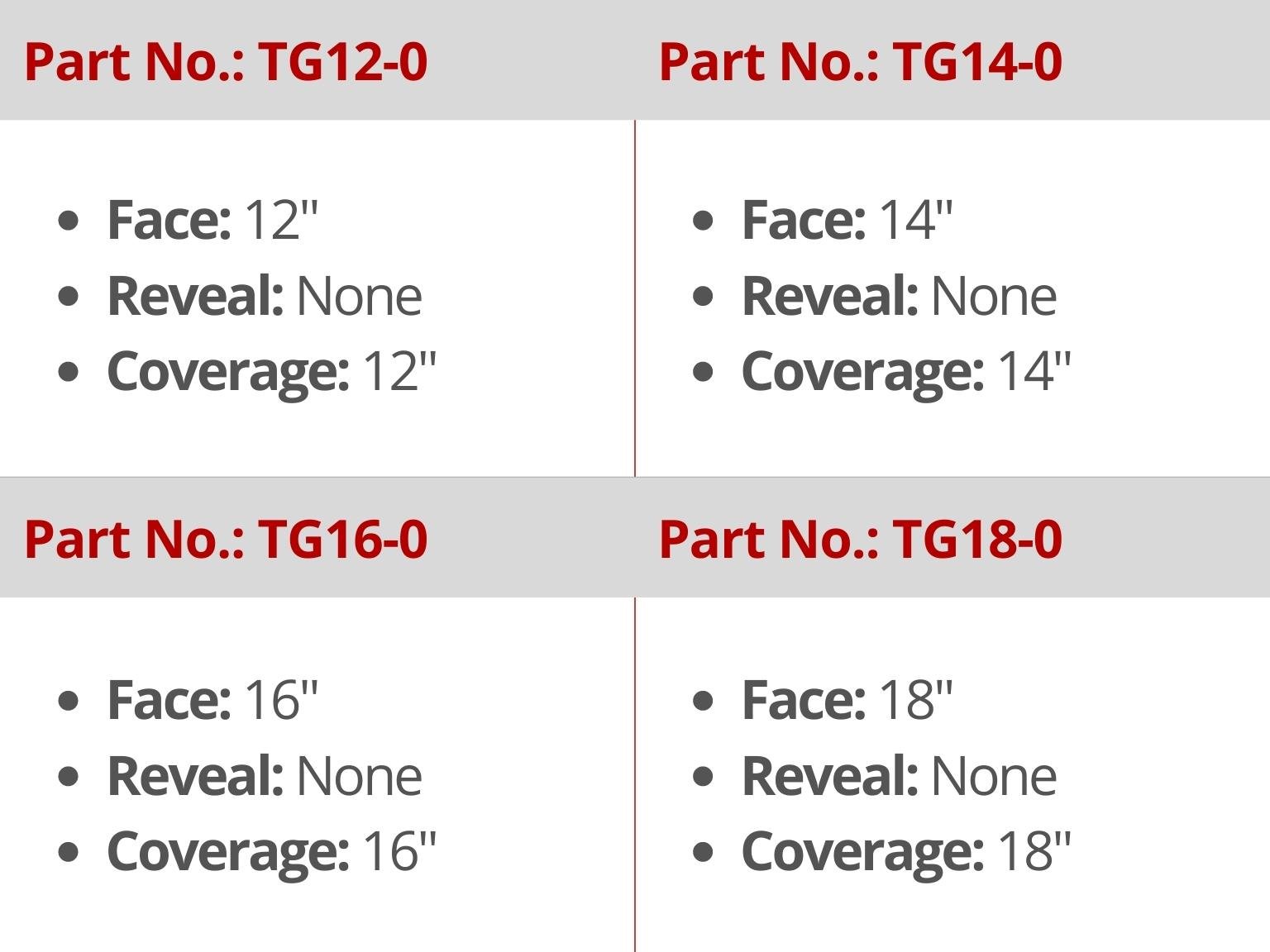

T-Groove - No Reveal Availability & Dimensions

Part #
Dimensions
Part Number
Face
Reveal
Coverage
TG12-0
12"
None
12"
TG14-0
14"
None
14"
TG16-0
16"
None
16"
TG18-0
18"
None
18"
  Swipe for more
