T-Groove®-1.0: Metal Wall Panels With A One Inch Reveal

T-Groove®-1.0 is a metal wall panel that's also used for ceilings, fascia, and soffits. There is a 1" gap or reveal between the panel side laps. The reveal adds depth and texture to the panels.

Get A Quote Interactive Color Chart

T-Groove Pros & Cons
How To Install T-Groove® Metal Siding Panels

Find out what your product would look like.

View Product Visualizer

METAL WALL PANELS, CEILINGS, FASCIA, AND SOFFITS

T-Groove®-1.0 is a one inch deep metal wall panel that has concealed fasteners. The "1.0" stands for 1" reveal which means there's there's a 1" gap between the panel side laps. The reveal gives the panels depth and it looks similar to board and batten panels.

T-Groove® - 1.0

Dimensions

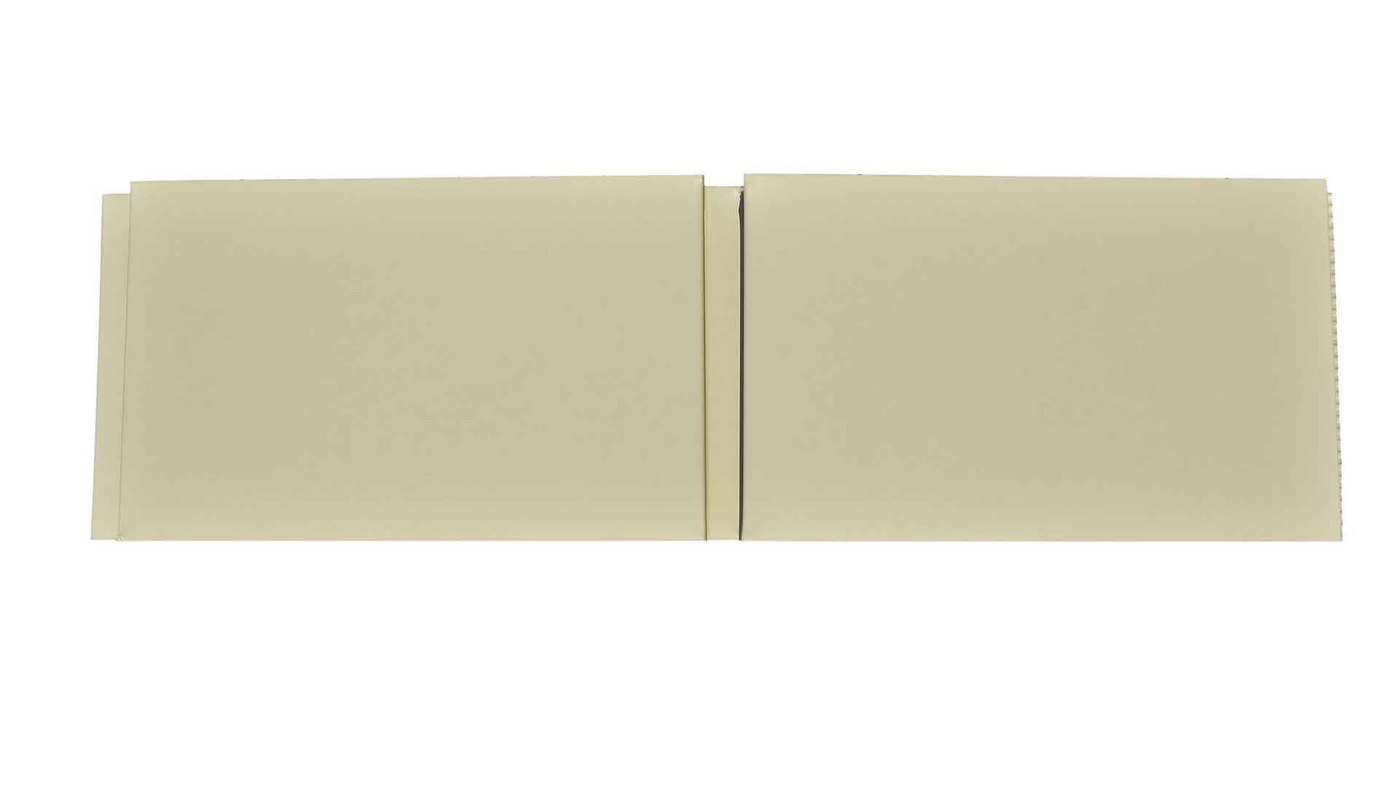

western-reveal-one-inch-metal-siding-panels Download Dimensions

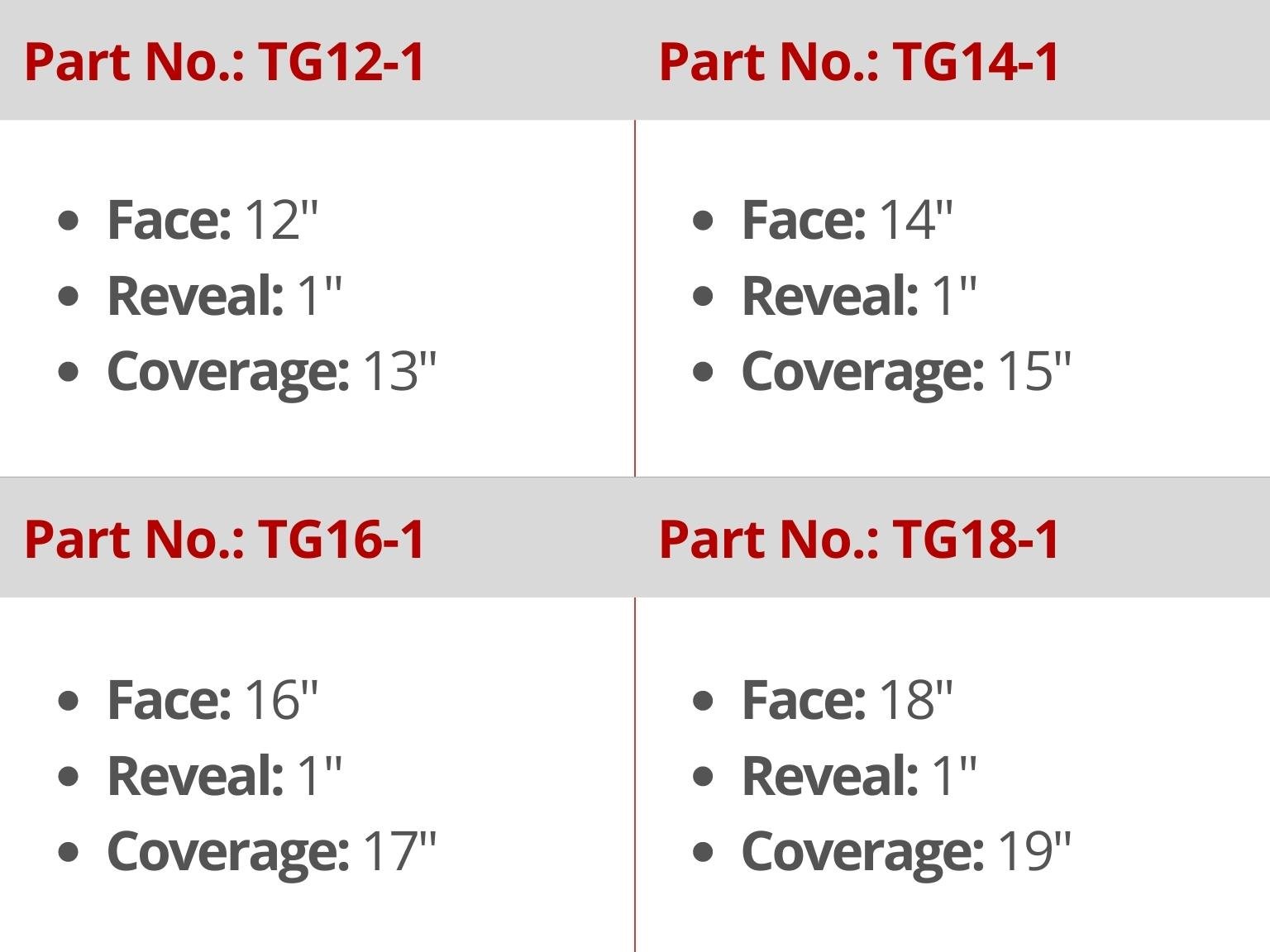

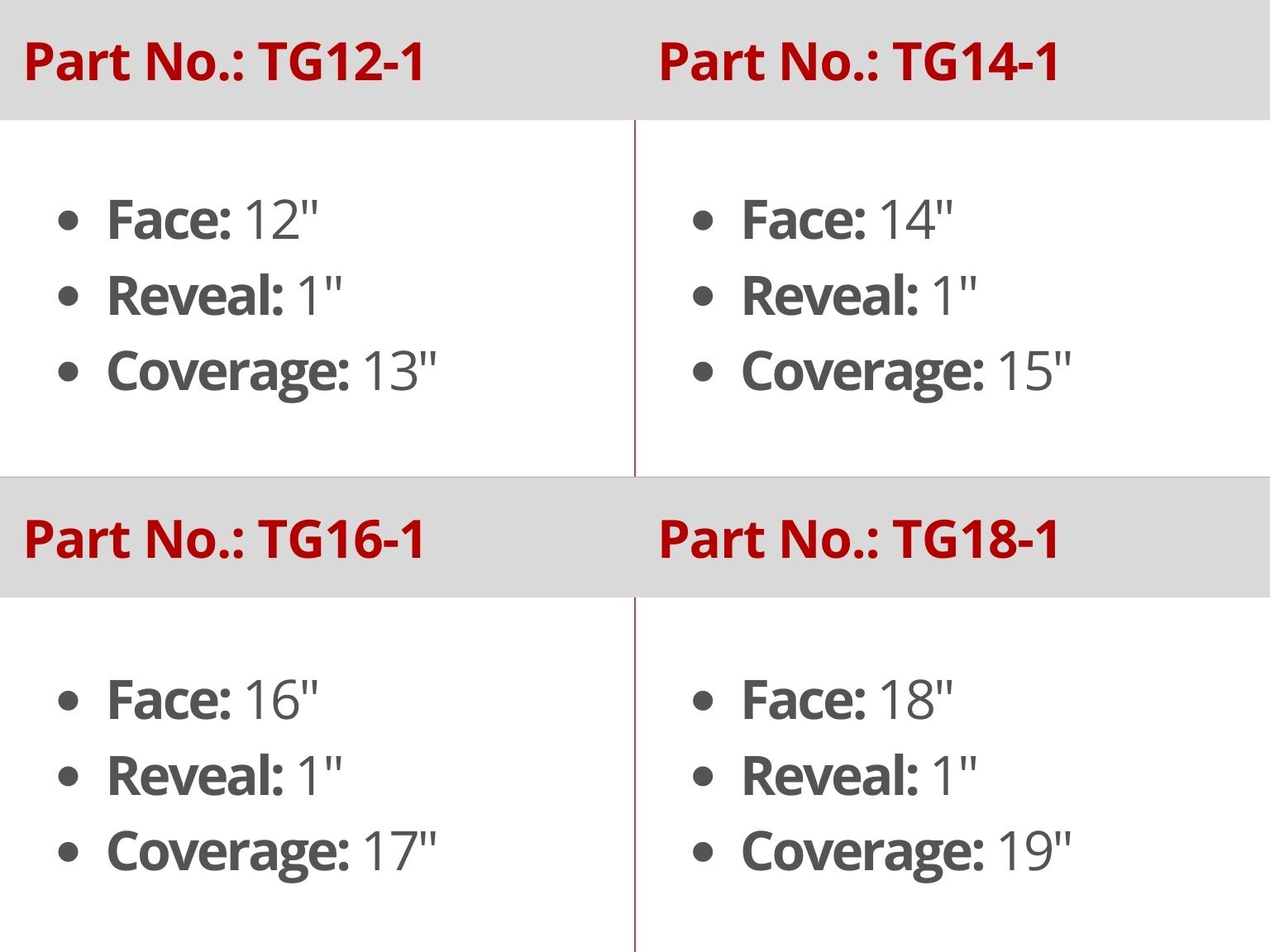

t-groove-part-numbers-1



Product Data

Material Type:
T-Groove® - 1.0
Metal Fascia, Soffit, And Wall Panel

Available Gauges: 22, 24

Fastening Type: Concealed

Overall Coverage: 12"-20”

Standard Face Sizes: 12", 14", 16", 18”, 20"

Custom Face Sizes: 13", 15", 17", 19”

Panel Length: 1' to 45' max

Reveal: 1"

Rib Height: 1"

Substrate: AZ50 Minimum (AKA Galvalume®/Zincalume®)

Stiffening Ribs or Pencil Ribs: Available Upon Request

Single or Double Vent Strips: Available Upon Request

Installation: Installation Over A Solid Substrate (Vertical or Horizontal)

Applications: Residential, Commercial, Agricultural, Interior

Product Documents

Trim And Flashings

Installation Guide

CAD Details

Panel Sizes/Line Drawings

Care & Maintenance

Field Cutting & Touch Up Paint

Paint Warranties

Product Data Sheets

Product Specifications

Solar Reflectivity Index

Stiffening Ribs & Vent Strips
