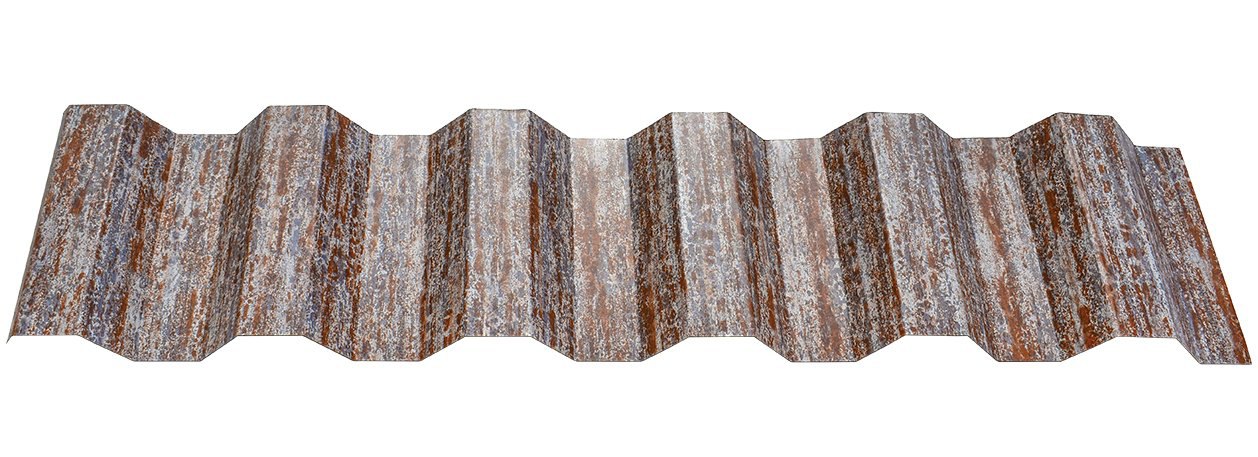

Material Type: Western Rib® Metal Roofing and Siding Panels
Rib Distance (Pitch): 7.2"
Rib Height: 1.5"
Available Gauges: 24
Substrate: AZ50 Minimum (Galvalume®/Zincalume®)
PVDF Resin Based
Panel Length: 1' to 52'
Recommended Minimum Roof Slope: 1/12
Coverage for Roof and Wall Application: 36"
Can be installed over an open purlin system or a solid substrate.
Use bead mastic on the overlap if used for a roofing application.
