Western Reveal® Rezibond - 1.0

Metal Fascia, Soffit, And Wall Panels

This metal wall panel is designed for interior and exterior applications. It has a one inch gap between each panel lap that adds depth and texture. You can mix and match the distance between the panel laps from no reveal, 1", 2", and 3" reveal.



Get a quote Free metal samples

rezibond-western-reveal-01

Find out what your product would look like.

View Product Visualizer

Western Reveal®-1.0

Concealed Fastener Metal Wall Panels

Make the interior or exterior walls of your building stand out. These metal wall panels will add texture to an otherwise plain wall. The modern design will attract attention and catch the eye, but will also blend in with the existing architecture.

Western Reveal is stronger and easier to install than using flat sheets. When using flats sheets on a job it is a design build application. Western Reveal has an install guide that has solutions for all of your common metal flashing conditions.

  • rezibond-western-reveal-011" gap or reveal between the panel side laps
  • 1.5" deep with concealed fasteners
  • Mix and match different reveals, face sizes, and widths.
  • Modern design with 1", 2" or 3" reveals.
  • 12", 14", 16", or 18" Face
  • For architectural projects that require a flush wall design, Western Reveal is also available in a "No Reveal" option.
  • Horizontal or vertical installation.

GET A QUOTE

Western Reveal® Flashing Details & Trim Part Numbers

View now

Product Data

western-reveal-01-all

Material Type:
Western Reveal® - 1.0
Metal Fascia, Soffit, And Wall Panel

Rib Height: 1.5"

Available Gauges: 22, 24

Substrate:
AZ50 Minimum (AKA Galvalume®/Zincalume®)

Fasteners: Concealed Fasteners

Stiffening Ribs or Pencil Ribs:
Available Upon Request

Single or Double Vent Strips:
Available Upon Request

Panel Length: 1' to 35'

Installation:
Installation Over A Solid Substrate
Vertical or Horizontal

Panel Face:
12"-18”

Overall Coverage:
13"-19"

Reveal: 1"

Applications:
Residential
Commercial
Interior

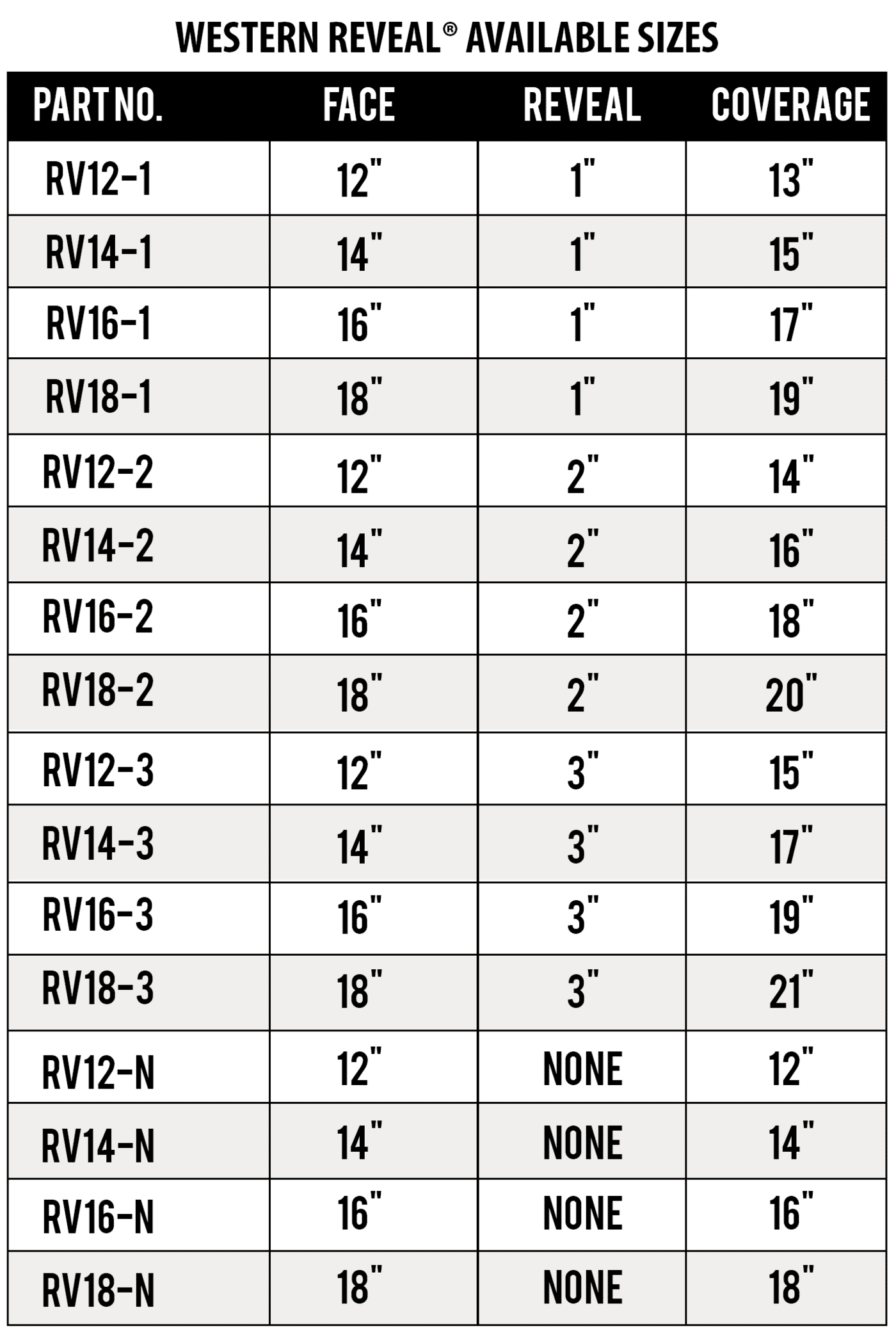

western-reveal-sizes-all

PRODUCT DOCUMENTS

Installation Guide

Product Data Sheets

Class A Fire Rating

Product Specifications

Solar Reflectivity Index

Paint Warranties

Field Cutting & Touch Up Paint

Stiffening Ribs & Vent Strips

Line Drawings

CAD Details

Care & Maintenance

Rezibond Disclaimer

See How These Colors Will Look On Your Building

Try Color Visualizer

Standard Colors (PVDF)

Click the dropdown menu to explore more color options for this panel type.

Download Color Card

Hide List of Colors Show Colors as List

  • Regal Blue Image
  • Slate Blue Image
  • Regal Red Image
  • Colonial Red Image
  • Terra Cotta Image
  • Classic Green Image
  • Dark Bronze Image
  • Medium Bronze Image
  • Mansard Brown Image
  • Burnished Slate Image
  • Zinc Metallic Image
  • Charcoal Gray Image
  • Slate Gray Image
  • Ash Gray Image
  • Copper Penny Image
  • Desert Tan Image
  • Sandstone Image
  • Almond Image
  • Bone White Image
  • Regal White Image
Image View Color Page
Image View Color Page
Image View Color Page
Image View Color Page
Image View Color Page
Image View Color Page
Image View Color Page
Image View Color Page
Image View Color Page
Image View Color Page
Image View Color Page
Image View Color Page
Image View Color Page
Image View Color Page
Image View Color Page
Image View Color Page
Image View Color Page
Image View Color Page
Image View Color Page
Image View Color Page
