Reveal Flashing - # WS-602

Wall/Soffit End Splice - Vertical Installation

Detail # WP-WSD-SW2

If you have a soffit or wall that's too long for one Western Wave® panel, then you will need to use two panels and splice them together. The end splice detail is different when the panels are installed horizontally versus vertically. This installation detail is for a vertical wall panel only.

https://f.hubspotusercontent30.net/hubfs/6069238/images/trim-flashings/western-wave-vertical/v-wp-wsd-sw2-wall-soffit-end-splice-detail.jpg

Wall/Soffit End Splice - Vertical Installation - Detail

CLICK TO ENLARGE

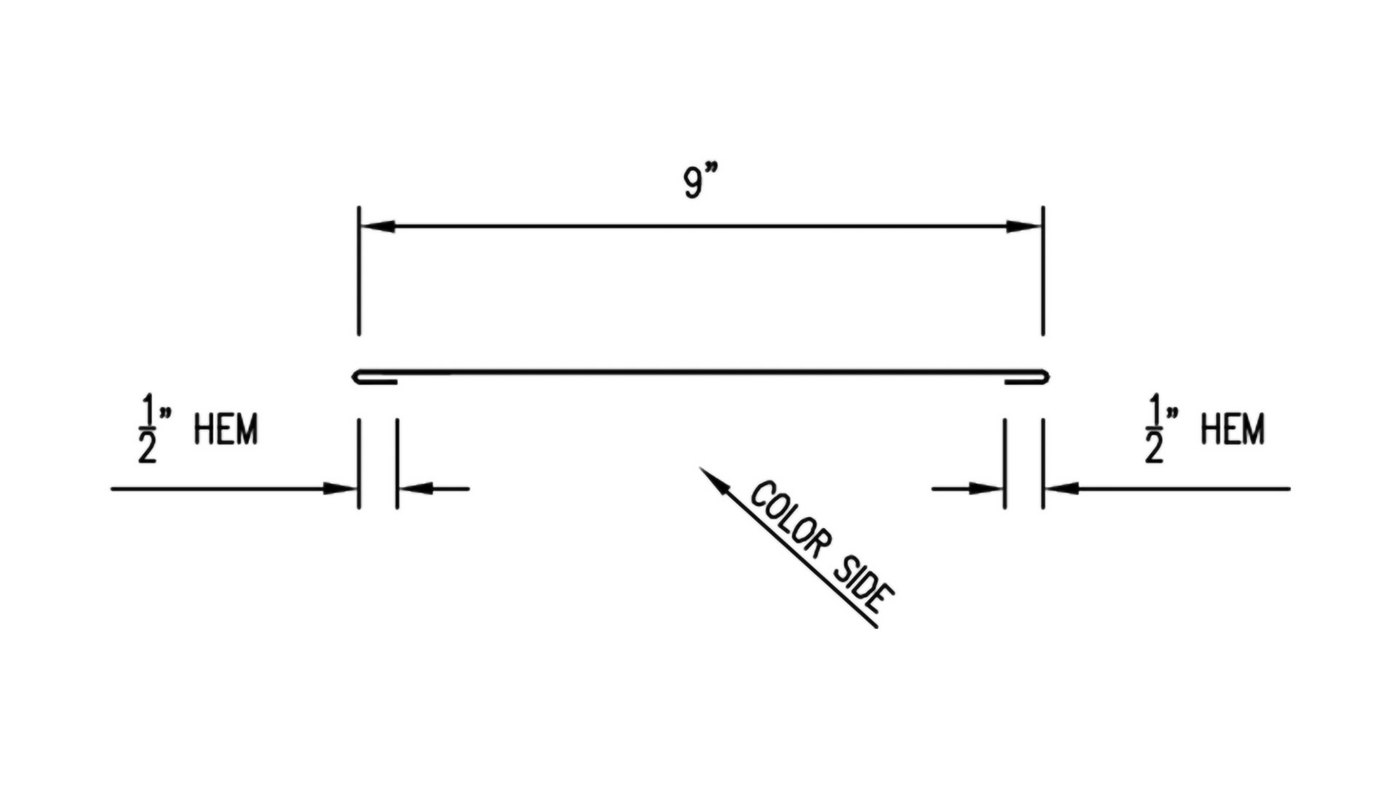

https://f.hubspotusercontent30.net/hubfs/6069238/images/trim-flashings/western-wave-horizontal/reveal-flashing-ws-602-western-wave-panel-trim-flashing-1.jpg

WS-602 Reveal Flashing Dimensions

CLICK TO ENLARGE

https://f.hubspotusercontent30.net/hubfs/6069238/images/trim-flashings/western-wave-horizontal/c-metal-j-trim-ws-601-western-wave-panel-trim-flashing-1.jpg

WS-601 C Metal Dimensions

For every 10' of reveal flashing, you will need 20' of C metal

Click To Enlarge

https://f.hubspotusercontent30.net/hubfs/6069238/images/trim-flashings/western-wave-horizontal/base-joggle-cleat-ws-615-western-wave-panel-trim-flashing-1.jpg

WS-615 Base Joggle Cleat Dimensions

For every 10' of reveal flashing, you will need 10' of base joggle cleat

Click To Enlarge

WALL/SOFFIT END SPLICE DETAIL - VERTICAL INSTALLATION - PARTS LIST

This parts list is designed to help you calculate the quantity of accessories that you’ll need for your trim installation. It has all of the accessories that are needed to install 1 full piece of trim, which is 120" long. To calculate the total number of accessories you will need for your job, simply take the number of trim pieces associated with the trim part purchased and multiply the list by that number for a total for your project.

COMPONENTS LIST

  • 1 Piece Reveal Flashing - WS-602
  • 2 Pieces C Metal - WS-601
  • 1 Piece Base Joggle Cleat - WS-615
  • 20 Pancake Head Screws (#10X1") NO Washer
    Verify Metal To Wood
  • 10 Rivets
  • 1/4 Tube Of Silicone Sealant

DOWNLOAD INSTALLATION GUIDE
