End Splice For Metal Wall Or Soffit Panels - Horizontal Installation

Reveal Flashing - Part # WS-602

Detail #WP-WSD-W22

If you have a wall that's too long for one Western Wave® panel, then you will need to use two panels and splice them together.

The end splice detail is different when the panels are installed vertically versus horizontally. This installation detail is for a horizontal wall panel only. This installation detail shows a 1" gap between both pieces of C-Metal, but it can be increased or decreased based upon your desired aesthetic.

https://f.hubspotusercontent30.net/hubfs/6069238/images/trim-flashings/western-wave-horizontal/h-wp-wsd-sw2-wall-soffit-end-splice-detail.jpg

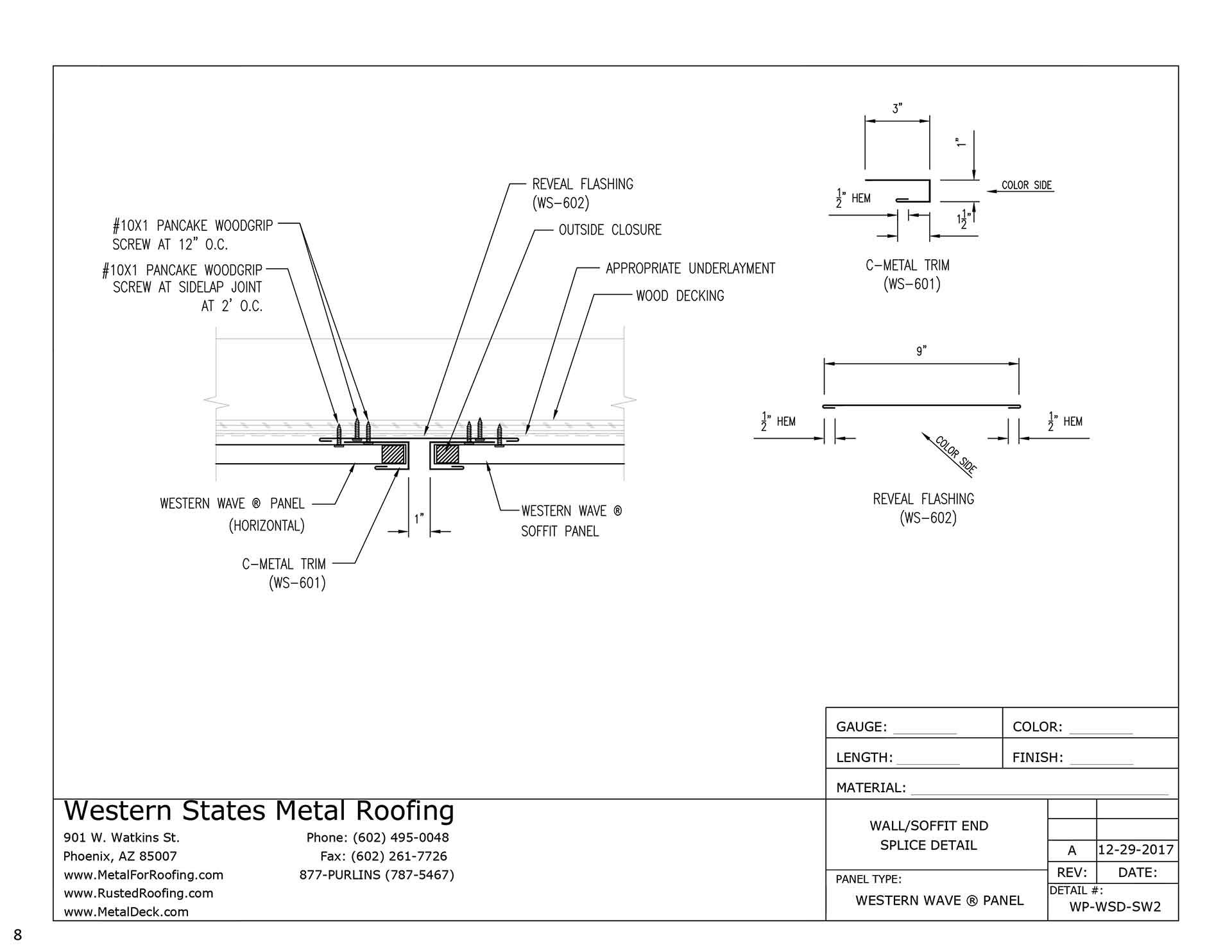

Wall/Soffit End Splice Detail

CLICK TO ENLARGE

https://f.hubspotusercontent30.net/hubfs/6069238/images/trim-flashings/western-wave-horizontal/reveal-flashing-ws-602-western-wave-panel-trim-flashing.jpg

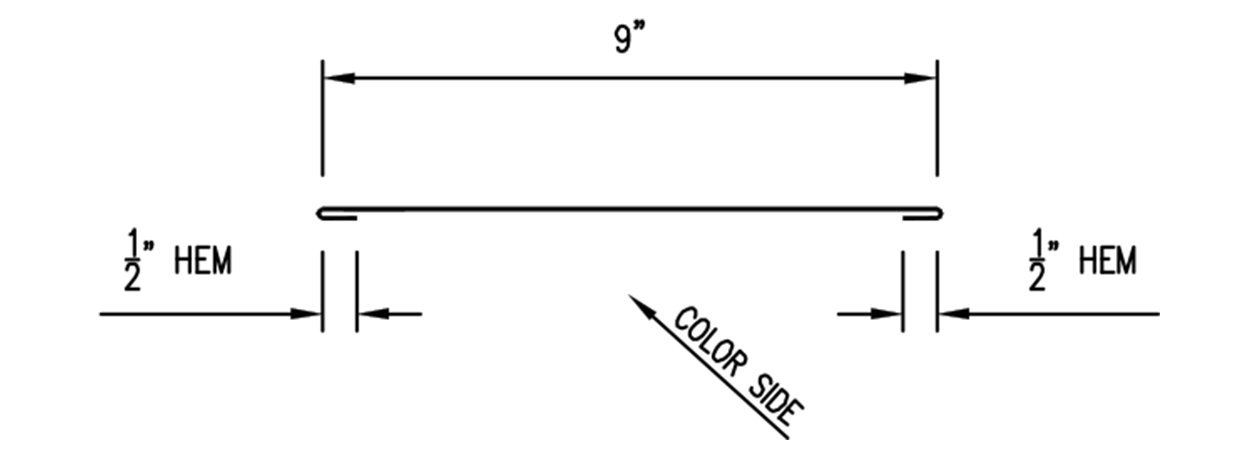

WS-602 Reveal Flashing Dimensions

Click To Enlarge

https://f.hubspotusercontent30.net/hubfs/6069238/images/trim-flashings/western-wave-horizontal/c-metal-j-trim-ws-601-western-wave-panel-trim-flashing.jpg

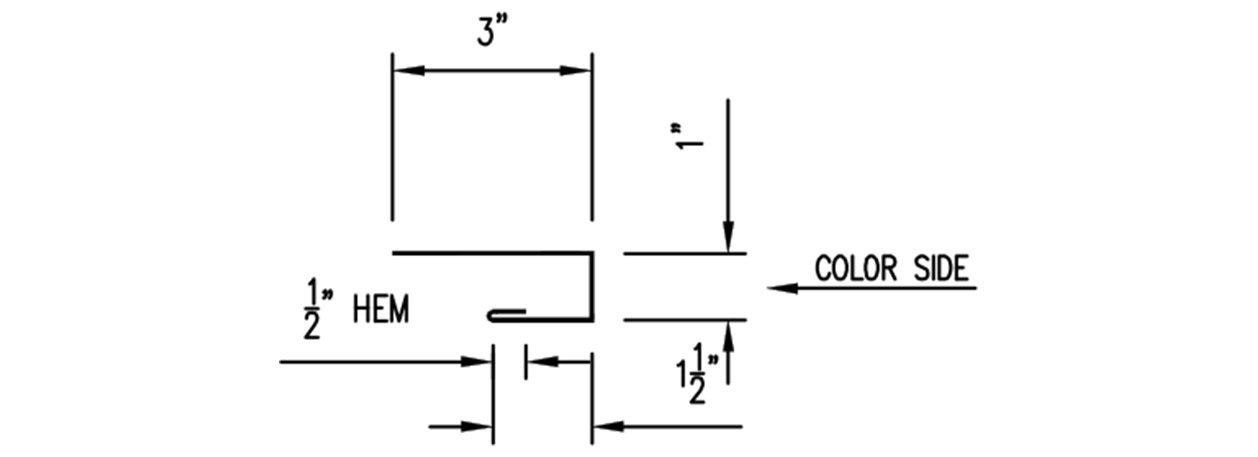

WS-601 C-Metal Trim Dimensions

For every 10' of reveal flashing, you will need 20' of C-Metal.

CLICK TO ENLARGE

WALL/SOFFIT END SPLICE DETAIL - HORIZONTAL INSTALLATION - PARTS LIST

This parts list is designed to help you calculate the quantity of accessories that you’ll need for your trim installation. It has all of the accessories that are needed to install 1 full piece of trim, which is 120" long. To calculate the total number of accessories you will need for your job, simply take the number of trim pieces associated with the trim part purchased and multiply the list by that number for a total for your project.

COMPONENTS LIST

  • 2 Pieces C-Metal Trim - WS-601
  • 1 Piece Reveal Flashing - WS-602
  • 40 Pancake Head Screws (#10X1") NO Washer
    Verify Metal To Wood
  • 8 Pieces Of Outside Foam Closure

DOWNLOAD INSTALLATION GUIDE
