Sill Trim For Wes-Trix Metal Wall Panels

Alternate Sill Trim - Part # WS-1605

This flashing is used when flashing a vertical wall to a soffit or a horizontal wall to soffit.





https://6069238.fs1.hubspotusercontent-na1.net/hubfs/6069238/ALTERNATE-SILL-DRIP_WS-1605.png

WS-1605 Alternate Sill Trim Dimensions

Choose the type of sill trim that you prefer. Use either part # WS-1604 0r WS-1605

Click To Enlarge

https://6069238.fs1.hubspotusercontent-na1.net/hubfs/6069238/Wes-Trix%20Soffit%20to%20Wall%20Drip%20Detail_Page_12.png

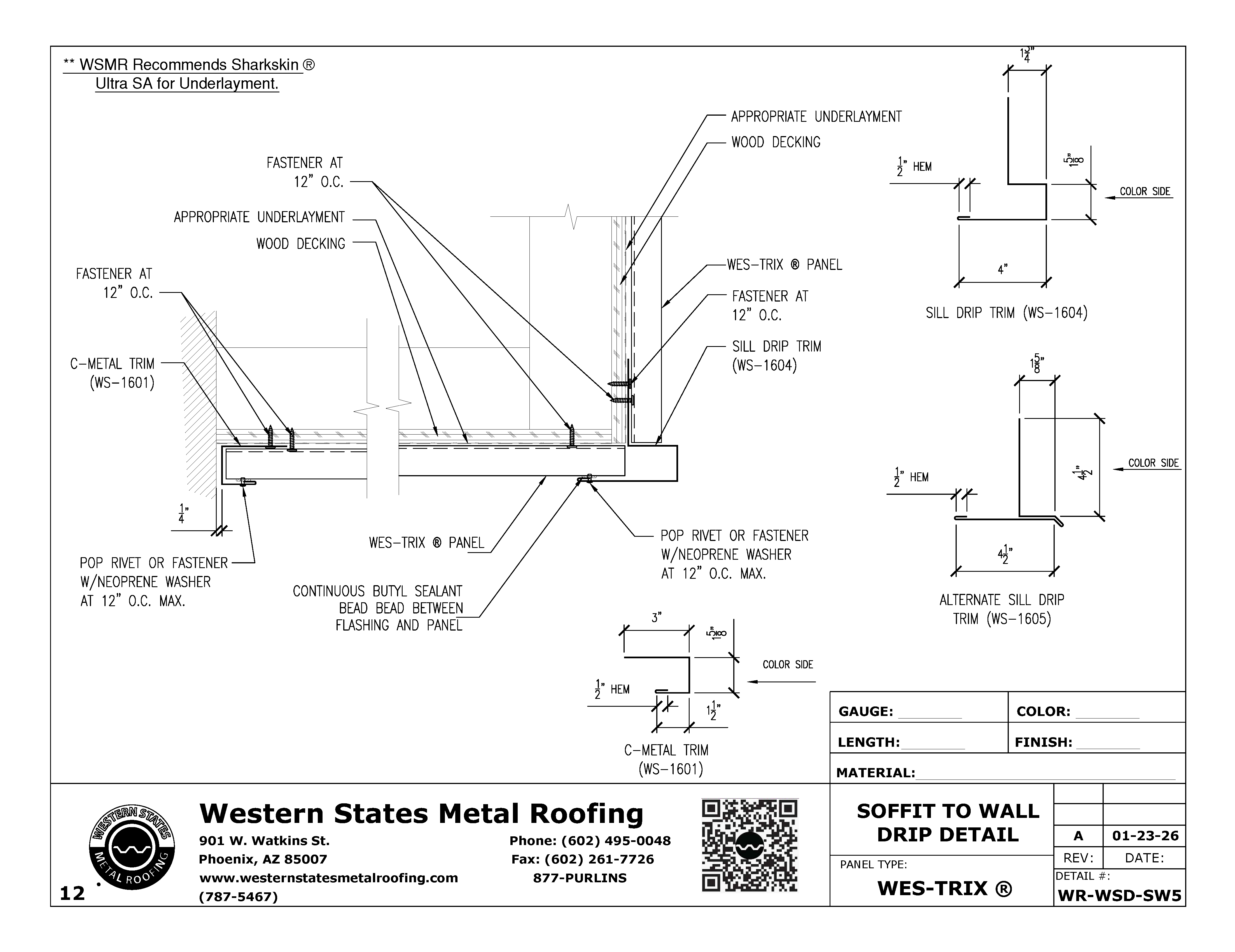

Soffit To Vertical Wall Detail

CLICK TO ENLARGE

https://6069238.fs1.hubspotusercontent-na1.net/hubfs/6069238/Wes-Trix%20Soffit%20to%20Wall%20Horizontal%20Detail_Page_25.png

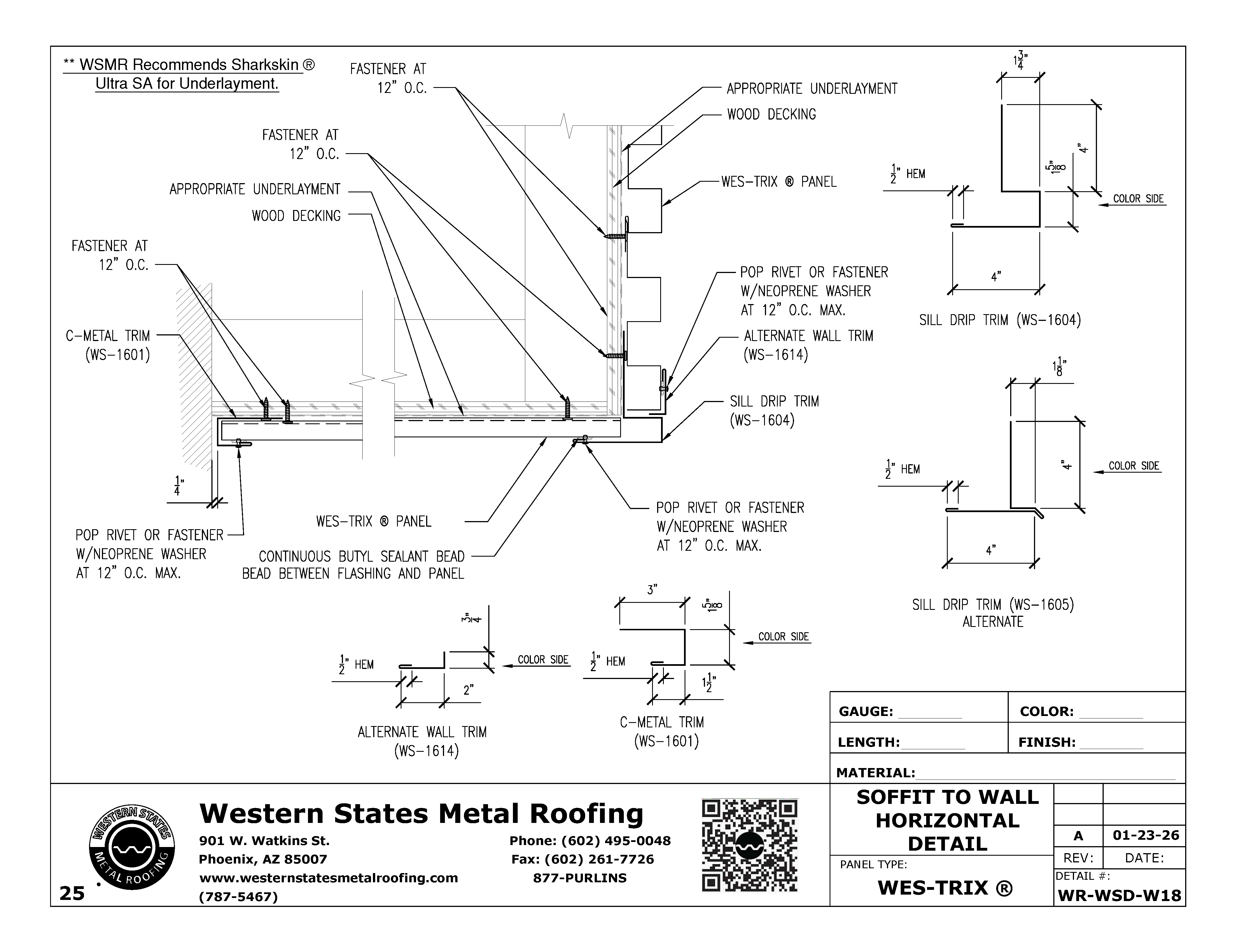

Soffit To Horizontal Wall Detail

Click To Enlarge

https://6069238.fs1.hubspotusercontent-na1.net/hubfs/6069238/C-METAL-J-TRIM_WS-1601.png

WS-1601 C-Metal Trim Dimensions

For every 10' of sill trim, you will need 10' of C-Metal.
