Base Trim - # WS-614/WS-620

Wainscoting Transition - Western Wave® To Western Rib® - Horizontal Installation

Detail #WP-WSD-W20

https://f.hubspotusercontent30.net/hubfs/6069238/images/trim-flashings/western-wave-horizontal/h-wp-wsd-w20-wainscoat-transition-detail.jpg

Western Wave® To Western Rib® - Horizontal Installation

In this detail you will use part # WS-620 instead of WS-617

CLICK TO ENLARGE

https://f.hubspotusercontent30.net/hubfs/6069238/images/trim-flashings/western-wave-horizontal/h-wp-wsd-w26-alternate-wainscoat-transition-detail.jpg

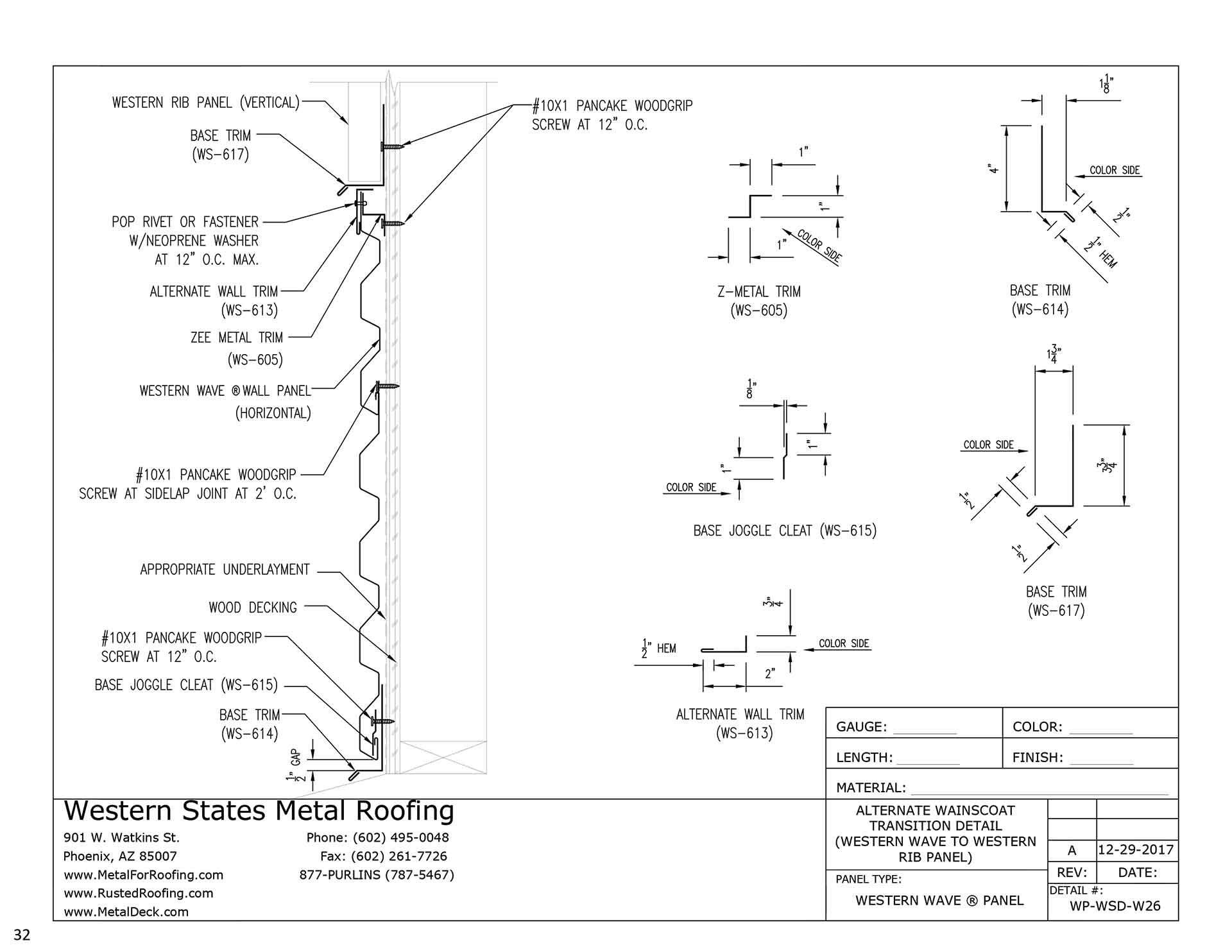

Western Wave® To Western Rib® - Horizontal Installation

Alternate Detail

In this detail you will use part # WS-617 instead of WS-620

Click To Enlarge

https://f.hubspotusercontent30.net/hubfs/6069238/images/trim-flashings/western-wave-horizontal/wr-transition-trim-ws-620-western-wave-panel-trim-flashing-1.jpg

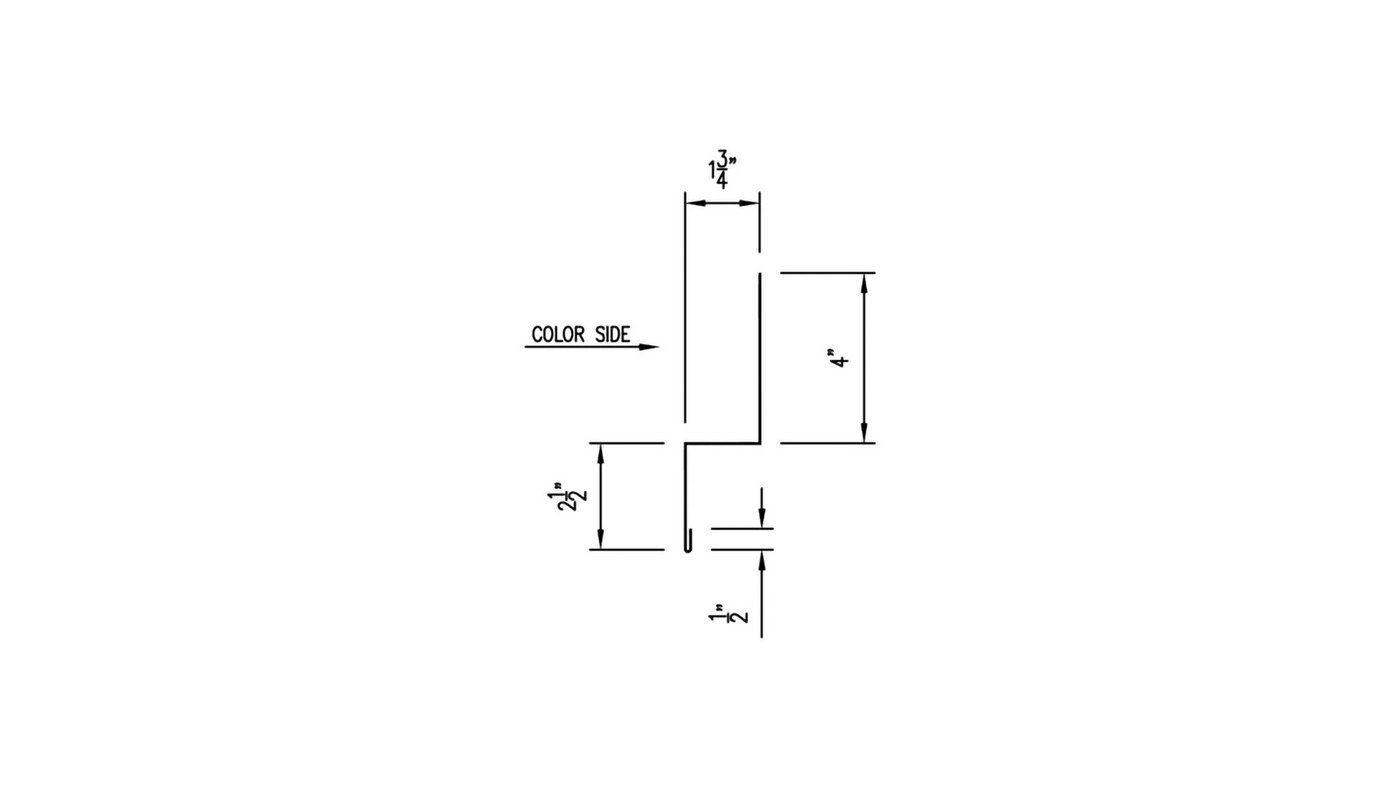

WS-620 Transition Trim Dimensions

You will need both types of base trim for detail # WP-WSD-W20 . 1 Piece Of WS-614 & WS-620

Click To Enlarge

https://f.hubspotusercontent30.net/hubfs/6069238/images/trim-flashings/western-wave-horizontal/base-trim-ws-617-western-wave-panel-trim-flashing-1.jpg

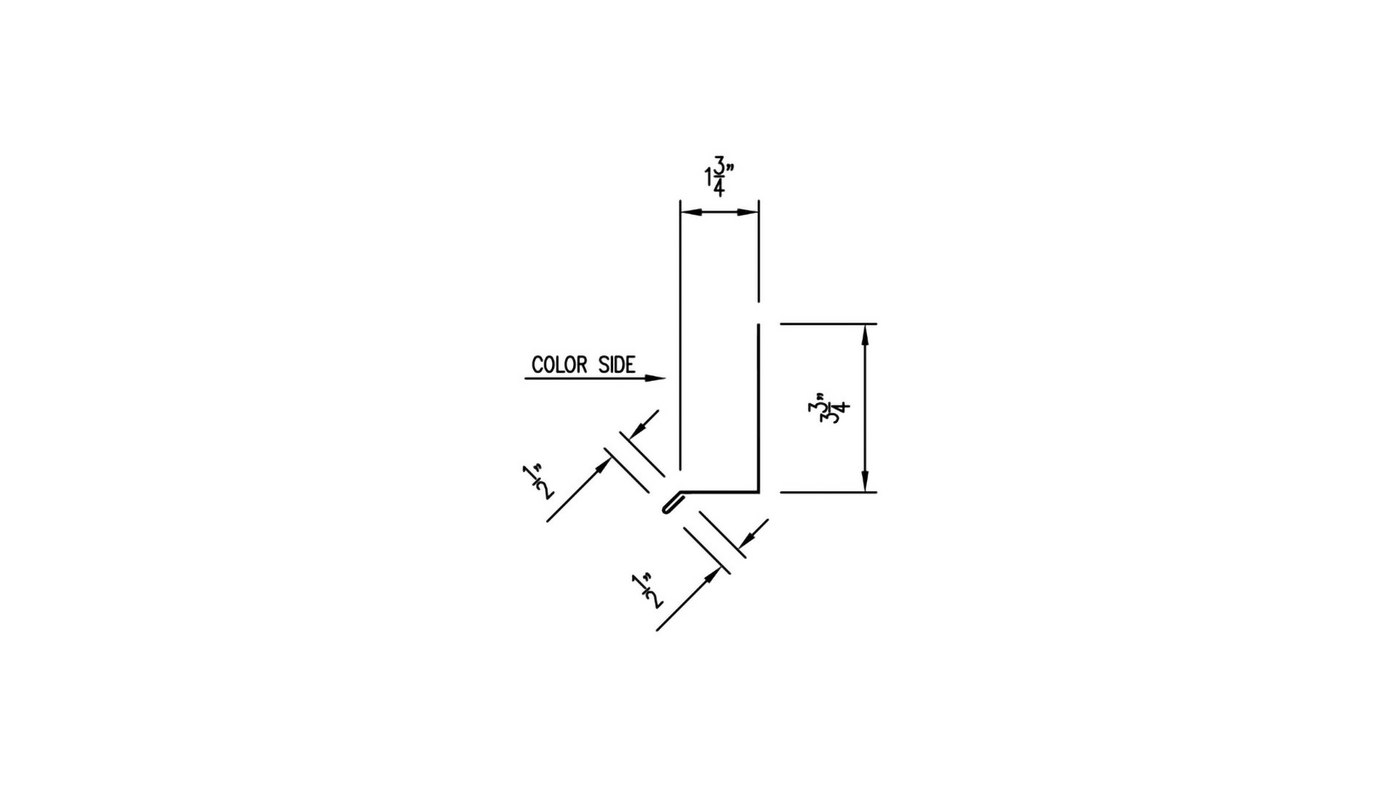

WS-617 Transition Trim Dimensions

You will need both types of base trim for detail # WP-WSD-W26. 1 Piece Of WS-614 & WS-617

Click To Enlarge

https://f.hubspotusercontent30.net/hubfs/6069238/images/trim-flashings/western-wave-horizontal/base-trim-ws-614-western-wave-panel-trim-flashing-1.jpg

WS-614 Base Trim Dimensions

Part # WS-614 is used for detail # WP-WSD-W20 and detail # WP-WSD-W26

CLICK TO ENLARGE

https://f.hubspotusercontent30.net/hubfs/6069238/images/trim-flashings/western-wave-horizontal/base-joggle-cleat-ws-615-western-wave-panel-trim-flashing-1.jpg

WS-615 Base Joggle Cleat Trim Dimensions

For every 10' of base trim, you will need 10' of base joggle cleat

Click To Enlarge

https://f.hubspotusercontent30.net/hubfs/6069238/images/trim-flashings/western-wave-horizontal/z-metal-trim-ws-605-western-wave-panel-trim-flashing-1.jpg

WS-605 Z Metal Dimensions

For every 10' of base trim, you will need 10' of z-metal

Click To Enlarge

https://f.hubspotusercontent30.net/hubfs/6069238/images/trim-flashings/western-wave-horizontal/alternate-wall-trim-ws-613-western-wave-panel-trim-flashing-1.jpg

WS-613 Alternate Wall Trim Dimensions

You will need this part # on detail # WP-WSD-W26 Only

For every 10' of base trim, you will need 10' of alternate wall trim

Click To Enlarge

WAINSCOTING TRANSITION DETAIL - HORIZONTAL INSTALLATION - PARTS LIST

This parts list is designed to help you calculate the quantity of accessories that you’ll need for your trim installation. It has all of the accessories that are needed to install 1 full piece of trim, which is 120" long. To calculate the total number of accessories you will need for your job, simply take the number of trim pieces associated with the trim part purchased and multiply the list by that number for a total for your project.

COMPONENTS LIST

  • 1 Piece Transition Trim - 1 Piece Of WS-617 or WS-620
  • 1 Piece Base Trim - WS-614
  • 1 Piece Base Joggle Cleat - WS-615
  • 1 Piece Z Metal - WS-605
  • 30 Pancake Head Screws (#10X1") NO Washer
    Verify Metal To Wood
  • 10 Rivets

Detail # WP-WSD-W26 will require alternate wall trim, part # WS-613
