Wainscoting Transition - Western Wave® To Alternate Metal Wall Panels - Vertical Installation

Detail #WP-WSD-W9/W15/W16/W17/W20/W24

Wainscoting transition details for 7/8" Corrugated, PBR Panel, Western Rib®, and T-Groove®/RustWall®

https://f.hubspotusercontent30.net/hubfs/6069238/images/trim-flashings/western-wave-vertical/v-wp-wsd-w16-wainscaot-transition-detail.jpg

Western Wave® To 7/8" Corrugated - Vertical Installation

CLICK TO ENLARGE

https://f.hubspotusercontent30.net/hubfs/6069238/images/trim-flashings/western-wave-vertical/v-wp-wsd-w9-alternate-wainscoat-transition-detail.jpg

Western Wave® To PBR Panel - Vertical Installation

Click To Enlarge

https://f.hubspotusercontent30.net/hubfs/6069238/images/trim-flashings/western-wave-vertical/v-wp-wsd-w20-wainscoat-transition-detail.jpg

Western Wave® To Western Rib® - Vertical Installation

CLICK TO ENLARGE

https://f.hubspotusercontent30.net/hubfs/6069238/images/trim-flashings/western-wave-vertical/v-wp-wsd-w17-wainscaot-transition-detail.jpg

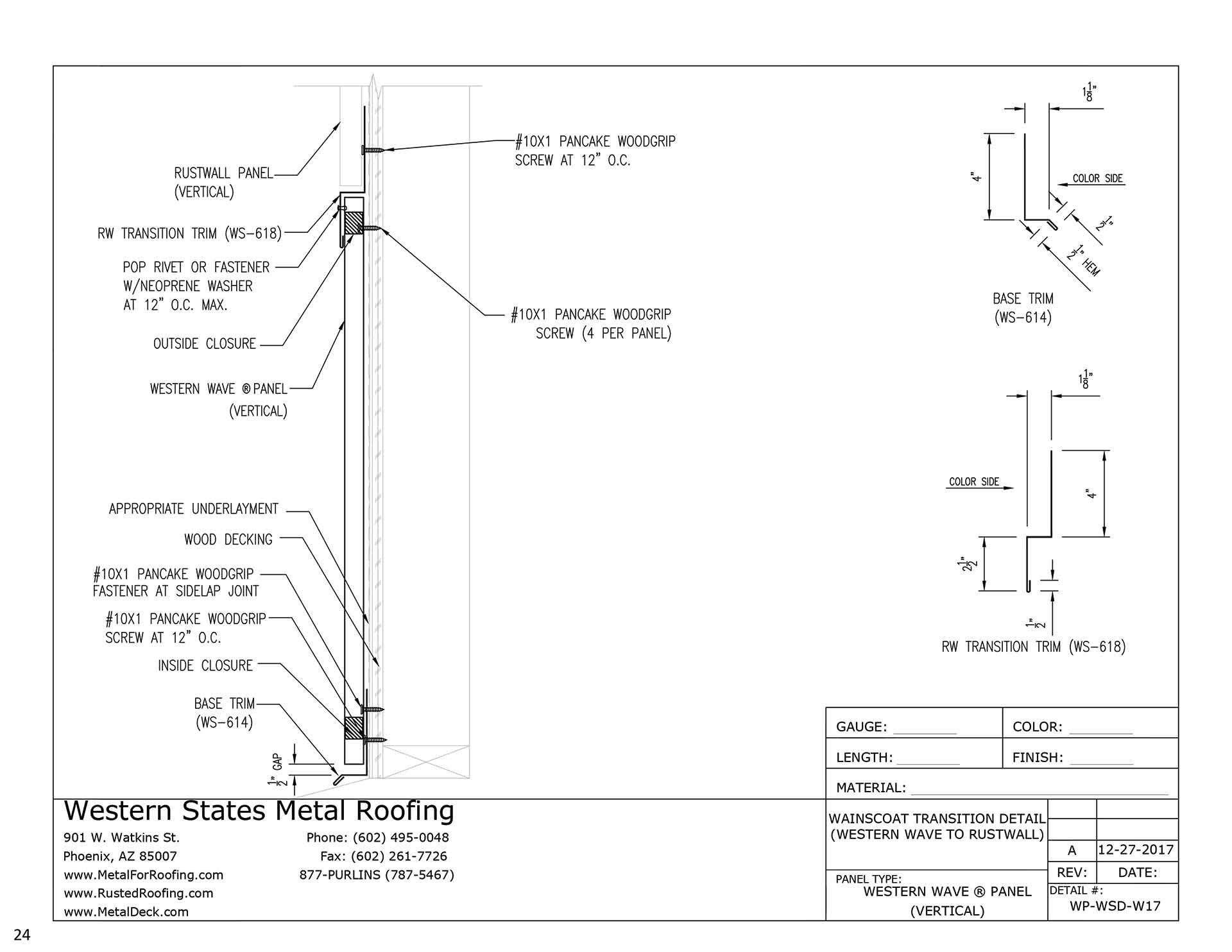

Western Wave® To T-Groove®/RustWall® - Vertical Installation

Click To Enlarge
