Head Trim - # WS-609

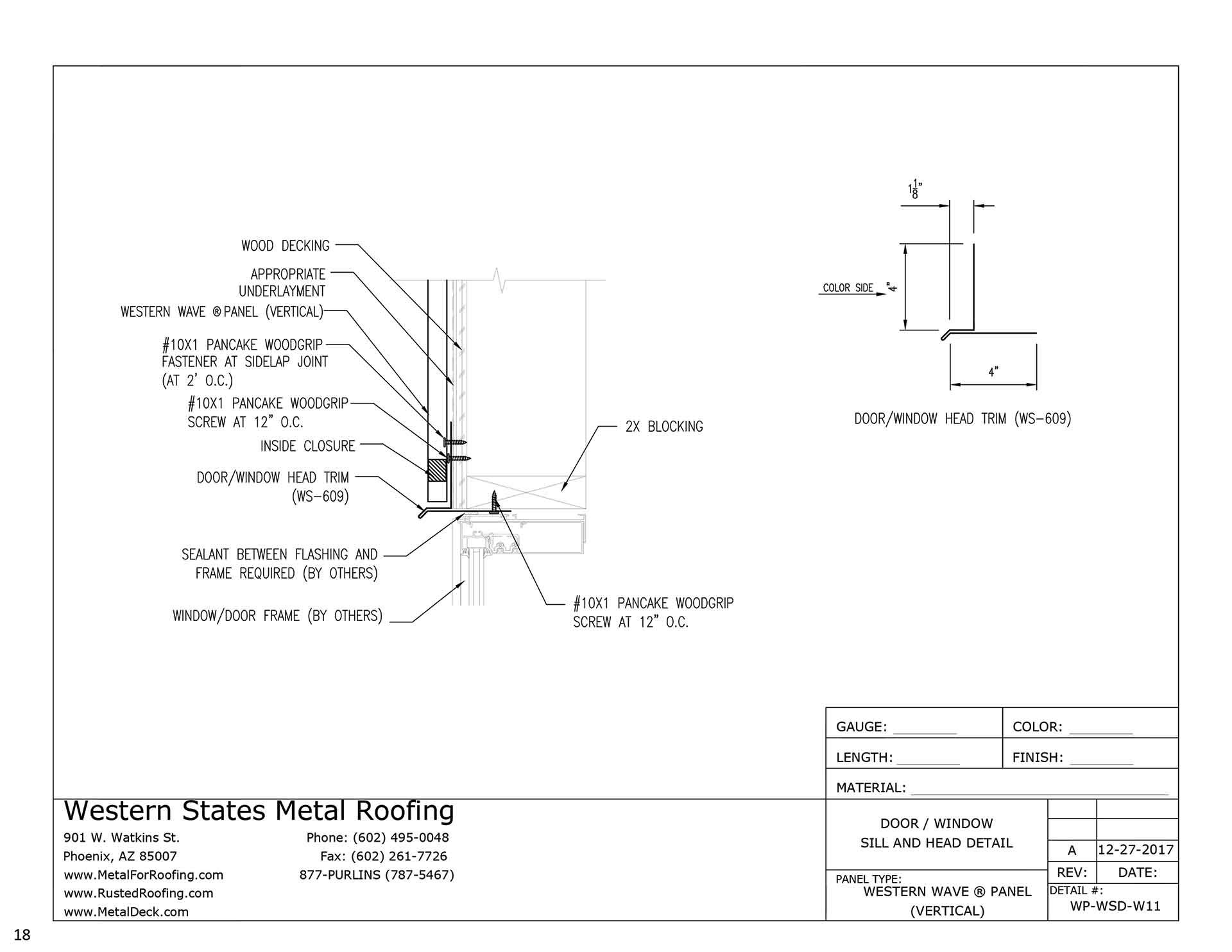

Window/Door Head Trim - Vertical Installation

Detail #WP-WSD-W11

Head trim will be installed along the top of a window or door opening. This installation detail is different when the panels are installed horizontally versus horizontally. This installation detail is for a vertical wall panel only.

https://f.hubspotusercontent30.net/hubfs/6069238/images/trim-flashings/western-wave-vertical/v-wp-wsd-w11-door-window-sill-head-detail.jpg

Window/Door Head Trim Detail - Vertical Installation

CLICK TO ENLARGE

https://f.hubspotusercontent30.net/hubfs/6069238/images/trim-flashings/western-wave-horizontal/door-window-head-trim-ws-609-western-wave-panel-trim-flashing-1.jpg

WS-609 Head Trim Dimensions

CLICK TO ENLARGE

HEAD TRIM DETAIL - VERTICAL INSTALLATION - PARTS LIST

This parts list is designed to help you calculate the quantity of accessories that you’ll need for your trim installation. It has all of the accessories that are needed to install 1 full piece of trim, which is 120" long. To calculate the total number of accessories you will need for your job, simply take the number of trim pieces associated with the trim part purchased and multiply the list by that number for a total for your project.

COMPONENTS LIST

  • 1 Piece Head Trim - WS-609
  • 20 Pancake Head Screws (#10X1") NO Washer
    Verify Metal To Wood
  • 4 Pieces Of Inside Foam Closures

DOWNLOAD INSTALLATION GUIDE
