Base Trim - # WS-614/WS-617

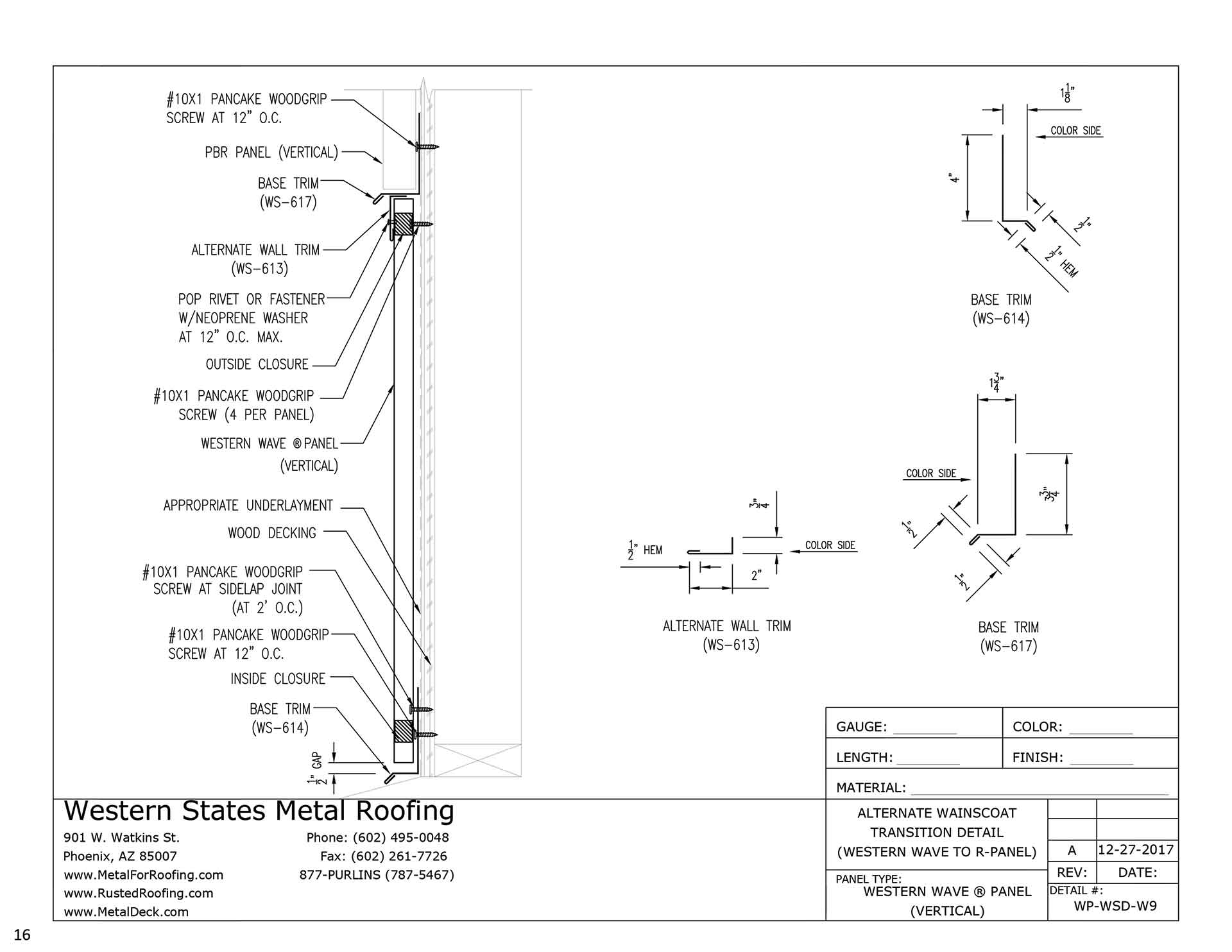

Wainscoting Transition - Western Wave® To R Panel - Vertical Installation

Detail #WP-WSD-W9

https://f.hubspotusercontent30.net/hubfs/6069238/images/trim-flashings/western-wave-vertical/v-wp-wsd-w9-alternate-wainscoat-transition-detail.jpg

Western Wave® To R Panel - Vertical Installation

CLICK TO ENLARGE

https://f.hubspotusercontent30.net/hubfs/6069238/images/trim-flashings/western-wave-horizontal/base-trim-ws-617-western-wave-panel-trim-flashing-1.jpg

WS-617 Transition Trim Dimensions

You will need both types of base trim for this detail. 1 Piece Of WS-614 & WS-617

Click To Enlarge

https://f.hubspotusercontent30.net/hubfs/6069238/images/trim-flashings/western-wave-horizontal/base-trim-ws-614-western-wave-panel-trim-flashing-1.jpg

WS-614 Base Trim Dimensions

You will need both types of base trim for this detail. 1 Piece Of WS-614 & WS-617

CLICK TO ENLARGE

https://f.hubspotusercontent30.net/hubfs/6069238/images/trim-flashings/western-wave-horizontal/alternate-wall-trim-ws-613-western-wave-panel-trim-flashing-1.jpg

WS-613 Alternate Wall Trim Dimensions

For every 10' of base trim, you will need 10' of alternate wall trim.

Click To Enlarge

WAINCOTING TRANSITION DETAIL - VERTICAL INSTALLATION - PARTS LIST

This parts list is designed to help you calculate the quantity of accessories that you’ll need for your trim installation. It has all of the accessories that are needed to install 1 full piece of trim, which is 120" long. To calculate the total number of accessories you will need for your job, simply take the number of trim pieces associated with the trim part purchased and multiply the list by that number for a total for your project.

COMPONENTS LIST

  • 1 Piece Base Trim - WS-617
  • 1 Piece Base Trim - WS-614
  • 1 Piece Alternate Wall Trim - WS-613
  • 30 Pancake Head Screws (#10X1") NO Washer
    Verify Metal To Wood
  • 10 Rivets
  • 4 Pieces Of Outside Foam Closures
  • 4 Pieces Of Inside Foam Closures
  • 1/4 Tube Of Silicone Sealant

DOWNLOAD INSTALLATION GUIDE
