LOOKING FOR STANDING SEAM METAL ROOFING INSTALLATION VIDEOS?

INSTALL LIKE A PRO

WESTERN LOCK® STANDING SEAM METAL ROOFING

Fixed Vented Ridge Cap With Hems - Part #WS-420V

Vented ridge cap allows warm and damp air to leave the attic. This will increase your energy efficiency.

Fixed ridge cap means that the standing seam panels will be pinned in place at the ridge. If you have a fixed point at the ridge, you will need a floating connection at the other end of the standing seam panel. In most instances, this will mean using an eave with a bullnose drip edge or eave with a joggle cleat.

https://f.hubspotusercontent30.net/hubfs/6069238/images/trim-flashings/standing-seam/detail-wsd-d9.jpg

WS-420V Fixed Vented Ridge Cap Detail

CLICK TO ENLARGE

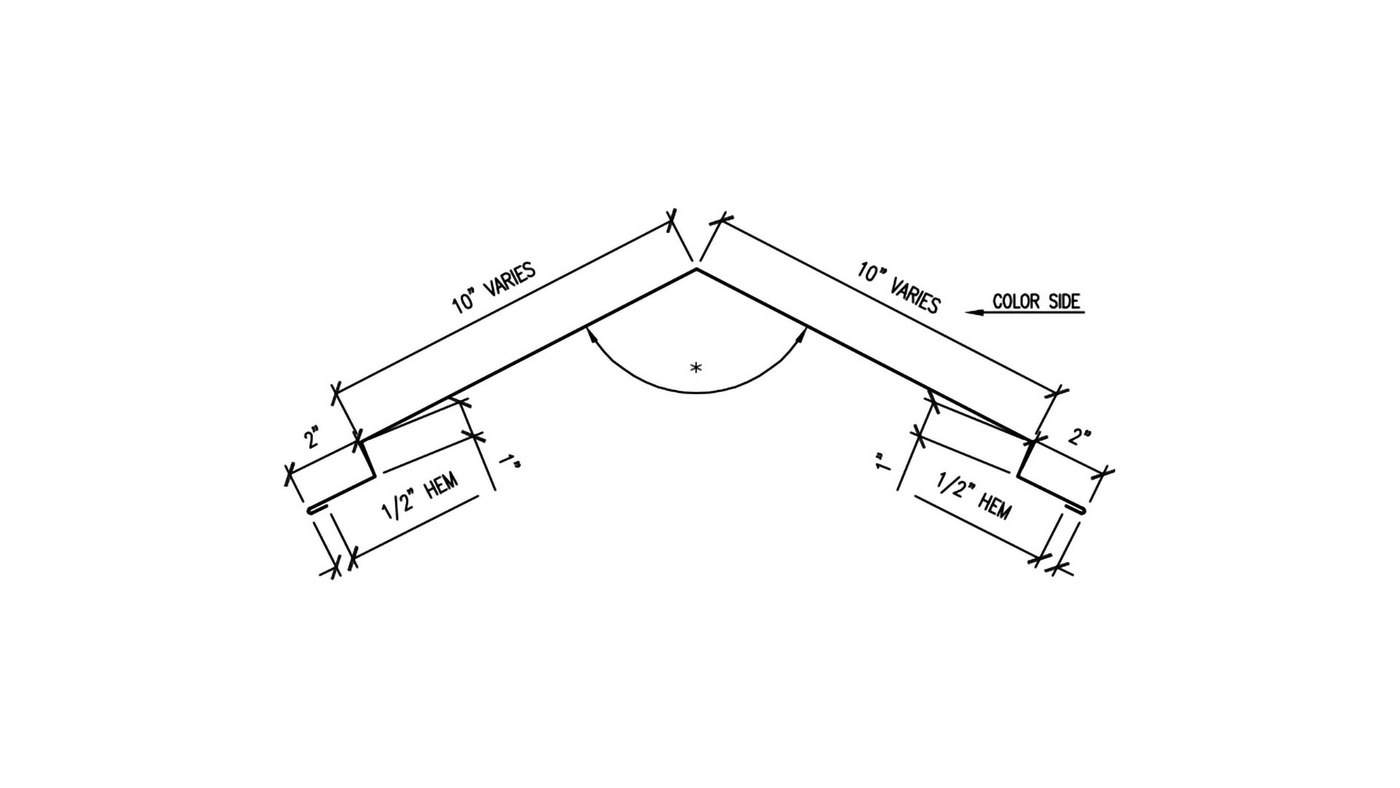

https://f.hubspotusercontent30.net/hubfs/6069238/images/trim-flashings/standing-seam/part-ws-420v-10-inch-vented-ridge-cap-2.jpg

WS-420V Ridge Cap Dimensions

CLICK TO ENLARGE

https://f.hubspotusercontent30.net/hubfs/6069238/images/trim-flashings/standing-seam/part-ws-410-zee-closure-1.jpg

WS-410 Zee Closure Dimensions

For every 10' of ridge cap, you will need 20' of zee closures.

Click To Enlarge

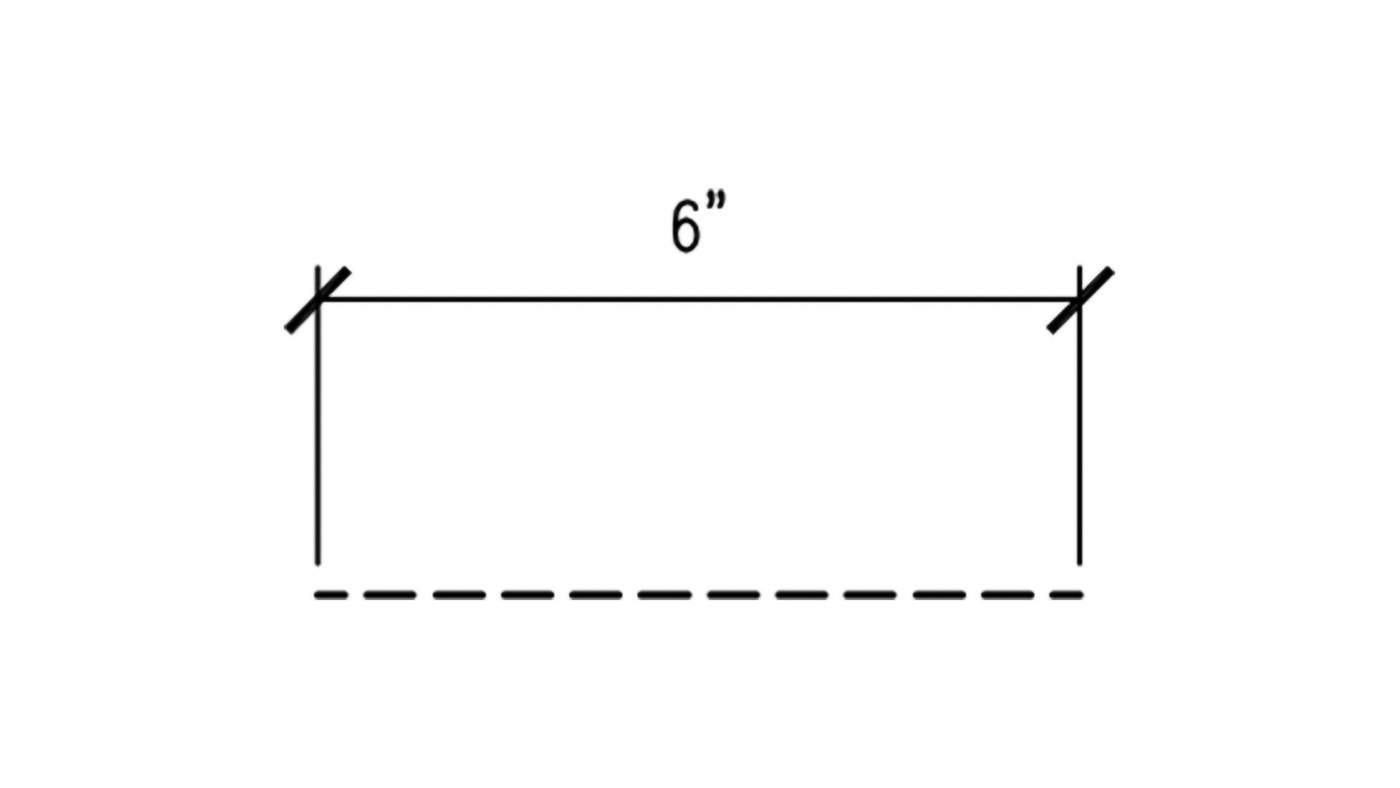

https://f.hubspotusercontent30.net/hubfs/6069238/images/trim-flashings/standing-seam/part-ws-411-6-inch-perforated-vent-strip-1.jpg

WS-411 Perforated Vent Strip Dimensions

For every 10' of ridge cap, you will need 20' of perforated vent strip.

Click To Enlarge

WS-420V - FIXED VENTED RIDGE CAP - PARTS LIST

This parts list is designed to help you calculate the quantity of accessories that you’ll need for your trim installation. It has all of the accessories that are needed to install 1 full piece of trim, which is 120" long. To calculate the total number of accessories you will need for your job, simply take the number of trim pieces associated with the trim part purchased and multiply the list by that number for a total for your project.

Components List



  • 1 Piece Ridge Cap Trim - WS-420V
    Roof Pitch Required
  • 2 Pieces Zee Closure - WS-410
  • 2 Pieces Perforated Vent Strip - WS-411
  • 56 Pancake Head Screws (#10X1") NO Washer
    Verify Metal To Wood
  • 40 Rivets
  • 20 Linear Feet Of Double Sided Butyl Tape, 3/16" X 7/8"
  • 2 1/4 Tubes Of Butyl Sealant
  • 1/4 Tube Silicone Sealant

WSMR Recommends the use of a water barrier or underlayment prior to the installation of the trim components or metal roofing panels.

We recommend:



DOWNLOAD INSTALLATION GUIDE

STANDING SEAM METAL ROOFING INSTALLATION VIDEOS

RIDGE CAP INSTALLATION VIDEOS


How To Install Vented Ridge Cap

Step by step video with installation instructions that includes: zee closure installation, perforated vent strips, cutting and finishing the ridge cap ends to fit the gable trim, overlaps, and fastening.

This video specifically covers fixed and vented ridge cap installation for snap lock and clip fastened standing seam metal roofing panel.

Watch Now


How To Install A Fixed Ridge Cap - Unvented

Step by step video with installation instructions that includes: cutting and finishing the ridge cap ends to fit the gable trim, zee closure installation, overlaps, and fastening.

This video specifically covers fixed and unvented ridge cap installation for snap lock and clip fastened standing seam metal roofing panel.

Watch Now
