WESTERN LOCK® STANDING SEAM METAL ROOFING

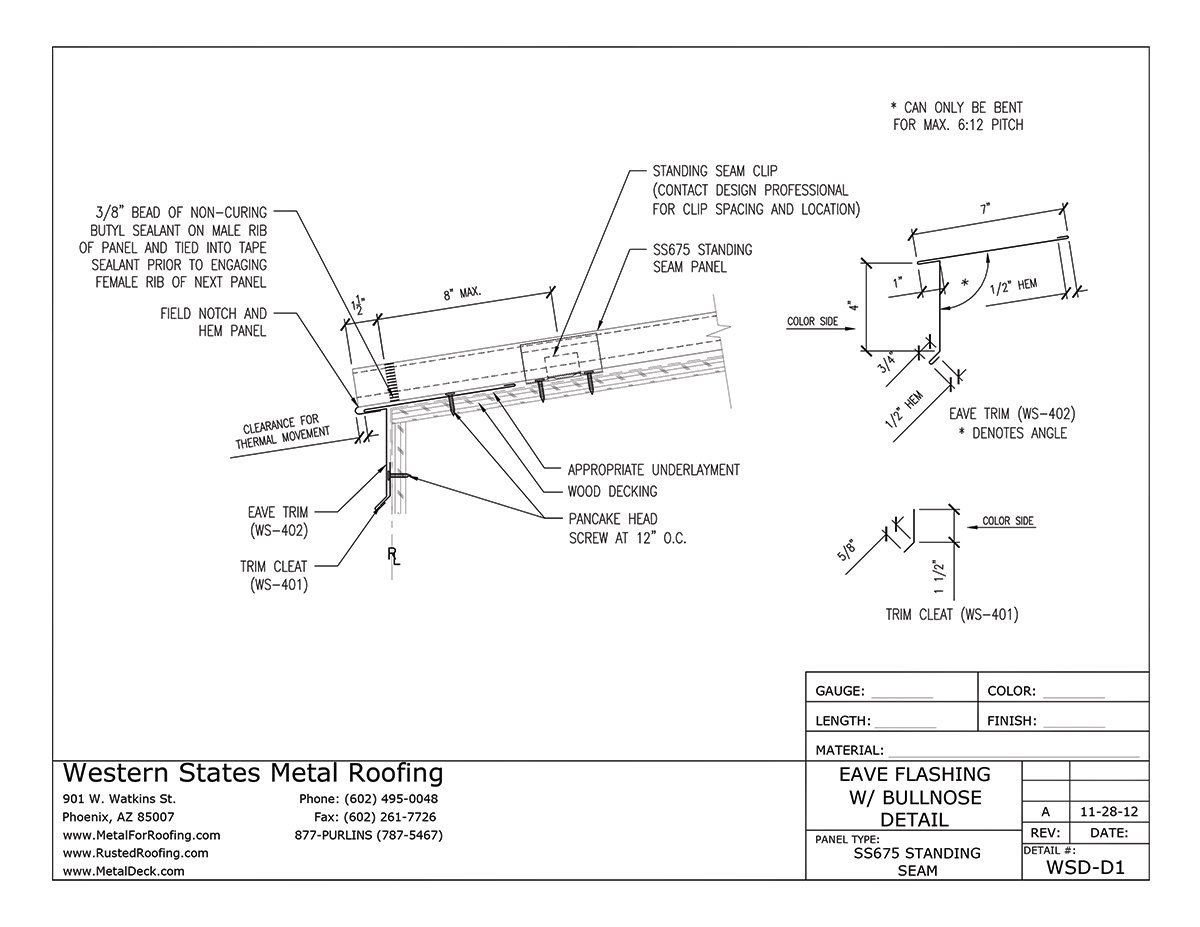

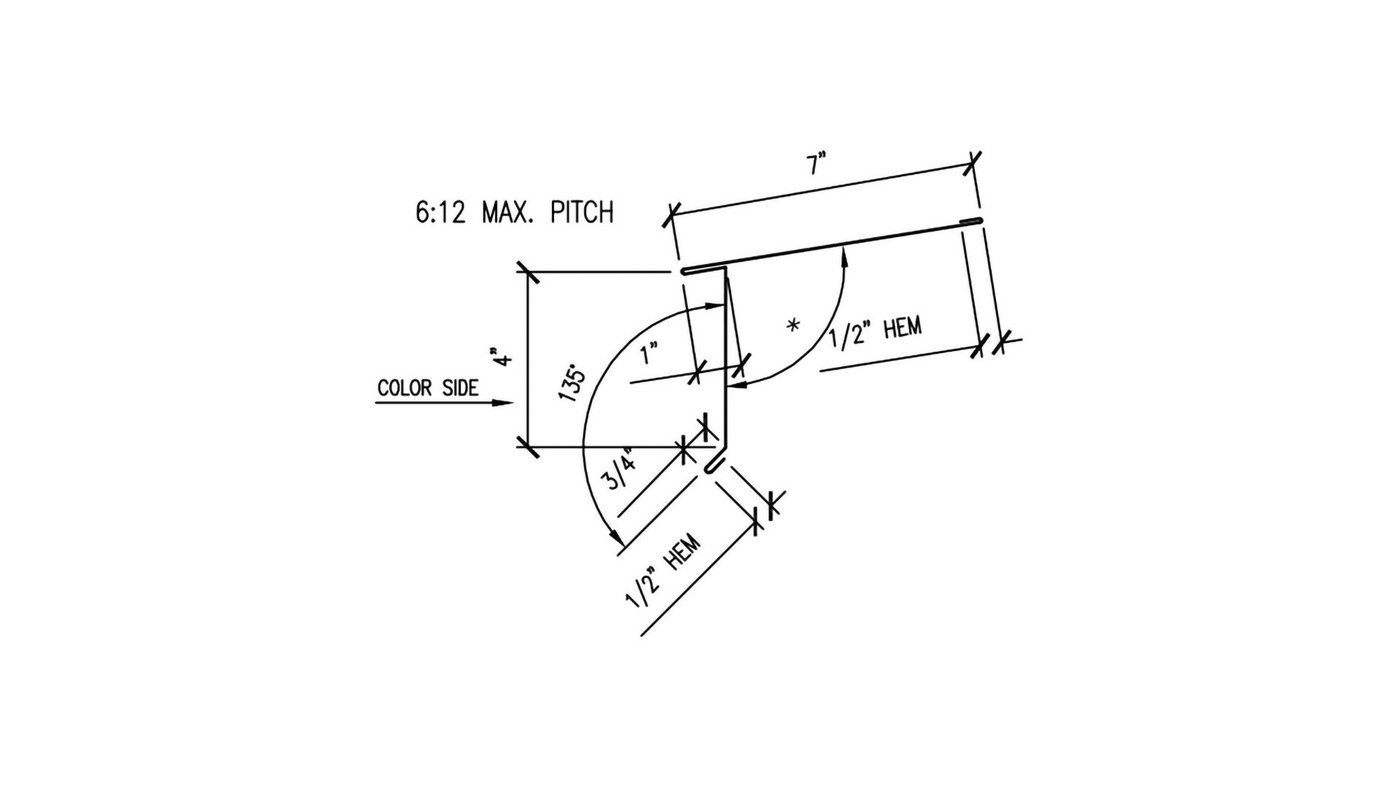

Eave Trim With Bullnose Drip Edge - Part #WS-402

Eave trim with a bullnose drip edge is an easier and faster installation than eave trim with a joggle cleat. There are less parts to install. Bullnose drip edge should not be installed on roof pitches that are greater than 6" in 12"

WS-402 - EAVE WITH BULLNOSE - PARTS LIST

This parts list is designed to help you calculate the quantity of accessories that you’ll need for your trim installation. It has all of the accessories that are needed to install 1 full piece of trim, which is 120" long. To calculate the total number of accessories you will need for your job, simply take the number of trim pieces associated with the trim part purchased and multiply the list by that number for a total for your project.

Components List











  • 1 Piece Bullnose Eave Trim - WS-402
    Roof Pitch Required
  • 1 Piece Trim Cleat - WS-401
  • 20 Pancake Head Screws (#10X1") NO Washer
    Verify Metal To Wood
  • 1/4 Tube Of Butyl Sealant
  • 1/4 Tube Silicone Sealant
  • 10 Linear Feet Of 8" Wide Sharkskin Ultra SA - Self Adhesive Roofing Underlayment

WSMR Recommends the use of a water barrier or underlayment prior to the installation of the trim components or metal roofing panels.

We recommend:











STANDING SEAM METAL ROOFING INSTALLATION VIDEOS

EAVE TRIM INSTALLATION VIDEOS


How To Install A Bullnose Eave Trim

Step by step video with installation instructions that includes: cutting and finishing the eave trim at the gable ends ends, trim cleat installation, overlaps, and fastening.

This video specifically covers bullnose eave trim installation for snap lock and clip fastened standing seam metal roofing panel.

Watch Now


How To Install Eave Trim With Joggle Cleat

Step by step video with installation instructions that includes: cutting and finishing the eave trim at the gable ends ends, joggle cleat and trim cleat installation, overlaps, and fastening.

This video specifically covers eave trim with joggle cleat installation for snap lock and clip fastened standing seam metal roofing panel.

Watch Now
