Transition Trim - # WS-624

Wainscoting Transition - Western Wave® To Western Rib® - Vertical Installation

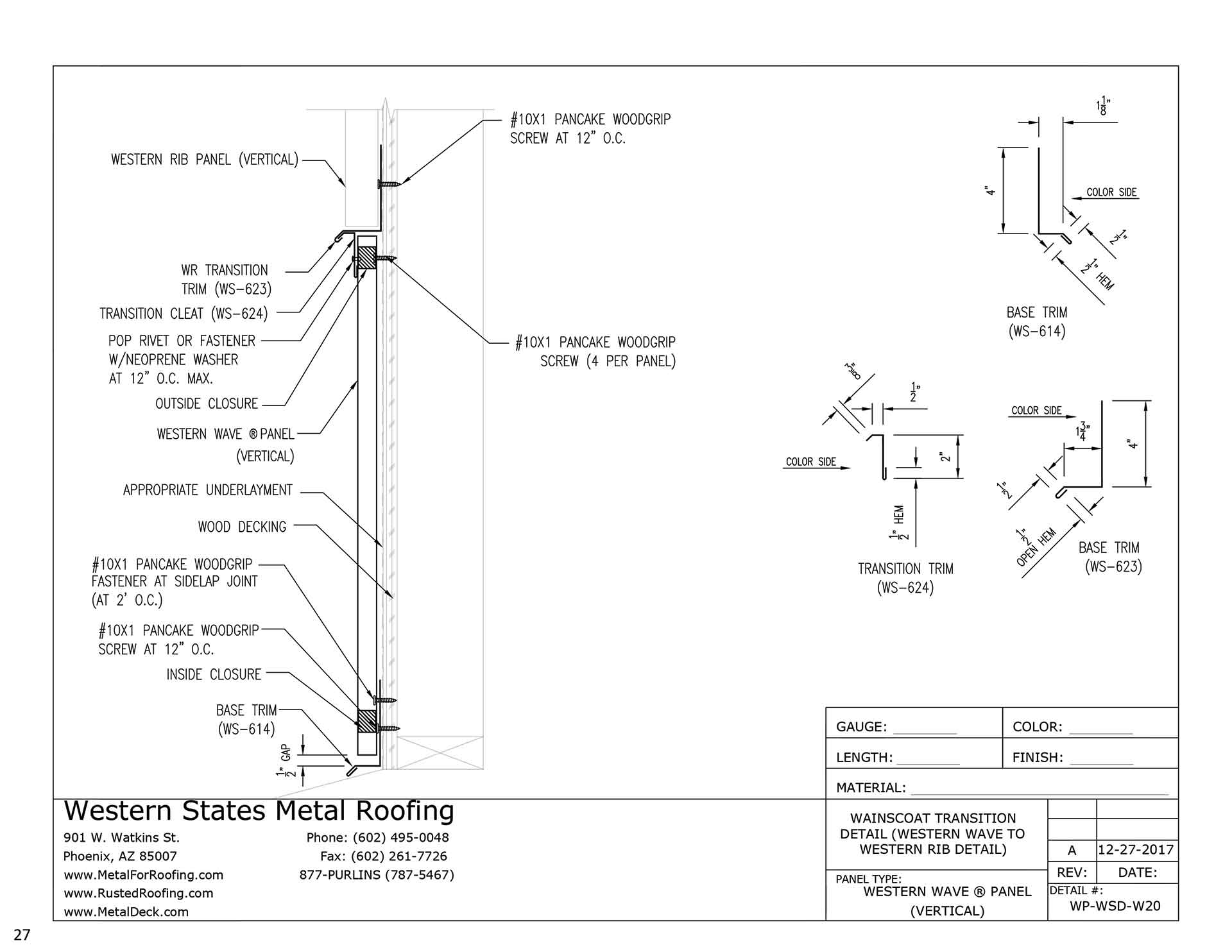

Detail #WP-WSD-W20

https://f.hubspotusercontent30.net/hubfs/6069238/images/trim-flashings/western-wave-vertical/v-wp-wsd-w20-wainscoat-transition-detail.jpg

Western Wave® To Western Rib® - Vertical Installation

CLICK TO ENLARGE

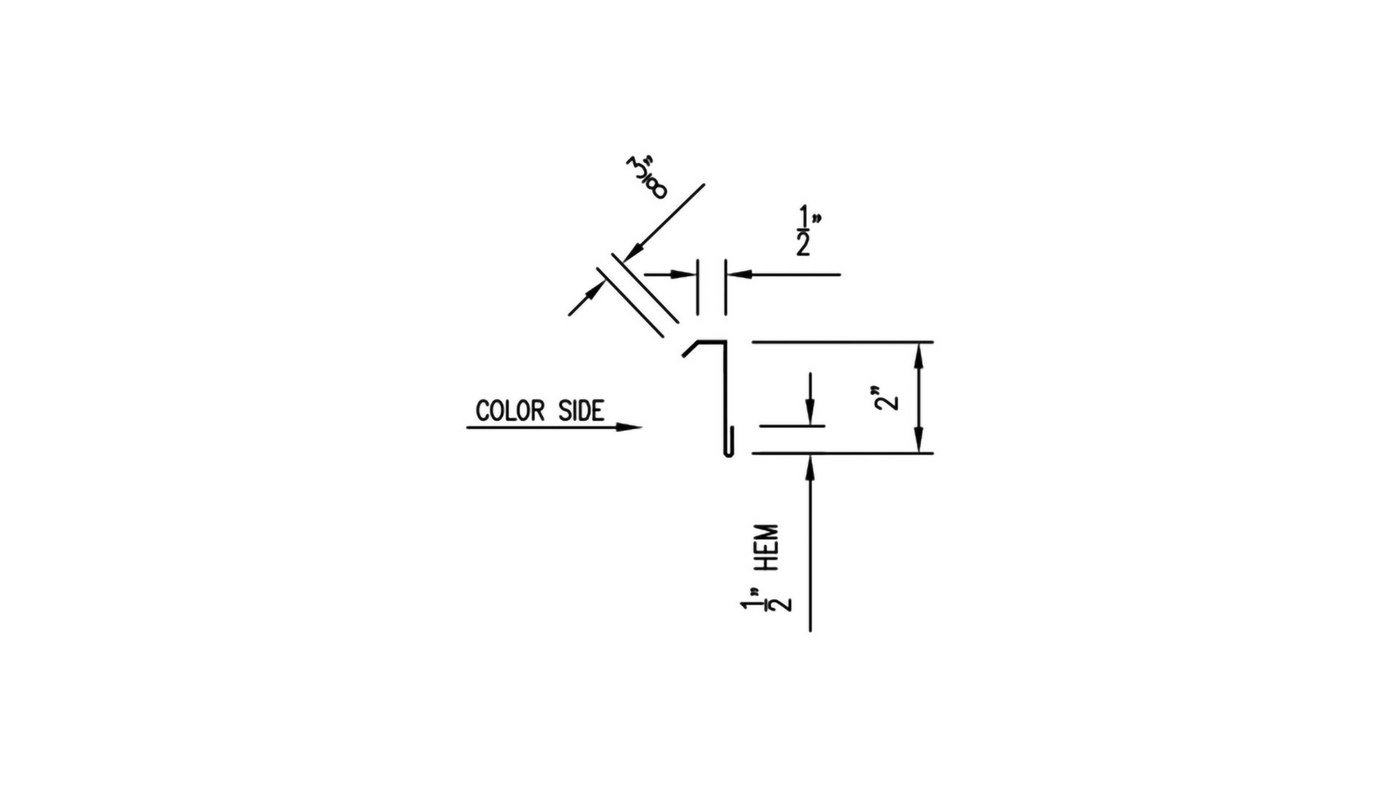

https://f.hubspotusercontent30.net/hubfs/6069238/images/trim-flashings/western-wave-horizontal/transition-cleat-ws-624-western-wave-panel-trim-flashing-vertical-1.jpg

WS-624 Transition Trim Dimensions

You will need 10' of transition trim - WS-624

Click To Enlarge

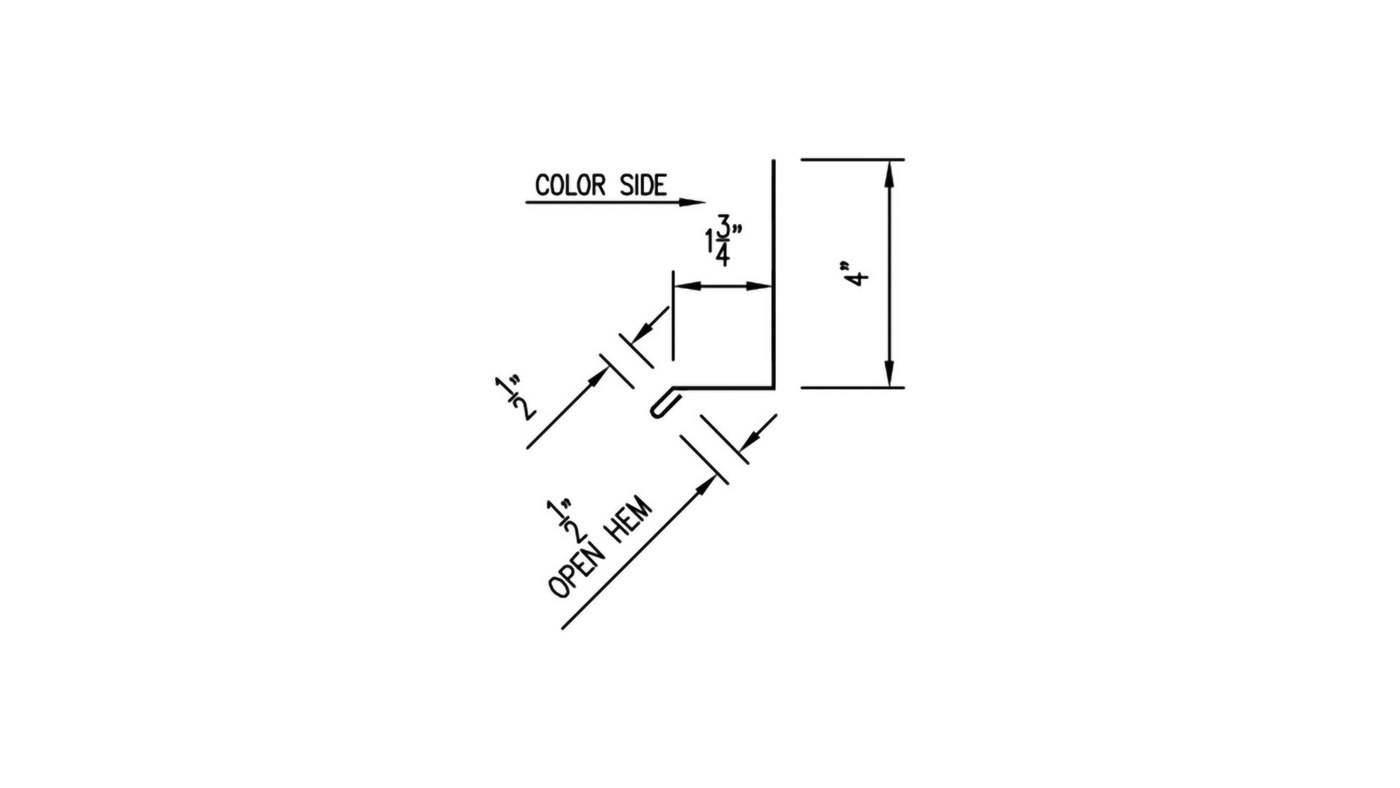

https://f.hubspotusercontent30.net/hubfs/6069238/images/trim-flashings/western-wave-horizontal/base-trim-ws-623-western-wave-panel-trim-flashing-vertical-1.jpg

WS-623 Base Trim Dimensions

You will need both types of base trim for detail # WP-WSD-W20. 1 Piece Of WS-614 & WS-623

CLICK TO ENLARGE

https://f.hubspotusercontent30.net/hubfs/6069238/images/trim-flashings/western-wave-horizontal/base-trim-ws-614-western-wave-panel-trim-flashing-1.jpg

WS-614 Base Trim Dimensions

You will need both types of base trim for detail # WP-WSD-W20. 1 Piece Of WS-614 & WS-623

Click To Enlarge

WAINCOTING TRANSITION DETAIL - VERTICAL INSTALLATION - PARTS LIST

This parts list is designed to help you calculate the quantity of accessories that you’ll need for your trim installation. It has all of the accessories that are needed to install 1 full piece of trim, which is 120" long. To calculate the total number of accessories you will need for your job, simply take the number of trim pieces associated with the trim part purchased and multiply the list by that number for a total for your project.

COMPONENTS LIST

  • 1 Piece Transition Trim - WS-624
  • 1 Piece Base Trim - WS-623
  • 1 Piece Base Trim - WS-614
  • 20 Pancake Head Screws (#10X1") NO Washer
    Verify Metal To Wood
  • 10 Rivets
  • 4 Pieces Of Inside Foam Closures
  • 4 Pieces Of Outside Foam Closures
  • 1/4 Tube Of Silicone Sealant

DOWNLOAD INSTALLATION GUIDE

Just in case you forgot

ADDITIONAL ITEMS YOU MAY NEED...


Fasteners

Fasteners for metal roofing and wall panels.

  • Metal To Wood
  • Metal To Metal
  • Lap Screws
  • Rivets
  • Clips

Learn More
