Z Metal - # WS-506

Zee closure is used when metal trim needs to be attached to the top of the T-Groove® panel. The zee closures provides the trim with something to attach to and creates a fixed point of contact. Our standard Z metal is 2" X 1" X 2", we also carry a smaller Z metal.

https://f.hubspotusercontent30.net/hubfs/6069238/images/trim-flashings/t-groove/part-ws-506-z-metal-trim-1.jpg

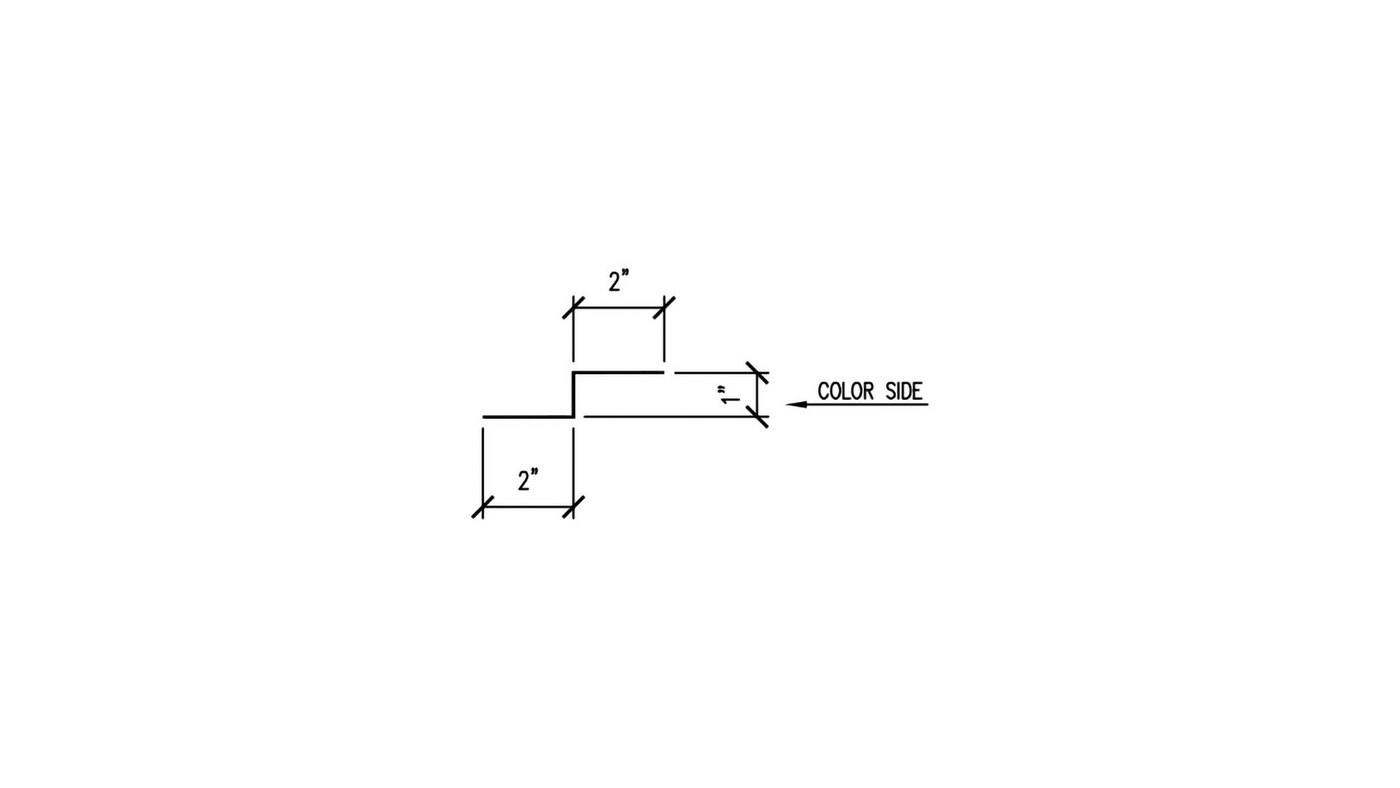

WS-506 Z Metal Dimensions

CLICK TO ENLARGE

https://f.hubspotusercontent30.net/hubfs/6069238/images/trim-flashings/t-groove/tg-wsd-w12-window-door-jamb-detail.jpg

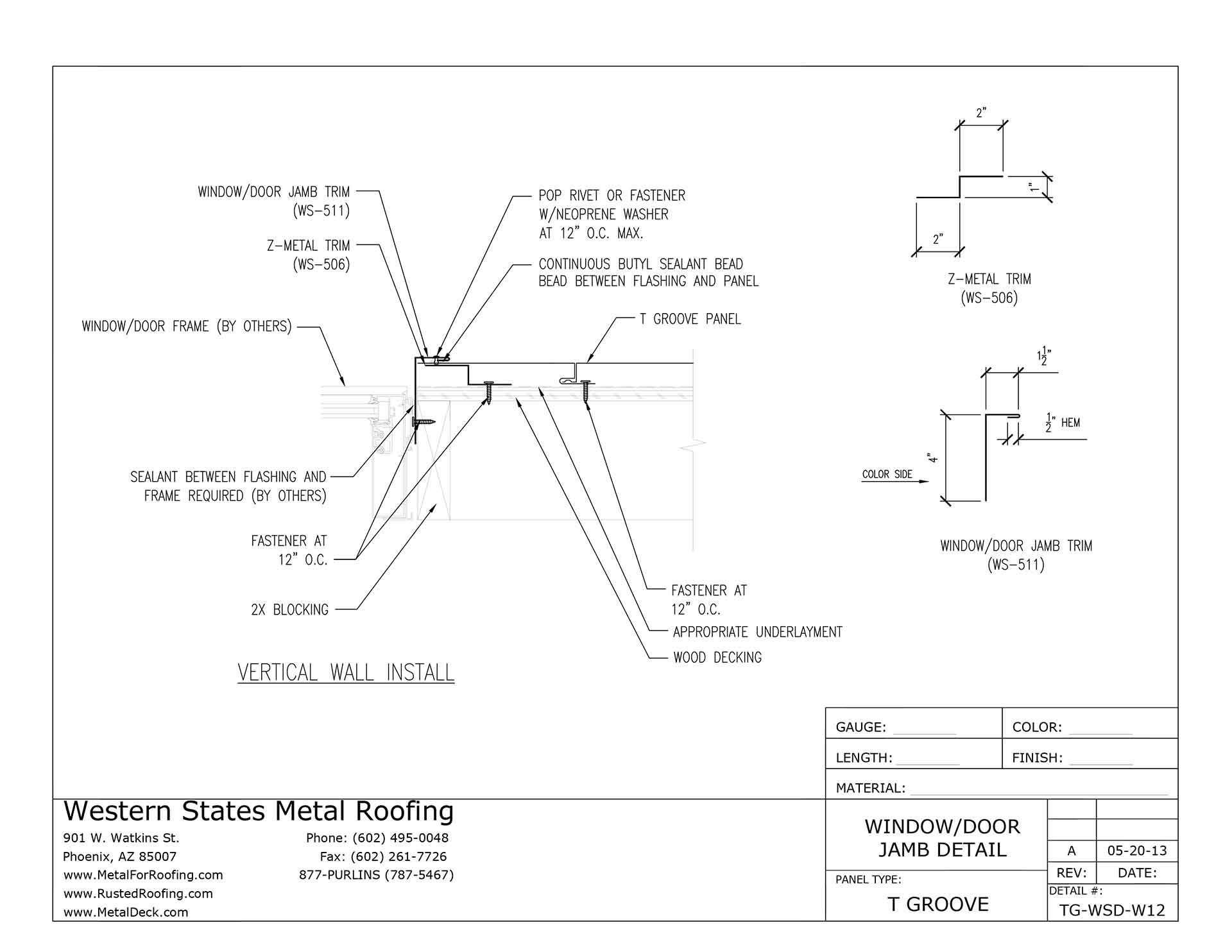

Window/Door Jamb Detail - Vertical Installation

CLICK TO ENLARGE

https://f.hubspotusercontent30.net/hubfs/6069238/images/trim-flashings/t-groove/tg-wsd-w14-outside-corner-detail.jpg

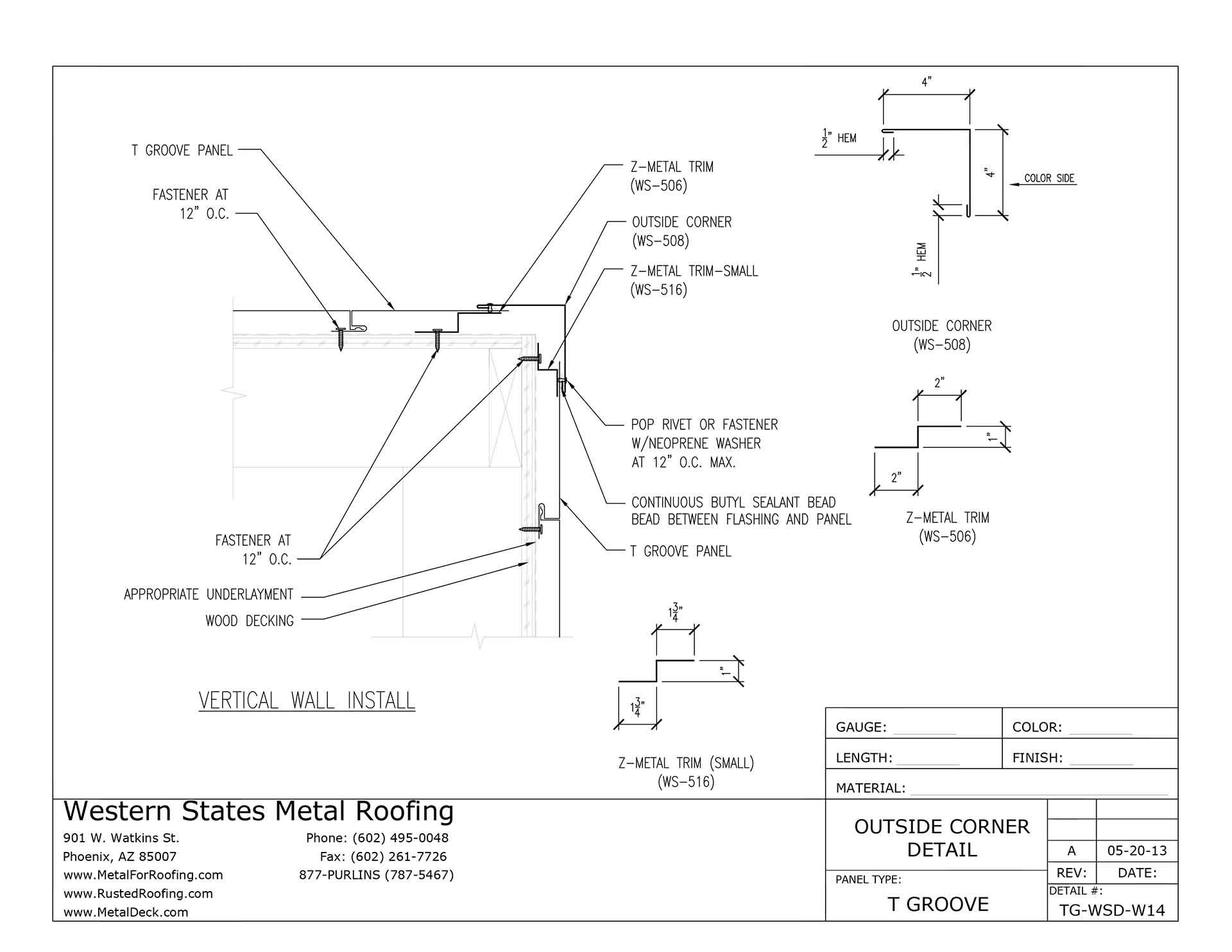

Outside Corner Detail - Vertical Installation

Click To Enlarge

https://f.hubspotusercontent30.net/hubfs/6069238/images/trim-flashings/t-groove/tg-wsd-w15-inside-corner-detail.jpg

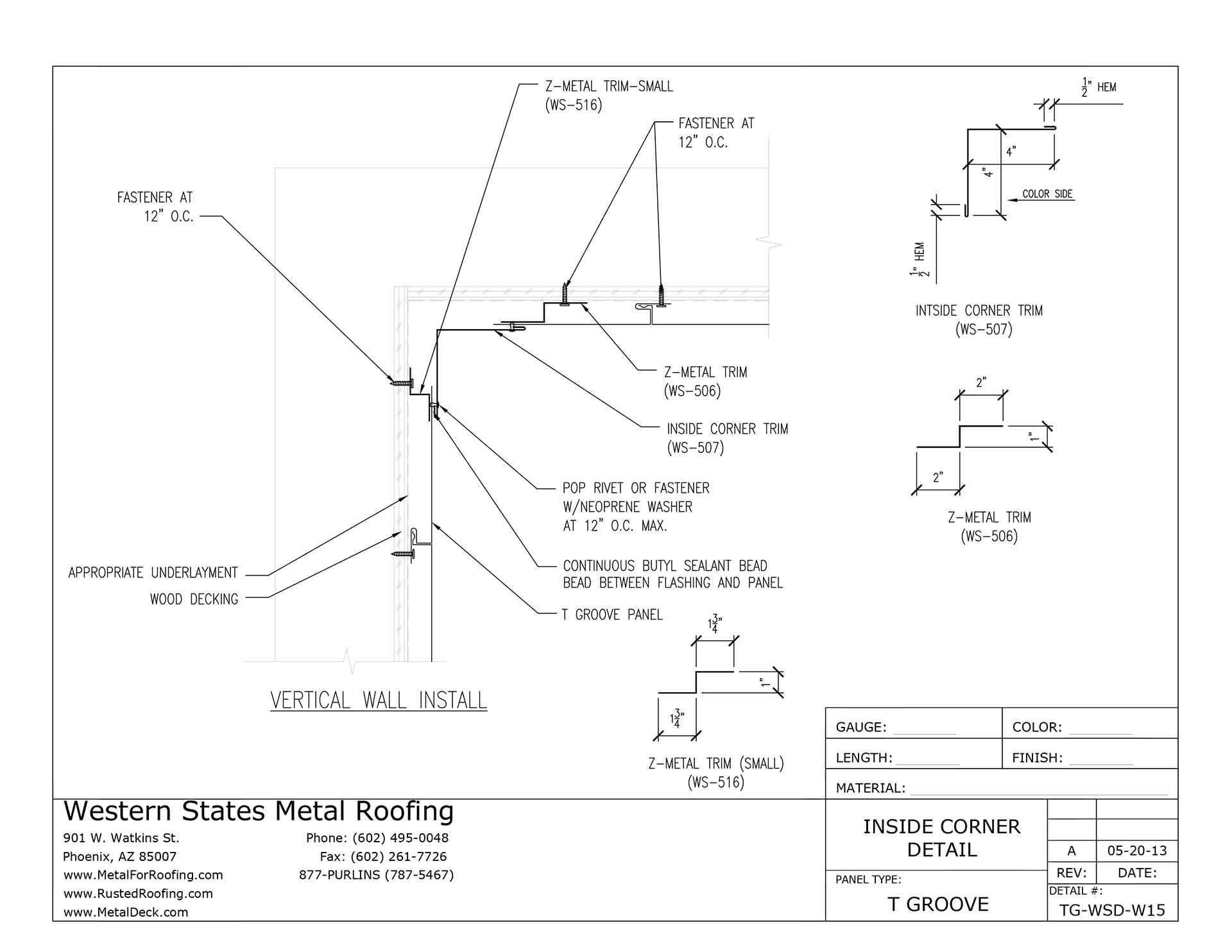

Inside Corner Detail - Vertical Installation

Click To Enlarge
