Part #: WS-927/WS-1217

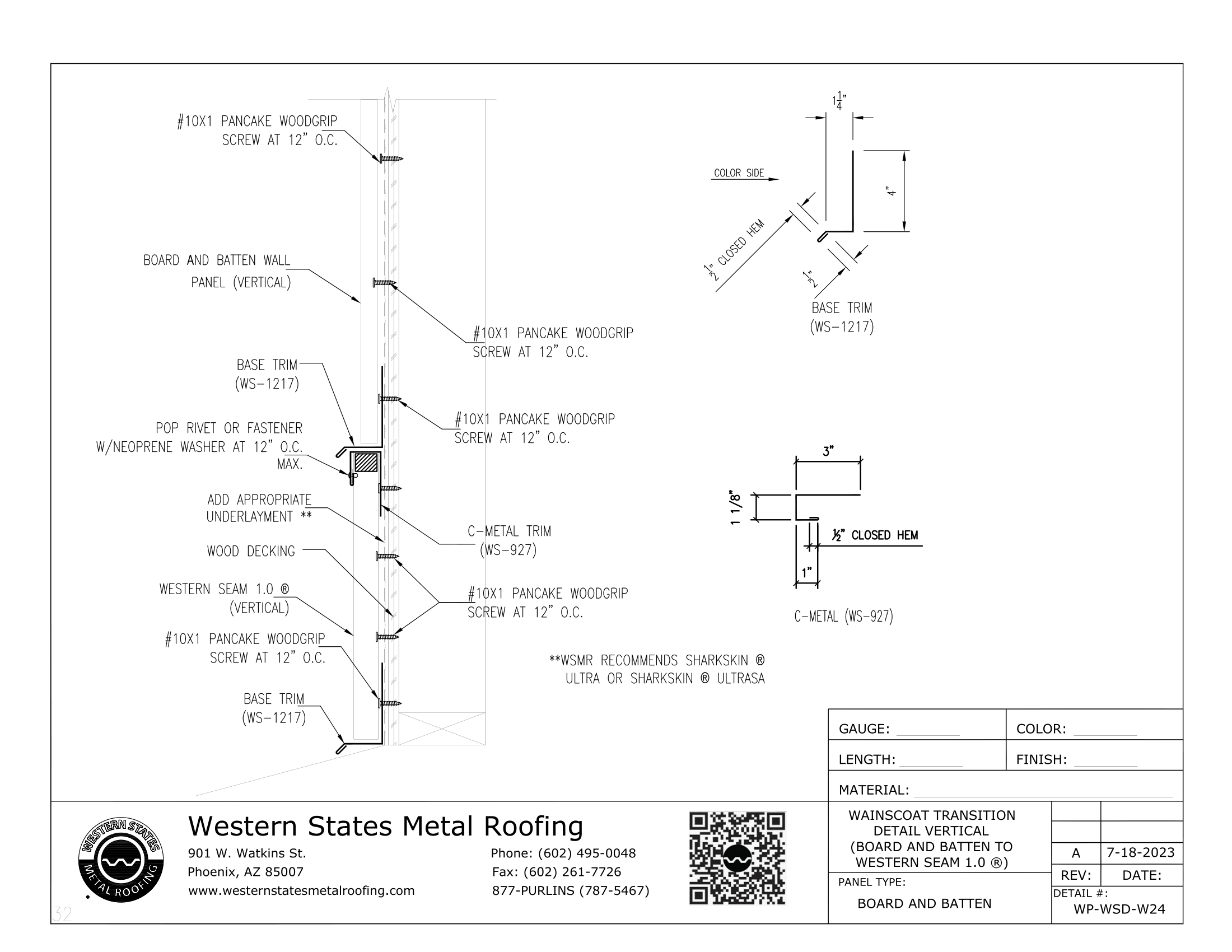

Wainscoting Transition - Board & Batten To Western Seam® - 1.0 - Vertical Installation

Detail #WP-WSD-W24

https://6069238.fs1.hubspotusercontent-na1.net/hubfs/6069238/board-batten-trim-flashing/trim-details/bb-wp-wsd-w24.png

Board & Batten To Western Seam® - 1.0 - Vertical Installation

https://6069238.fs1.hubspotusercontent-na1.net/hubfs/6069238/.pixelcompress/board-batten-trim-flashing/trim-parts/bb-wsd-ws-927.png

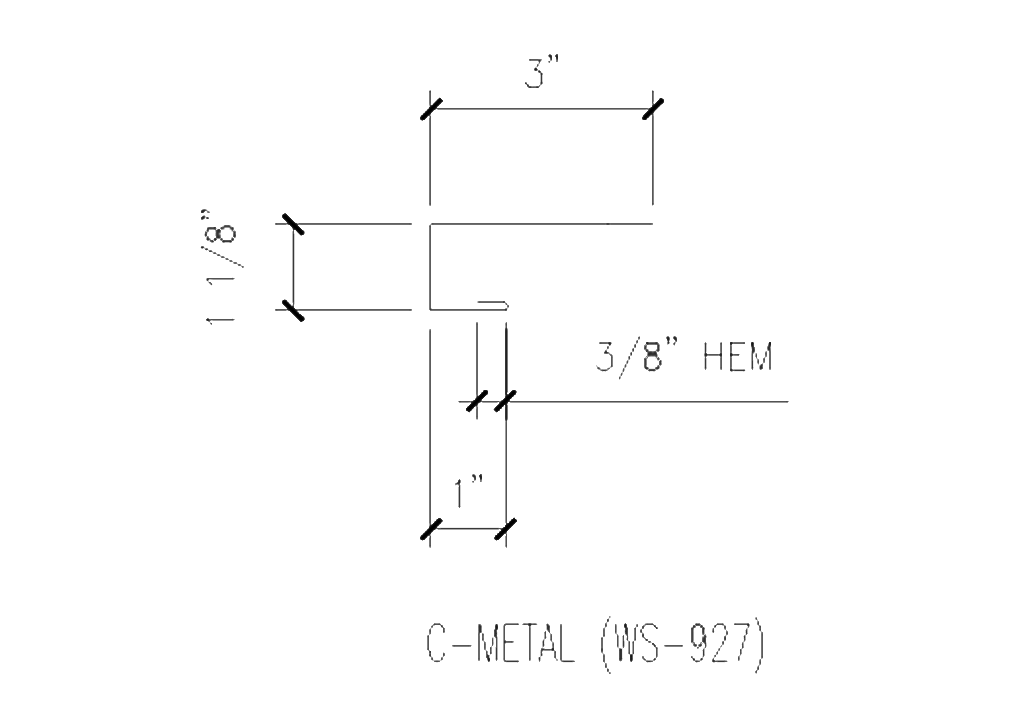

WS-927 C-Metal Trim Dimensions

This detail assumes that you haven't purchased or installed the trim for the Western Seam® - 1.0 panels. If you have already installed those pieces you will not need all the trim that's shown in this detail.

CLICK TO ENLARGE

https://6069238.fs1.hubspotusercontent-na1.net/hubfs/6069238/board-batten-trim-flashing/trim-parts/bb-wsd-ws-1217.png

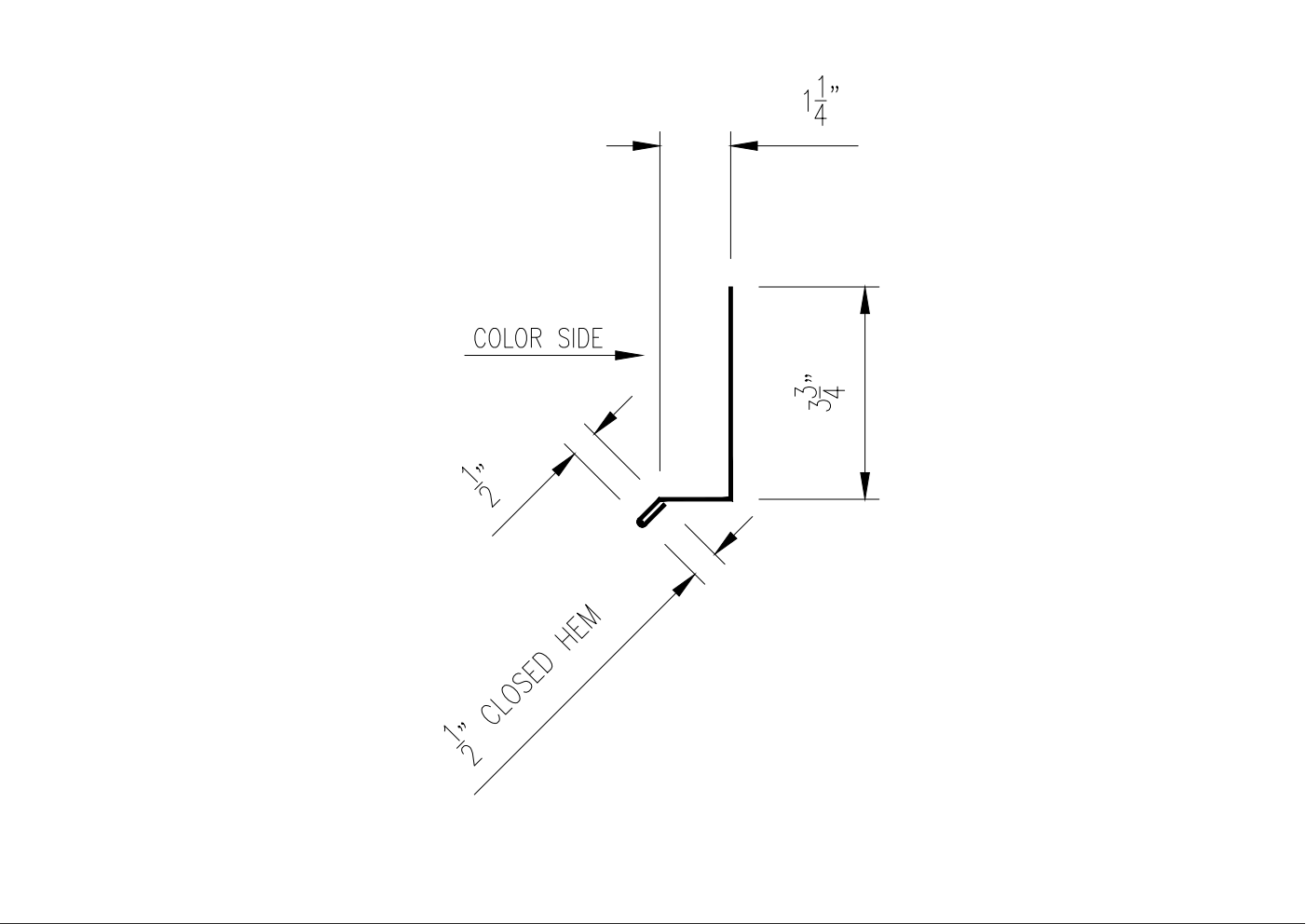

WS-1217 Base Trim Dimensions

Click To Enlarge

WAINSCOTING TRANSITION TRIM DETAIL - BOARD & BATTEN TO WESTERN SEAM® - 1.0 VERTICAL INSTALLATION - PARTS LIST

This parts list is designed to help you calculate the quantity of accessories that you’ll need for your trim installation. It has all of the accessories that are needed to install 1 full piece of trim, which is 120" long. To calculate the total number of accessories you will need for your job, simply take the number of trim pieces associated with the trim part purchased and multiply the list by that number for a total for your project.

COMPONENTS LIST

2 Pieces Base Trim - WS-1217
1 Piece C-Metal - WS-927
30 Pancake Head Screws (#10X1") NO Washer
Verify Metal To Wood
10 Rivets
1 Tube Of Butyl Sealant
