Base Trim - # WS-614/WS-619

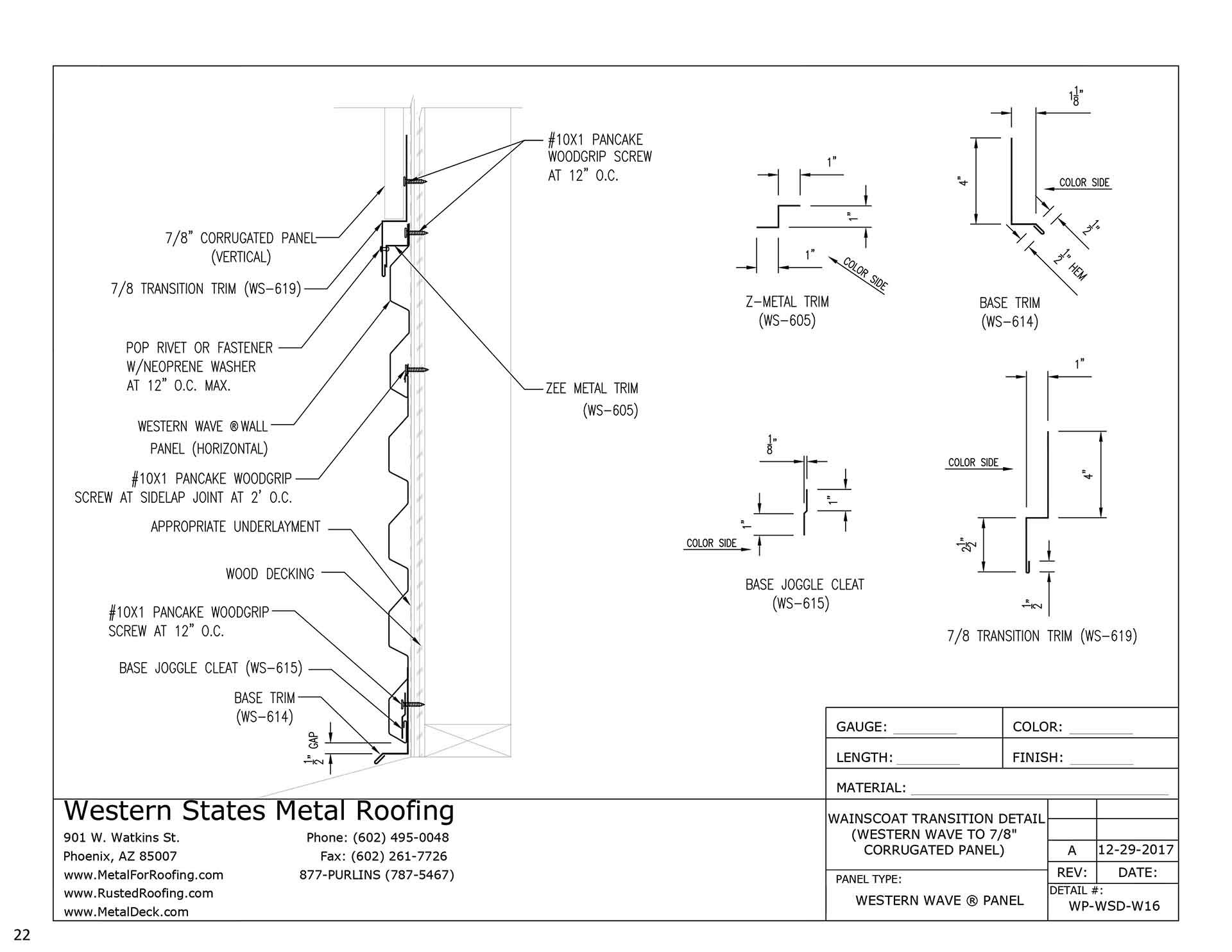

Wainscoting Transition - Western Wave® To 7/8" Corrugated - Horizontal Installation

Detail #WP-WSD-W16

https://f.hubspotusercontent30.net/hubfs/6069238/images/trim-flashings/western-wave-horizontal/h-wp-wsd-w16-wainscoat-transition-detail.jpg

Western Wave® To 7/8" Corrugated - Horizontal Installation

CLICK TO ENLARGE

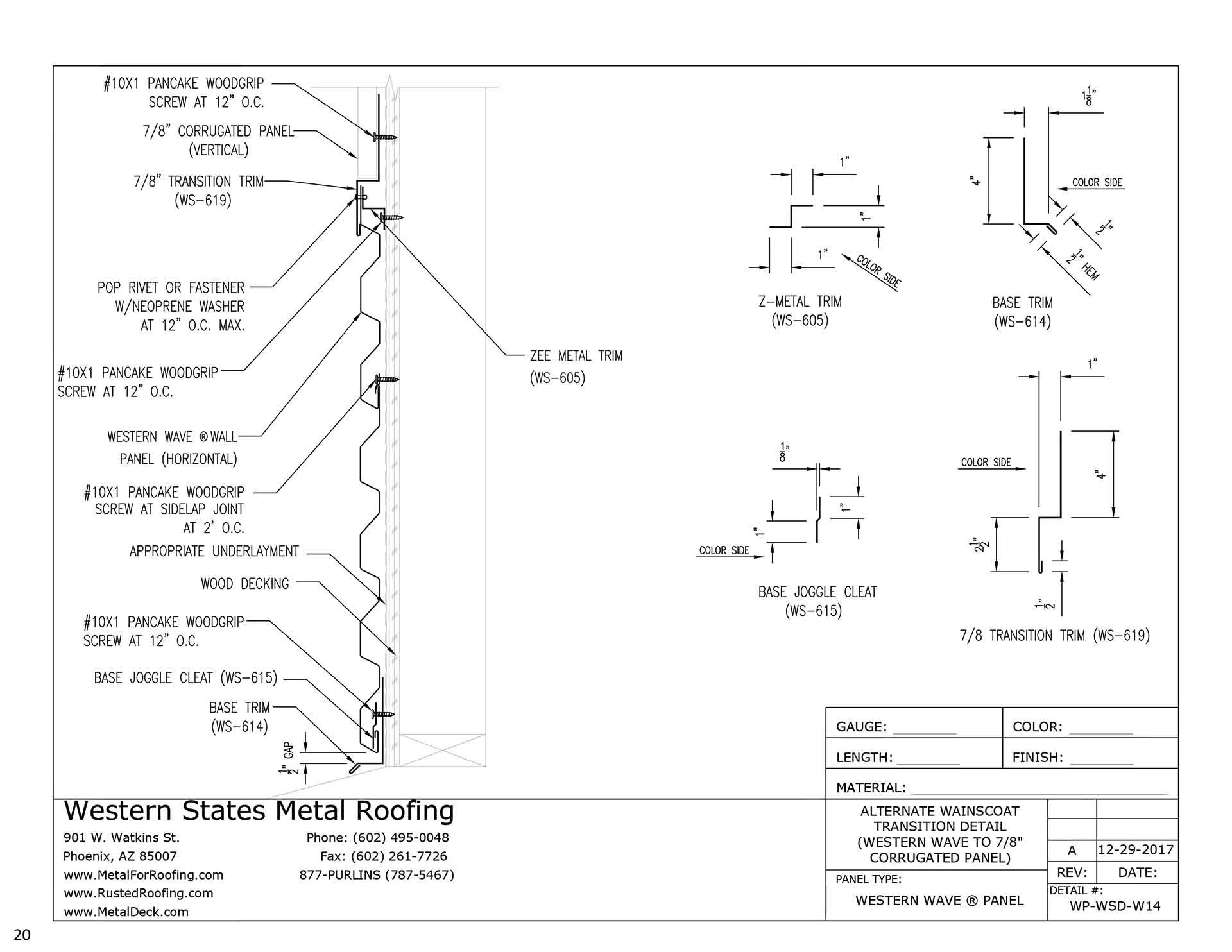

https://f.hubspotusercontent30.net/hubfs/6069238/images/trim-flashings/western-wave-horizontal/h-wp-wsd-w14-alternate-wainscoat-transition-detail.jpg

Western Wave® To 7/8" Corrugated - Horizontal Installation

Alternate Detail

Click To Enlarge

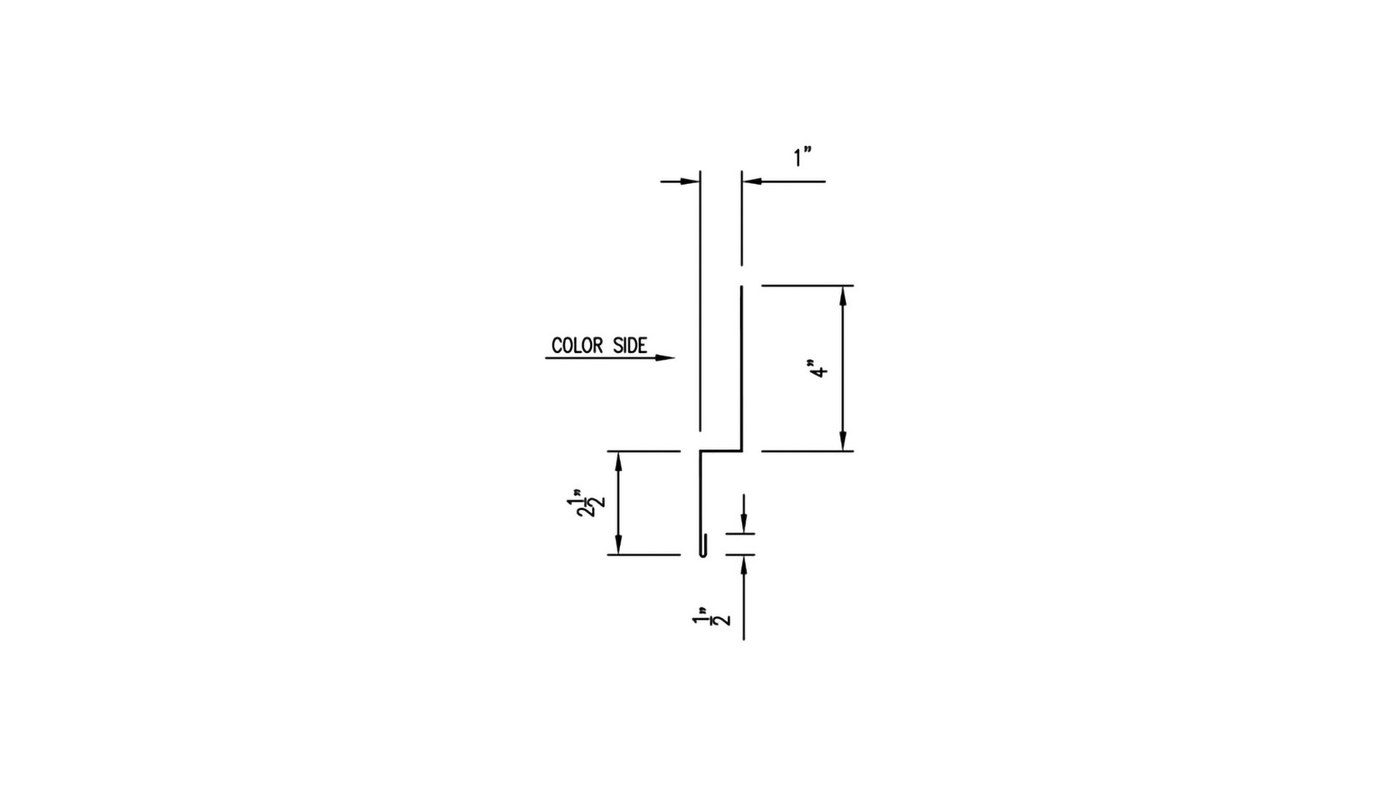

https://f.hubspotusercontent30.net/hubfs/6069238/images/trim-flashings/western-wave-horizontal/78-transition-trim-ws-619-western-wave-panel-trim-flashing-1.jpg

WS-619 Transition Trim Dimensions

You will need both types of base trim for this detail. 1 Piece Of WS-614 & WS-619

Click To Enlarge

https://f.hubspotusercontent30.net/hubfs/6069238/images/trim-flashings/western-wave-horizontal/base-trim-ws-614-western-wave-panel-trim-flashing-1.jpg

WS-614 Base Trim Dimensions

You will need both types of base trim for this detail. 1 Piece Of WS-614 & WS-619

CLICK TO ENLARGE

https://f.hubspotusercontent30.net/hubfs/6069238/images/trim-flashings/western-wave-horizontal/base-joggle-cleat-ws-615-western-wave-panel-trim-flashing-1.jpg

WS-615 Base Joggle Cleat Trim Dimensions

For every 10' of base trim, you will need 10' of base joggle cleat

Click To Enlarge

https://f.hubspotusercontent30.net/hubfs/6069238/images/trim-flashings/western-wave-horizontal/z-metal-trim-ws-605-western-wave-panel-trim-flashing-1.jpg

WS-605 Z Metal Dimensions

For every 10' of base trim, you will need 10' of z-metal

Click To Enlarge

WAINSCOTING TRANSITION TRIM DETAIL - HORIZONTAL INSTALLATION - PARTS LIST

This parts list is designed to help you calculate the quantity of accessories that you’ll need for your trim installation. It has all of the accessories that are needed to install 1 full piece of trim, which is 120" long. To calculate the total number of accessories you will need for your job, simply take the number of trim pieces associated with the trim part purchased and multiply the list by that number for a total for your project.

COMPONENTS LIST

  • 1 Piece Transition Trim - WS-619
  • 1 Piece Base Trim - WS-614
  • 1 Piece Base Joggle Cleat - WS-615
  • 1 Piece Z Metal - WS-605
  • 30 Pancake Head Screws (#10X1") NO Washer
    Verify Metal To Wood
  • 10 Rivets

DOWNLOAD INSTALLATION GUIDE
