LOOKING FOR WESTERN RIB® (7.2 PANEL) INSTALLATION VIDEOS?

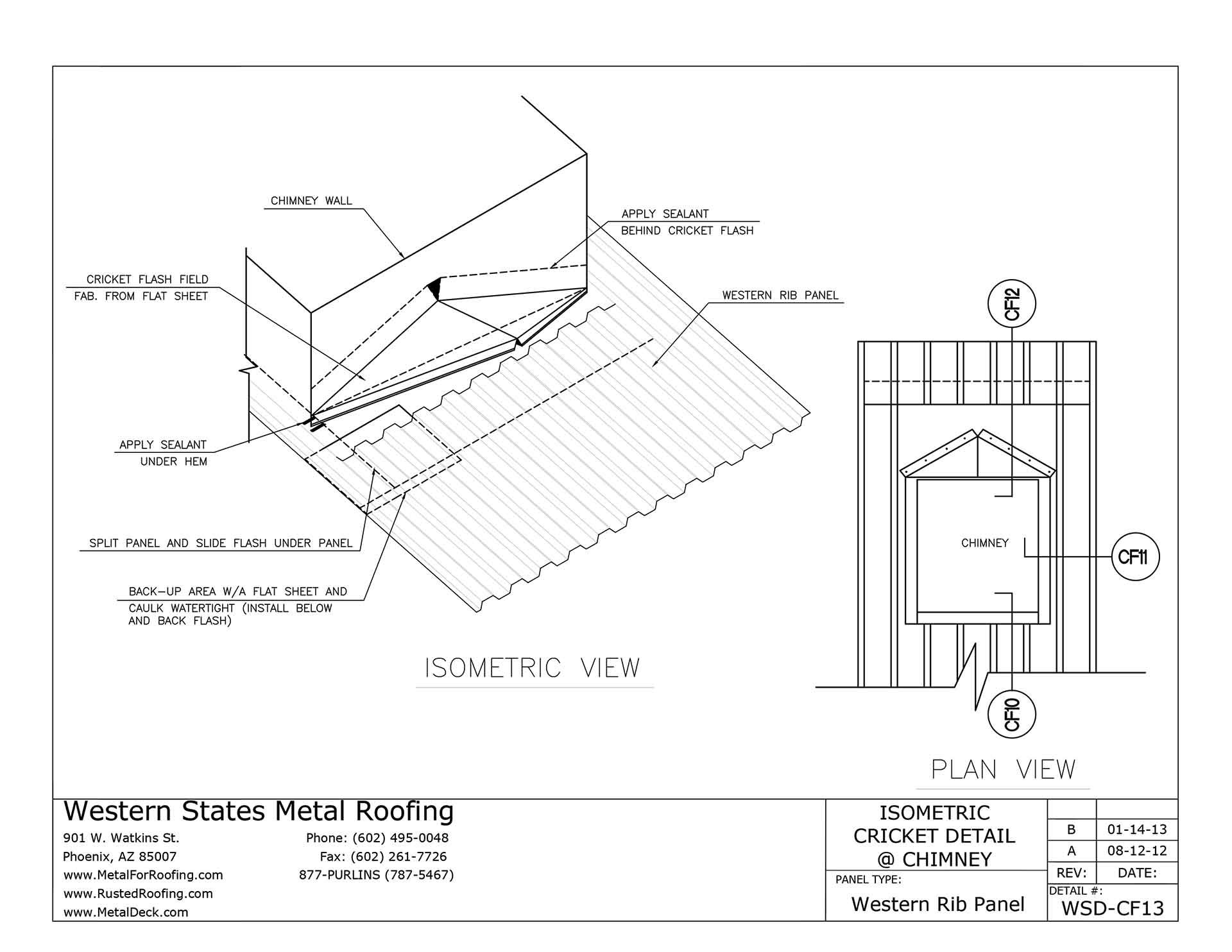

Cricket Flashing FOR WESTERN RIB® (7.2 PANEL)

Cricket Flashing - Part #WS-399

Crickets are a V shaped metal flashing that's designed to divert water and prevent it from pooling. They are normally installed on the high side of a chimney.

WS-399 - PARTS LIST

This parts list is designed to help you calculate the quantity of accessories that you’ll need for your trim installation. It has all of the accessories that are needed to install 1 full piece of trim, which is 120" long. To calculate the total number of accessories you will need for your job, simply take the number of trim pieces associated with the trim part purchased and multiply the list by that number for a total for your project.

COMPONENTS LIST

  • 1 Piece Cricket Flashing - WS-399
    Roof Pitch Required
  • 1 Reglet Trim - WS-329
  • 1 Cricket Support Plate, Minimum 16 Gauge Thickness
  • 10 Pancake Head Screws (#10x1") NO Washer
  • 10 Anchor Fasteners To Attach To Wall. Not Supplied By Western States
  • 10 Linear Feet Of Double Sided Butyl Tape
  • 10 Linear Feet Of Inside Foam Closures
  • 1/2 Tube Silicone Sealant
How To Install Reglet Flashing

Reglet Trim Installation Videos

Reglet flashing is installed between a wall and a roof. It's used in conjunction with sidewall and endwall trim. The purpose is to prevent leaks in one of the most crucial areas of a roof which is a ninety degree edge. This video covers reglet trim installation for an exposed fastener panel.
