Endwall Trim FOR WESTERN RIB/7.2 PANEL

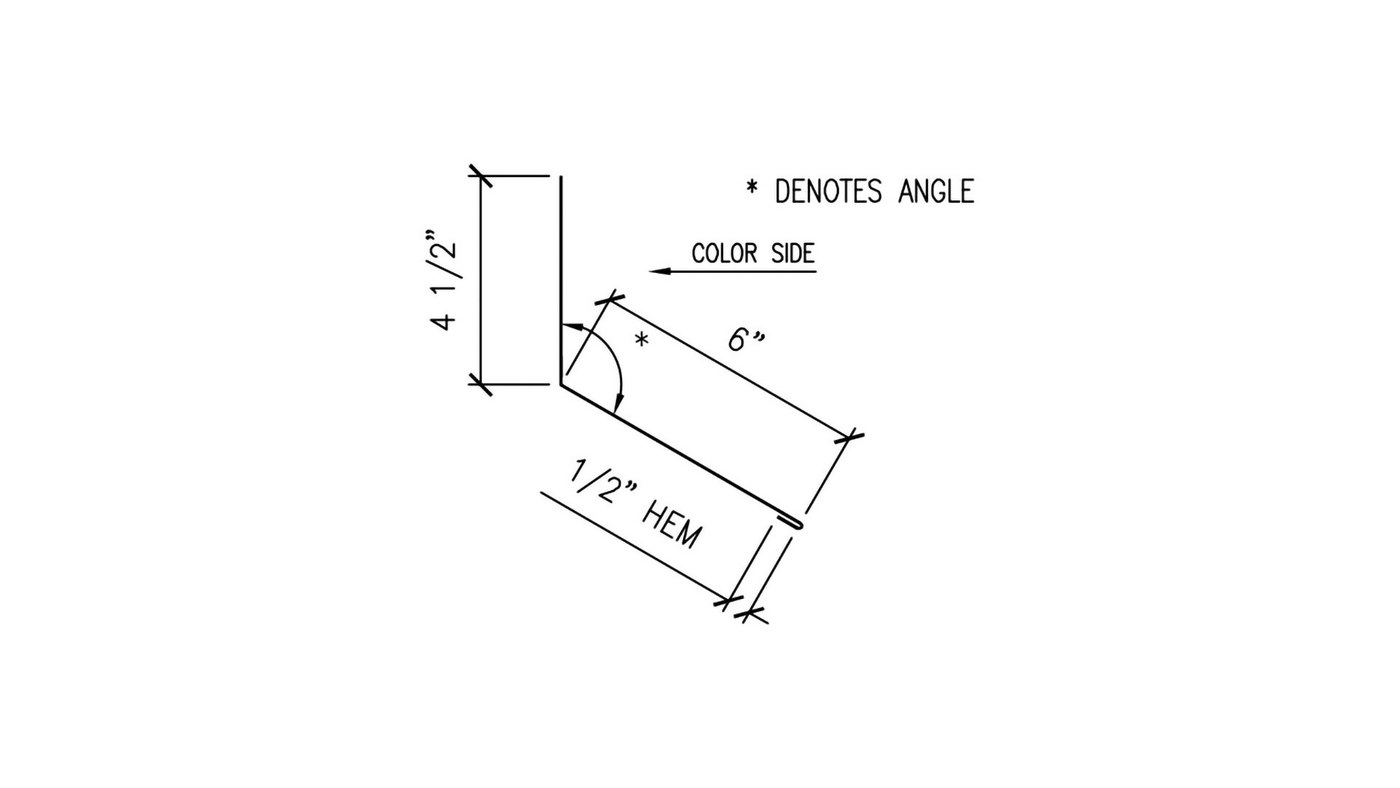

Endwall Flashing - Part #WS-328

Endwall flashing is installed on a vertical wall and then fastens to the top of the metal roofing panel. It's located on the upward slope of the roof and is bent to the same pitch. The purpose of endwall trim is to help control the flow of water which will protect your structure. It can be installed with or without a reglet trim.

WS-328 - PARTS LIST

This parts list is designed to help you calculate the quantity of accessories that you’ll need for your trim installation. It has all of the accessories that are needed to install 1 full piece of trim, which is 120" long. To calculate the total number of accessories you will need for your job, simply take the number of trim pieces associated with the trim part purchased and multiply the list by that number for a total for your project.

COMPONENTS LIST

  • 1 Piece Endwall Flashing - WS-328
    Roof Pitch Required
  • 10 Lap Screws (Metal to Metal) With Sealant Washer
  • 10 Screws With Sealant Washer To Fasten Into The Wall. The Type Of Screw Depends On The Material Of The Wall
  • 10 Linear Feet Of Outside Foam Closures
  • 10 Linear Feet Of Double Sided Butyl Tape
  • 1/2 Tube Silicone Sealant

A reglet trim may also be required.

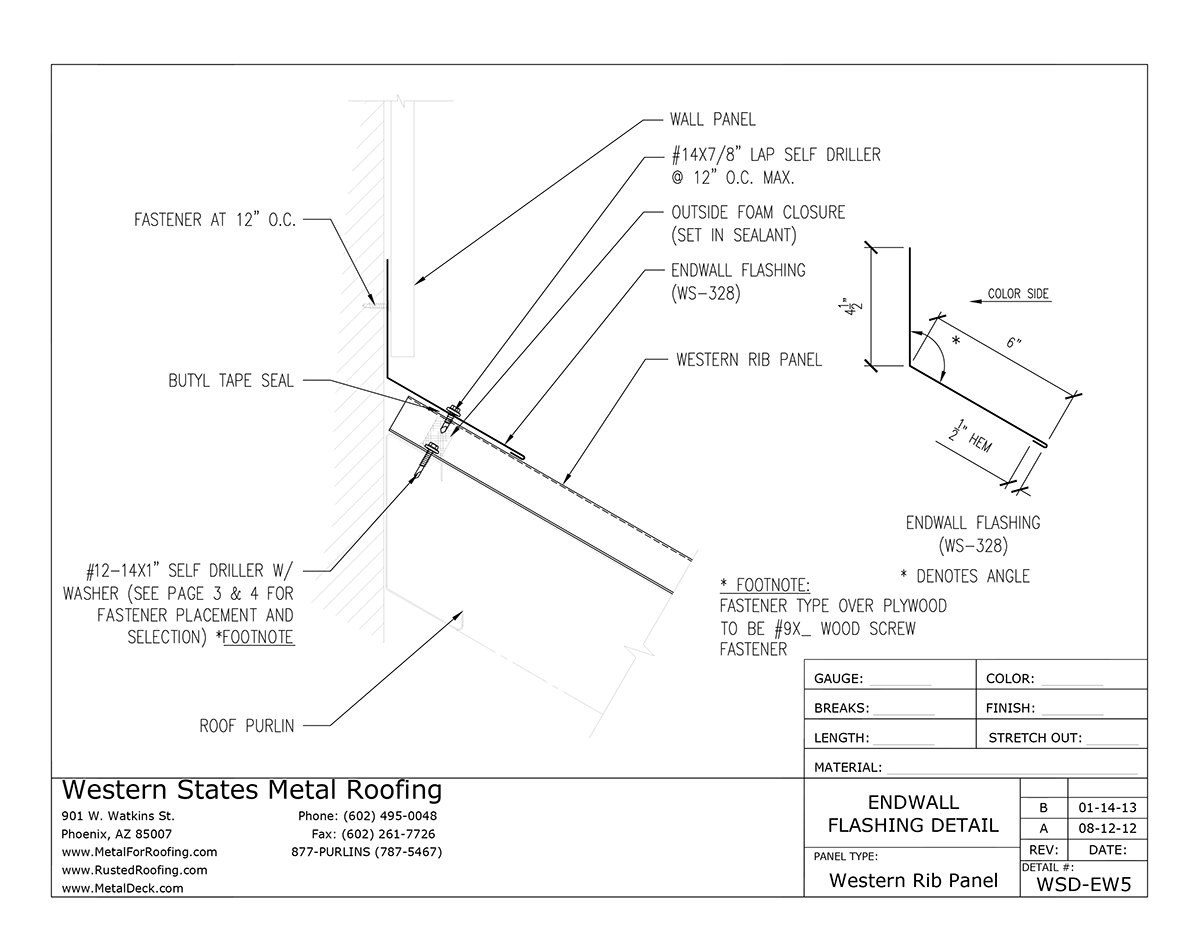

How To Install Endwall Flashing

ENDWALL INSTALLATION VIDEOS


How To Install Endwall Flashing

To begin, please note that if your roof has a sidewall condition, all sidewall trim must be installed prior to fastening the endwall.

Step by step video that covers installing endwall flashing on a metal roof which includes: cutting and finishing at the sidewall, overlapping, foam closure installation, and fastening. This video is for installation of an exposed fastener panel.

Watch Now


How To Install Endwall & Reglet For An Awning

To begin, please note that if your roof has a sidewall condition, all sidewall trim must be installed prior to fastening the endwall.

This step by step video is specifically for an endwall flashing installation with an awning, This video is for installation of an exposed fastener panel.

Watch Now
