Standard Valley Flashing - Part #WS-24

What Is Valley Flashing?

Valley trim is a raised section at the lowest part of the valley that's designed to keep water from moving up the opposite slope and penetrating the roof. Valley trim is installed prior to the installation of the metal roofing panels. The valley of a metal roof is an area created by two intersecting slopes.

https://f.hubspotusercontent30.net/hubfs/6069238/images/trim-flashings/corrugated/part-ws-24-standard-valley-1.jpg

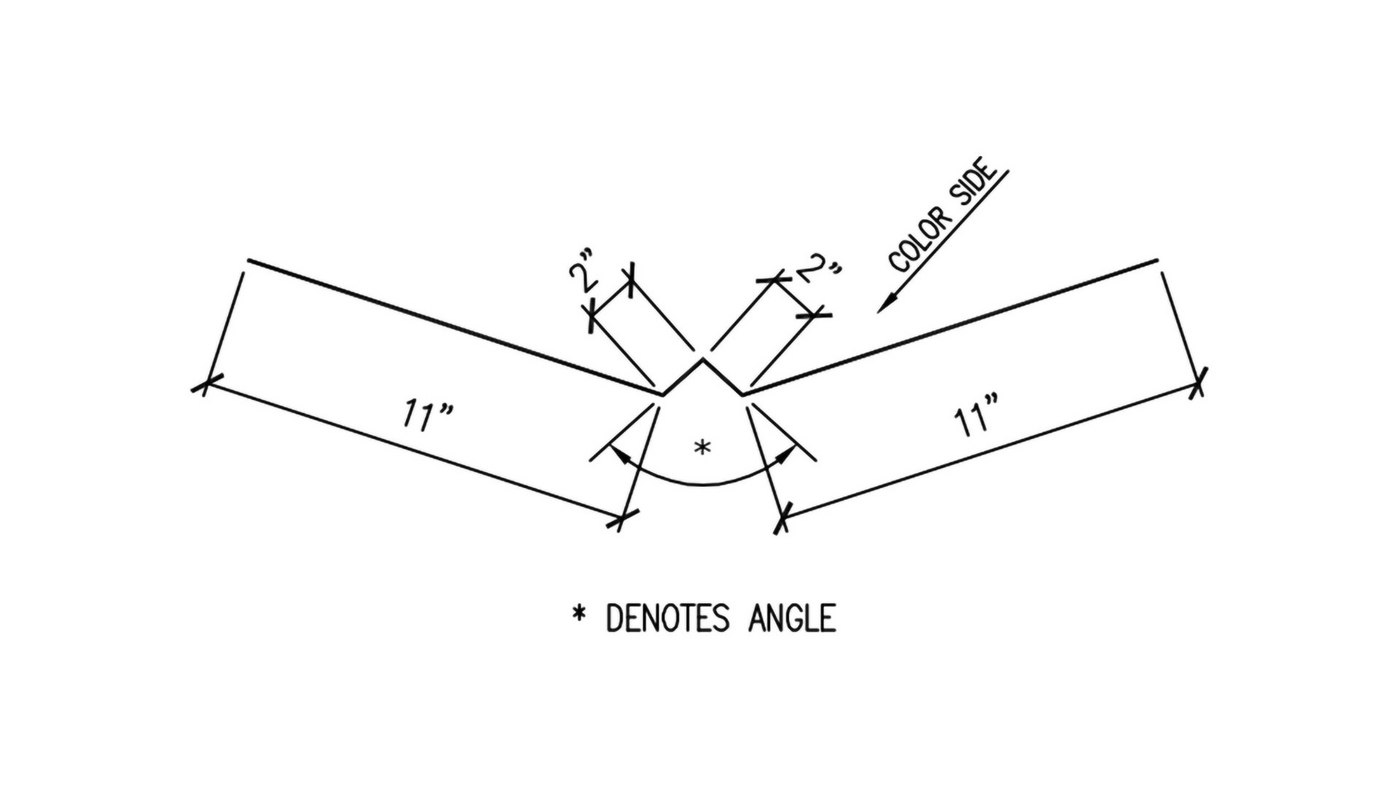

WS-24 Standard Valley Trim Dimensions

CLICK TO ENLARGE

https://f.hubspotusercontent30.net/hubfs/6069238/images/trim-flashings/corrugated/detail-wsd-v7.jpg

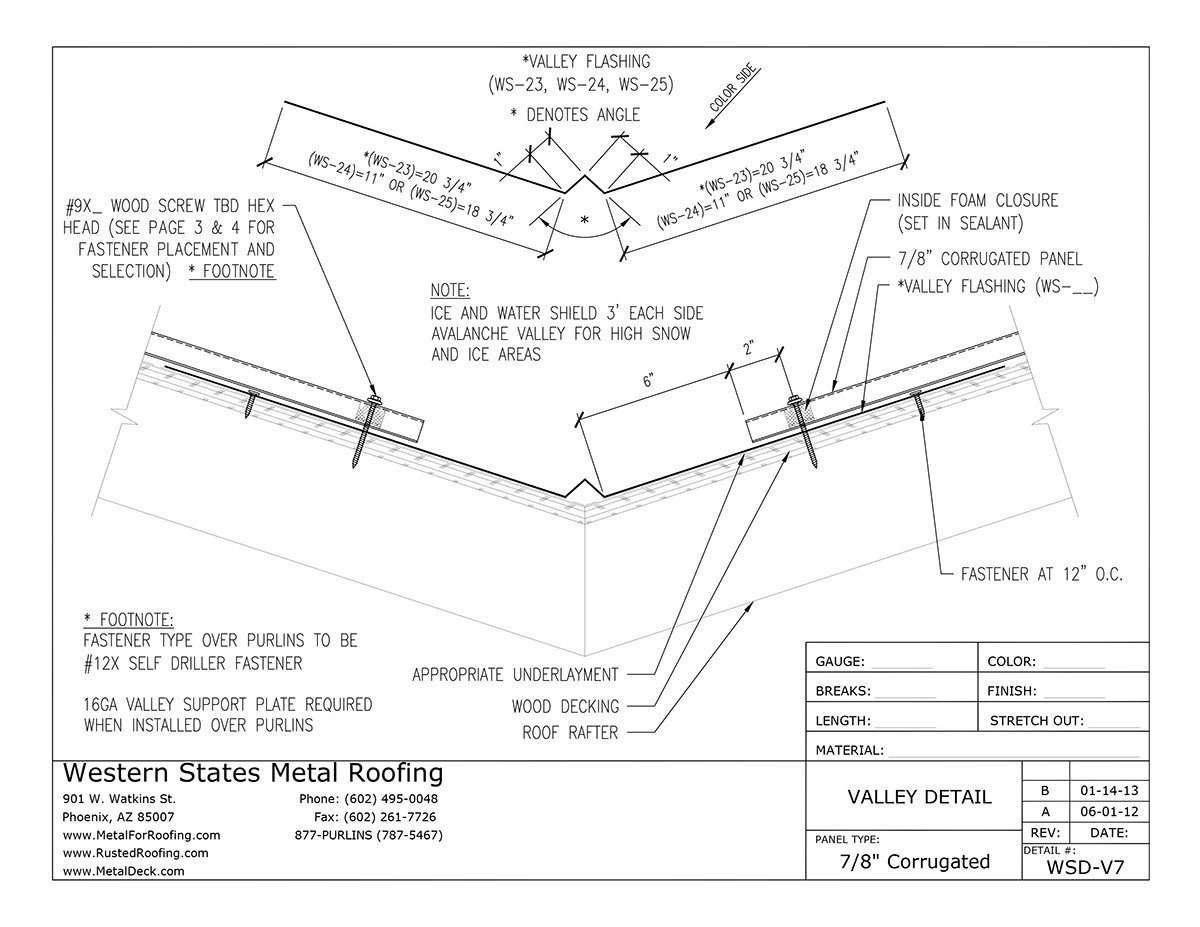

WS-24 Standard Valley Trim Detail

CLICK TO ENLARGE

WS-24 - PARTS LIST

This parts list is designed to help you calculate the quantity of accessories that you’ll need for your trim installation. It has all of the accessories that are needed to install 1 full piece of trim, which is 120" long. To calculate the total number of accessories you will need for your job, simply take the number of trim pieces associated with the trim part purchased and multiply the list by that number for a total for your project.

COMPONENTS LIST

1 Piece Valley Trim - WS-24
Roof Pitch Required
20 Pancake Head Screws (#10x1") NO Washer
20 Linear Feet Of Outside Foam Closures
20 Linear Feet Of Double Sided Butyl Tape
1 Tube Silicone Sealant

DOWNLOAD INSTALLATION GUIDE

How To Install Valley Trim

Valley Flashing Installation Videos

Open valley trim installation on a corrugated metal roofing panel. Learn how to cut the valley trim for the eave and ridge, overlapping, and fastening. This video is for an exposed fastener panel such as: 7/8" Corrugated, R Panel, and 7.2 Panel.
