The S-5-K Grip also eliminates the large moment arm other clamps use for these profiles. Instead, it features a low mounting surface area, with the mounting bolt directly over the center of the seam. This dramatically increases the strength of the clamp, making it perfect for use with heavy-duty applications. The head of the flanged bolts control the amount of compression, which reduces the possibility of over-compressing the seam, and makes installation a snap!
The S-5-K Grip and S-5-K Grip Mini clamps are each furnished with the hardware shown below. A structural aluminum attachment clamp, the S-5-K Grip is compatible with most common metal roofing materials excluding copper. All included hardware is stainless steel.
The S-5-K Grip also eliminates the large moment arm other clamps use for these profiles. Instead, it features a low mounting surface area, with the mounting bolt directly over the center of the seam. This dramatically increases the strength of the clamp, making it perfect for use with heavy-duty applications. The head of the flanged bolts control the amount of compression, which reduces the possibility of over-compressing the seam, and makes installation a snap!

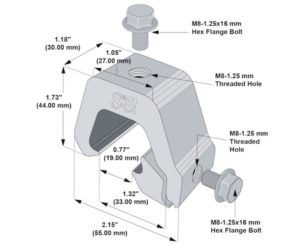

The S-5-K Grip Mini is a bit shorter than the S-5-K Grip and has one base bolt rather than two. The Mini is the choice for attaching all kinds of rooftop accessories: signs, walkways, satellite dishes, antennas, rooftop lighting, lightning protection systems, solar arrays, exhaust stack bracing, conduit, condensate lines, mechanical equipment—just about anything!*
*S-5!® Mini clamps are not compatible with, and should not be used with, S-5! SnoRail™/SnoFence™ or ColorGard® snow retention systems.

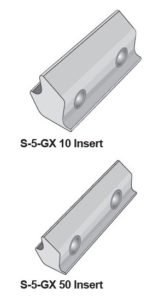

S-5-GX 10 Insert
LYSAGHT KLIP-LOK® 406
McElroy Metal Mirage
AEP Span Klip-Rib®
Metal Sales Clip-Loc
SpeedDeck® SpeedDeck®
Safintra Saflok 410
Safintra Saflok 700
Domico Dach®
And other similar profiles
S-5-GX 50 Insert
LYSAGHT KLIP-LOK Classic® 700
LYSAGHT KLIP-LOK 700 Hi-Strength®
Stramit® Speed Deck Ultra®
Fielders KingKlip® 700
And other similar profiles
If you have a profile not listed here, please contact S-5! to request a sample for testing.

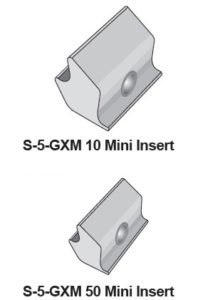

S-5-GXM 10 Mini Insert
LYSAGHT KLIP-LOK® 406
McElroy Metal Mirage
AEP Span Klip-Rib®
Metal Sales Clip-Loc
SpeedDeck® SpeedDeck®
Safintra Saflok 410
Safintra Saflok 700
Domico Dach®
And other similar profiles
S-5-GXM 50 Mini Insert
LYSAGHT KLIP-LOK Classic® 700
LYSAGHT KLIP-LOK 700 Hi-Strength®
Stramit® Speed Deck Ultra®
Fielders KingKlip® 700
And other similar profiles
If you have a profile not listed here, please contact S-5! to request a sample for testing.

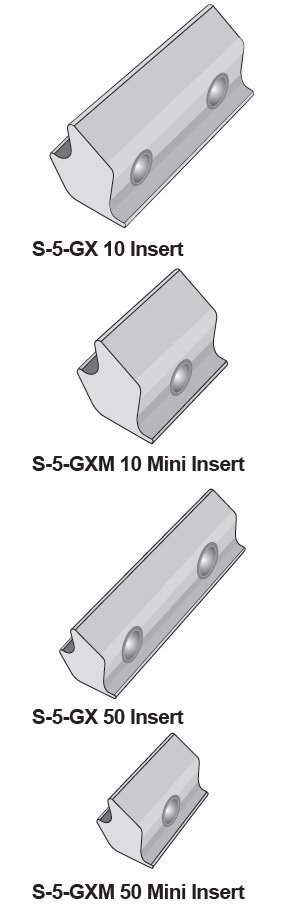

S-5-GX 10 or S-5-GX 10 Mini
LYSAGHT KLIP-LOK® 406
McElroy Metal Mirage
AEP Span Klip-Rib®
Metal Sales Clip-Loc
SpeedDeck® SpeedDeck®
Safintra Saflok 410
Safintra Saflok 700
Domico Dach®
And other similar profiles
S-5-GX 50 or S-5-GX 50 Mini
LYSAGHT KLIP-LOK Classic® 700
LYSAGHT KLIP-LOK 700 Hi-Strength®
Stramit® Speed Deck Ultra®
Fielders KingKlip® 700
And other similar profiles
If you have a profile not listed here, please contact S-5! to request a sample for testing.

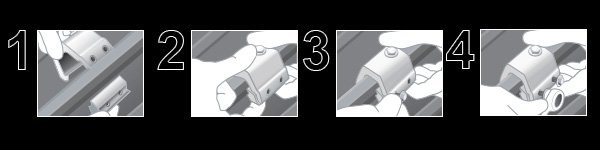

To install the S-5-K Grip, place the clamp insert just under the fold of the rib at the desired location. Next, position the clamp by rolling it over the seam and the clamp insert piece, ensuring it is centered over the clamp insert with approximately 2 mm of insert overhang on each side of the clamp. By hand, partially thread the two flanged bolts into the base of the S-5-K Grip. The bolts should engage the divots in each end of the S-5-K Grip insert. Lastly, tighten the base bolts using a ratchet or screwgun with a 13 mm hex. For optimal holding strength, bolts should be tensioned to 20 inch pounds.
To install the S-5-K Grip Mini, place the clamp insert just under the fold of the rib at the desired location. Next, position the clamp by rolling it over the seam and the clamp insert piece, ensuring it is centered over the clamp insert with approximately 2 mm of insert overhang on each side of the clamp. By hand, partially thread the single flanged bolt into the base of the S-5-K Grip Mini. The bolt should engage in the center of the S-5-K Grip Mini insert. Lastly, tighten the base bolt using a ratchet or screwgun with a 13 mm hex. For optimal holding strength, bolt should be tensioned to 20 inch pounds.
Please note: The image illustrates the S-5-K Grip. The steps remain the same for the S-5-K Grip Mini, however, there will only be one setscrew on the clamp.

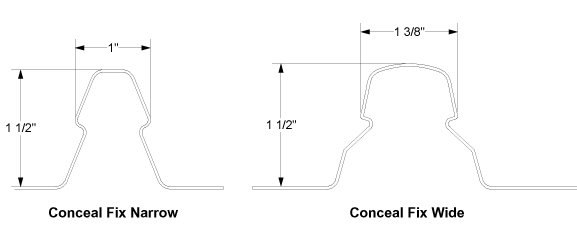

S-5-K GRIP & MINI SEAM PROFILES
