S-5-H90 Clamps

Roofing Accessories

Find out what your product would look like.

Accessories For Roofing

S-5-H90 Clamps

Overview

CAD Drawings

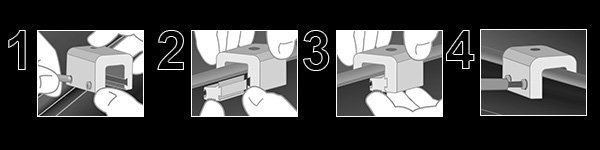

The S-5-H clamp’s two-piece design allows it to be installed anywhere along the length of the rib, making installation fast and easy! Just place the clamp on the seam, slide the insert piece into place and tighten the setscrews. The S-5-H clamp is perfect for use with the S-5!® ColorGard® snow retention system and other heavy-duty applications. The S-5-H Mini clamp is a bit shorter than the S-5-H and has one setscrew rather than two. The Mini is the choice for attaching all kinds of rooftop accessories.

https://f.hubspotusercontent30.net/hubfs/6069238/images/accessories/S5-Clamps/S-5-H-Dim-1.jpg

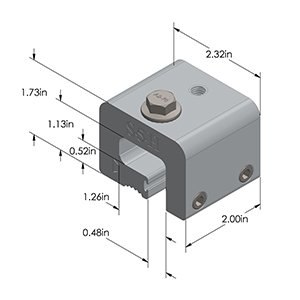

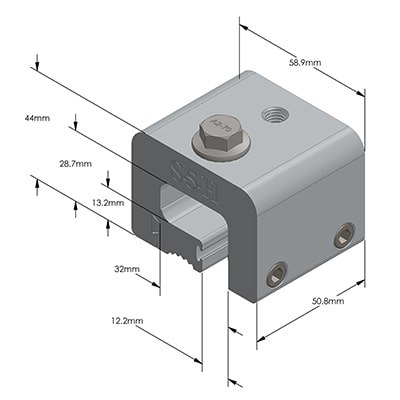

S-5-H Clamp

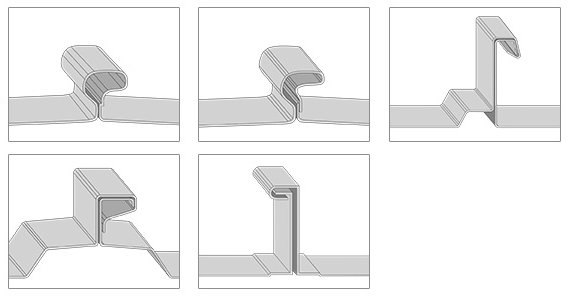

The S-5-H Clamp was specifically developed to accommodate Standing Seam Panels with horizontal seams.

https://f.hubspotusercontent30.net/hubfs/6069238/images/accessories/S5-Clamps/S-5-H-Mini-Dim-1.jpg

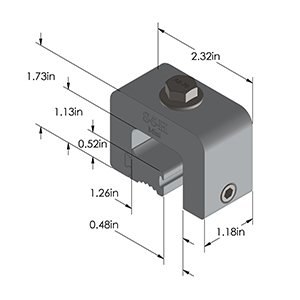

S-5-H Mini Clamp

The S-5-H Mini is a bit shorter than the S-5-H and has one setscrew rather than two. The Mini is the choice for attaching all kinds of rooftop accessories: signs, walkways, satellite dishes, antennas, rooftop lighting, lightning protection systems, solar arrays, exhaust stack bracing, conduit, condensate lines, mechanical equipment—just about anything!*

*S-5!® Mini clamps are not compatible with, and should not be used with, S-5! SnoRail™/SnoFence™ or ColorGard® snow retention systems.
