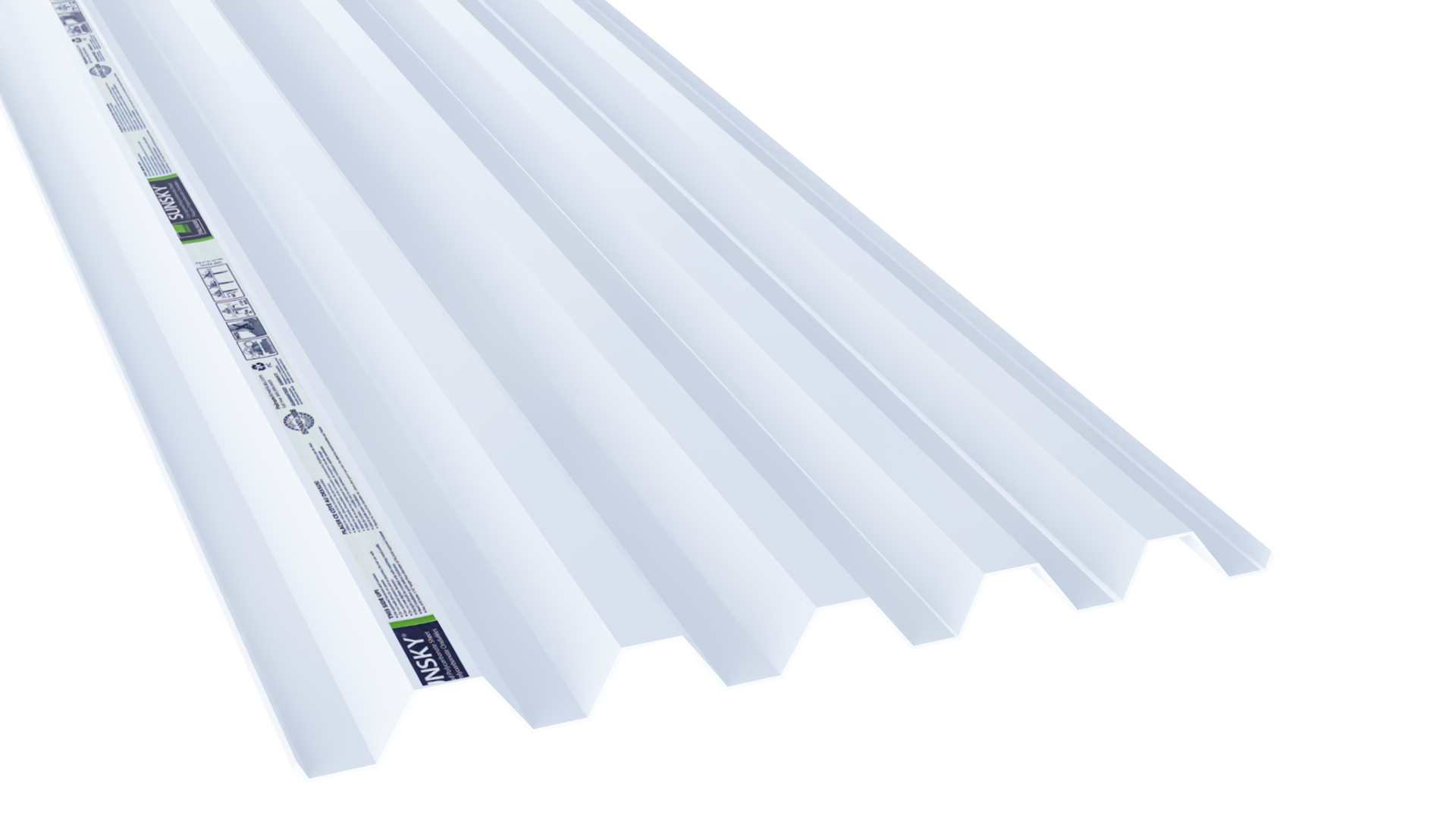

Polycarbonate Roof Panels: Western Rib

Polycarbonate Western Rib roof panels are engineered for durability and clarity. These panels offer strong protection while maximizing natural light, cutting energy usage and reducing your environmental impact. Warrantied against turning yellow like a fiberglass skylight panel.

Get a quote

Polycarbonate Vs Fiberglass Skylights

Skylights 101

Polycarbonate Western Rib Panels

Western Rib Polycarbonate

Corrugated polycarbonate is a better option than a traditional fiberglass roofing panels. Polycarbonate corrugated roofing panels are warrantied against yellowing and have better light transmission versus fiberglass skylight panels.

Materials

View Panel Dimensions Product Data Sheet

Product Data

Panel Type: Western Rib

Profile: SunSky 2.67

Color: White Opal

Clear Panels Available Upon Request

Thickness: .8 MM
Custom thicknesses are available upon request

Center To Center (Pitch): 2.68"

Overall Width: 34.25"

Net Coverage After Overlap: 32.1"

Length: 12'-0"
Custom lengths are available upon request

Overall Width: 34.25"

Product Documents

Case Study: Daylight Harvesting

Case Study: Sunsky vs. FRP

Features & Benefits Of Western Rib Polycarbonate

Durable: Polycarbonate is renowned for its exceptional strength and durability. It can withstand impact much better than traditional fiberglass skylight panels. This resilience makes it an excellent choice for areas prone to extreme weather conditions or accidental impacts.
Self-extinguishing: Safety is paramount when it comes to building materials. Polycarbonate panels are self-extinguishing, meaning they are designed to stop burning once the source of ignition is removed. This property significantly reduces the risk of fire spreading, enhancing overall safety.
High transmission of natural daylight: Polycarbonate Western Rib roof panels allow ample natural light to penetrate through, creating well-lit and inviting spaces. This feature is particularly beneficial for structures like greenhouses, skylights, or covered walkways where maximizing natural light is desirable.
Retains optical clarity over time: Unlike fiberglass that may yellow or become hazy over time due to exposure to UV rays and environmental factors, polycarbonate maintains its optical clarity. This ensures that the aesthetic appeal of the structure remains intact for years to come.
Engineered to stay tough over a wide temperature range: Polycarbonate roof panels are designed to perform reliably in diverse climates. They can endure extreme temperatures ranging from as low as -40°F to as high as 212°F without compromising their structural integrity or optical properties.
Easily and safely installed: Polycarbonate panels are lightweight compared to traditional roofing materials, making them easier to handle and install. Their simplicity of installation reduces labor costs and allows for swift completion of projects. Additionally, their high impact resistance minimizes the risk of breakage during installation.
10-year limited warranty: The assurance of a 10-year limited warranty provides peace of mind to consumers, guaranteeing protection against potential defects in materials or workmanship. The warranty covers issues such as loss of light-transmitting capability and damage due to hail, offering financial security and confidence in the product's quality.
Hail and wind resistant (FBC approved): Polycarbonate roof panels are specifically engineered to withstand harsh weather conditions, including hail and high winds. Their exceptional impact resistance ensures that they remain intact and functional even in the face of severe storms, reducing the likelihood of costly damage and the need for frequent repairs.
100% UV protection: Polycarbonate panels offer comprehensive UV protection, shielding occupants and interior furnishings from harmful ultraviolet rays. This UV-blocking capability helps maintain a comfortable and safe environment while also prolonging the lifespan of materials susceptible to UV degradation.
