GUTTER FOR MS2® MECHANICALLY SEAMED ROOFING

Gutter End Caps - Part #WS-100

A gutter end cap is a piece of metal that closes off the ends of a gutter. Most jobs will require a right and a left end cap for each run of gutter. The end caps are attached to the gutter with rivets.

https://f.hubspotusercontent30.net/hubfs/6069238/images/trim-flashings/ms2/MS2-WS-100-1.jpg

WS-100 Gutter End Cap Dimensions

Click To Enlarge

https://f.hubspotusercontent30.net/hubfs/6069238/images/trim-flashings/ms2/MS2-WS-104-1.jpg

WS-104 Gutter Splice Dimensions

Click To Enlarge

https://f.hubspotusercontent30.net/hubfs/6069238/images/trim-flashings/ms2/MS2-WS-109-1.jpg

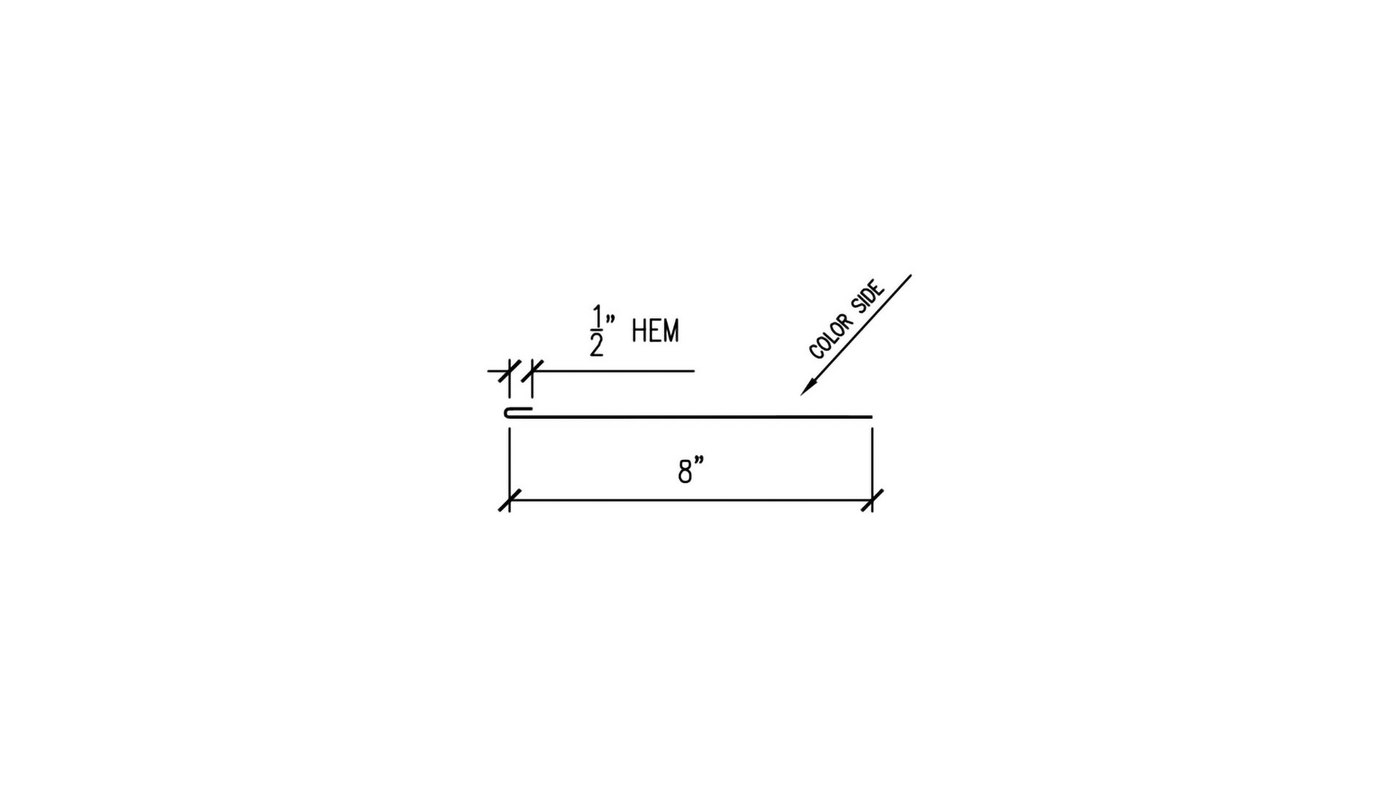

WS-109 Gutter Strap Dimensions

CLICK TO ENLARGE

Additional Gutter And Downspout Installation Videos


Gutter Splice Installation

If you have a gutter that is longer about twenty feet then you will have to overlap the gutter with a gutter splice. It's a simple installation that requires a small piece of gutter splice to be installed where the two pieces of gutter meet.

Watch Now


Downspout Outlet/Dropout Installation

Step by step installation instructions that show you how to attach downspout drop outlet to a gutter system.

Watch Now


Downspout Installation

Step by step downspout installation instructions that include elbows, downspout strap, and fastening.

Watch Now
