MS2® MECHANICALLY SEAMED ROOFING

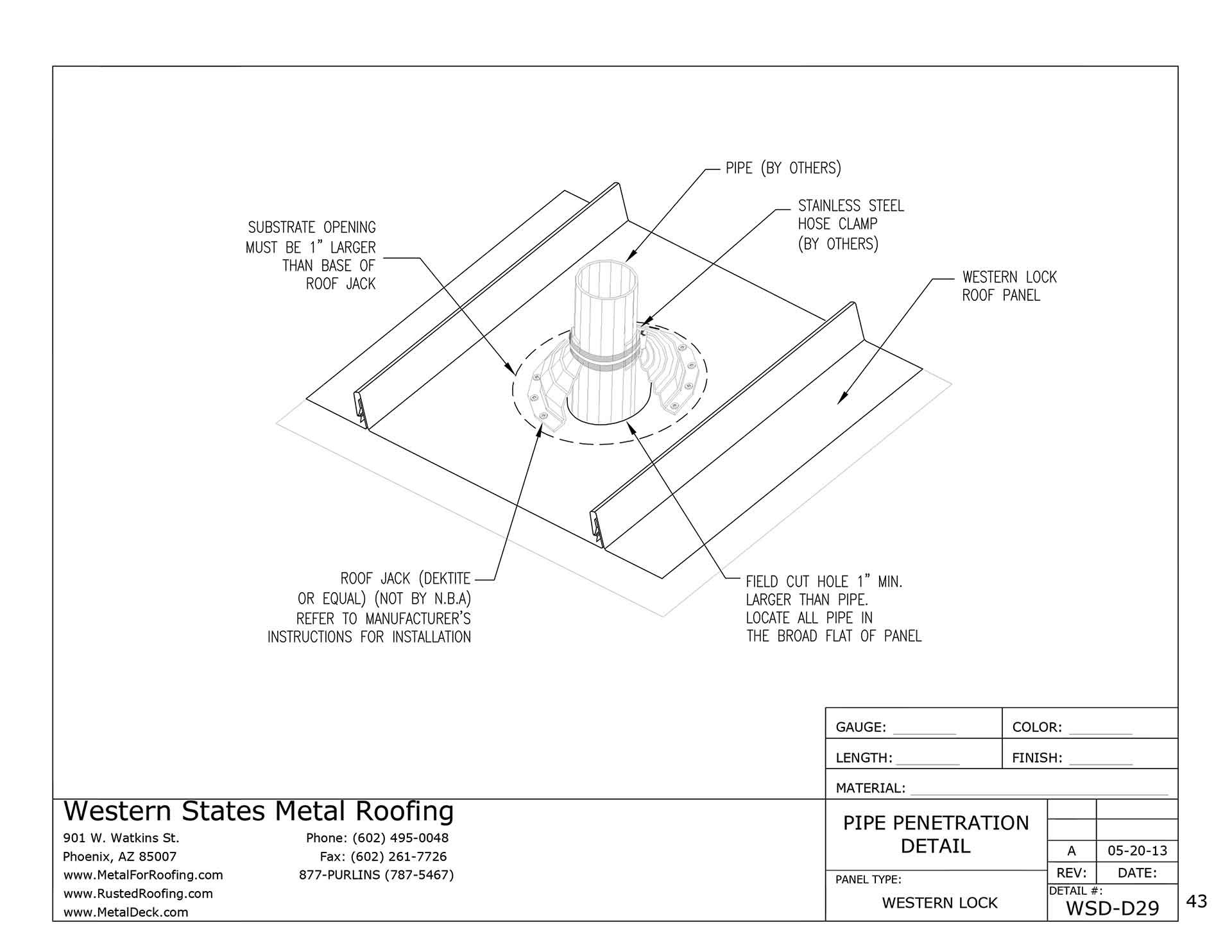

Pipe Flashing Detail

https://f.hubspotusercontent30.net/hubfs/6069238/images/trim-flashings/standing-seam/detail-wsd-d29-standing-seam-pipe-penetration-detail.jpg

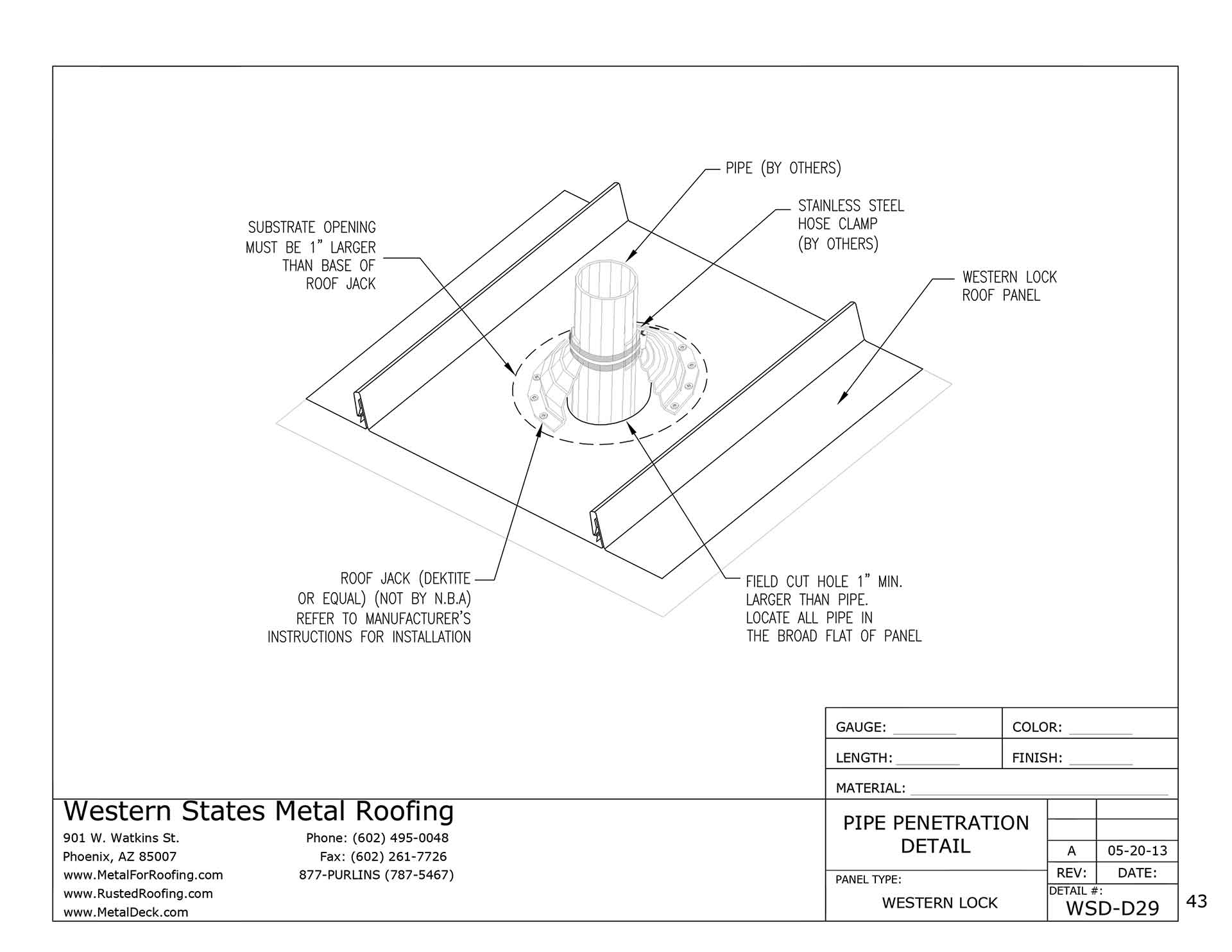

Pipe Flashing Detail

Click To Enlarge

Pipe Penetration Layout


How To Handle Pipe Penetrations On A Standing Seam Metal Roof

If you have pipe penetration on a standing seam metal roof then you don't want them to land at the side lap of the standing seam roofing panels. It's important to plan you standing seam panel layout ahead of time.

There are two options for dealing and coping with pipe penetrations on a standing seam roof

  1. Move the pipes to a different location and then patch the hole in the underlayment.
  2. Plan the layout ahead of time and then cut the standing seam panels so that the pipe penetrations land in the center of the sheet and not on the panel side lap.

Watch Now

Just in case you forgot

ADDITIONAL ITEMS YOU MAY NEED...


Rubber Pipe Boots

  • Square
  • Round
  • Retrofit Round

Learn More


Sharkskin Synthetic Roofing Underlayment

  • Ultra SA - Self Adhesive (Best)
    50 Year Warranty
    12 Months UV Resistance

  • Ultra - Non Adhesive (Better)
    50 Year Warranty
    12 Months UV Resistance

  • Comp (Good)
    25 Year Warranty
    6 Months UV Resistance

Learn More


Clips And Fasteners

Clips and fasteners for standing seam metal roofing panels.

  • Clips
  • Rivets
  • Fasteners
  • Metal To Wood
  • Metal To Metal
  • Lap Screws



Learn More
