MS2® MECHANICALLY SEAMED ROOFING

Half Valley - Floating - Part #WS-132

Floating half valley means that the standing seam panels aren't pinned in place at the half valley. This allows for expansion and contraction. If you have a floating half valley, you will need a fixed connection at the other end of the standing seam panel.

This is the most popular half valley detail that we supply

https://f.hubspotusercontent30.net/hubfs/6069238/images/trim-flashings/ms2/ms2-wsd-w25.jpg

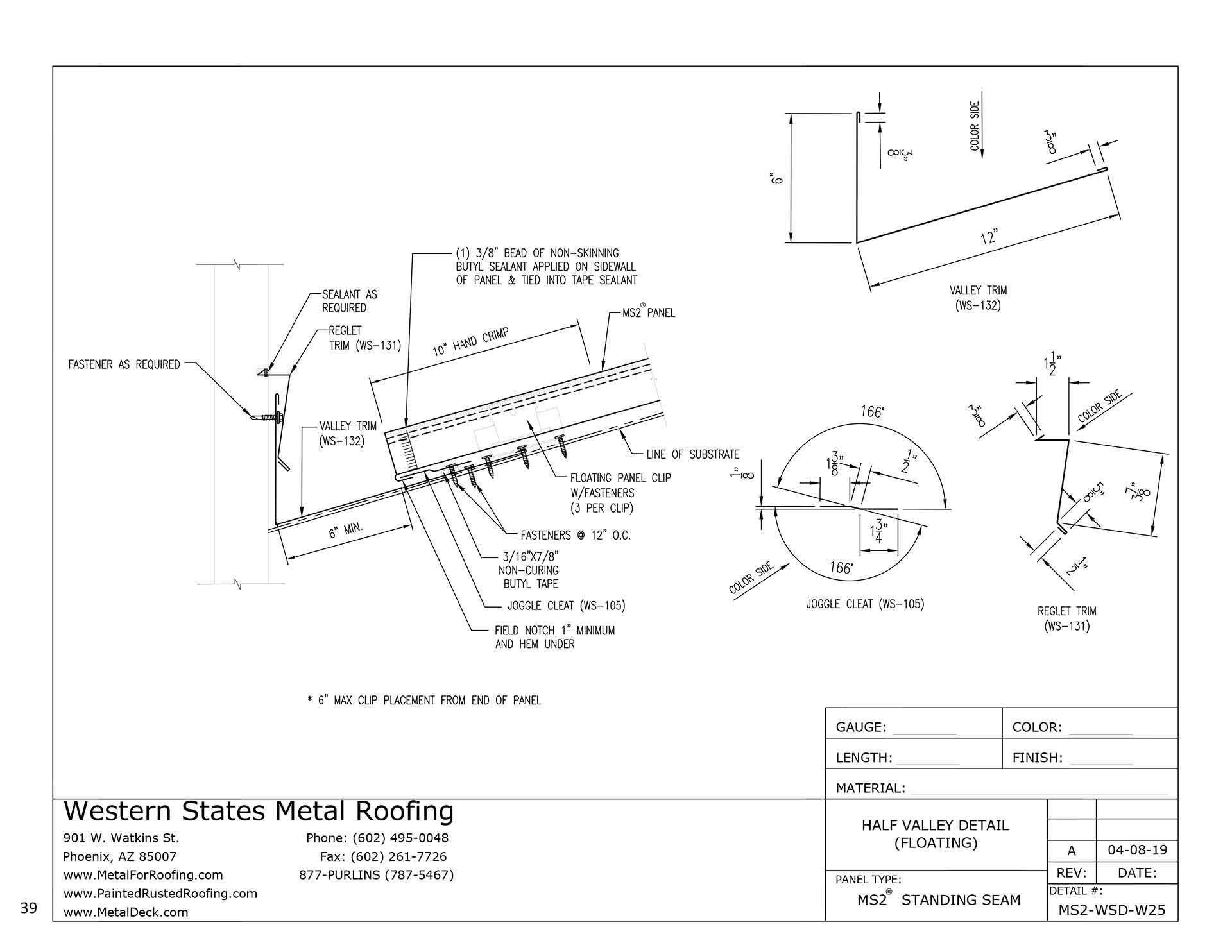

WS-132 Half Valley - Floating Detail

CLICK TO ENLARGE

https://f.hubspotusercontent30.net/hubfs/6069238/images/trim-flashings/ms2/MS2-WS-132-1.jpg

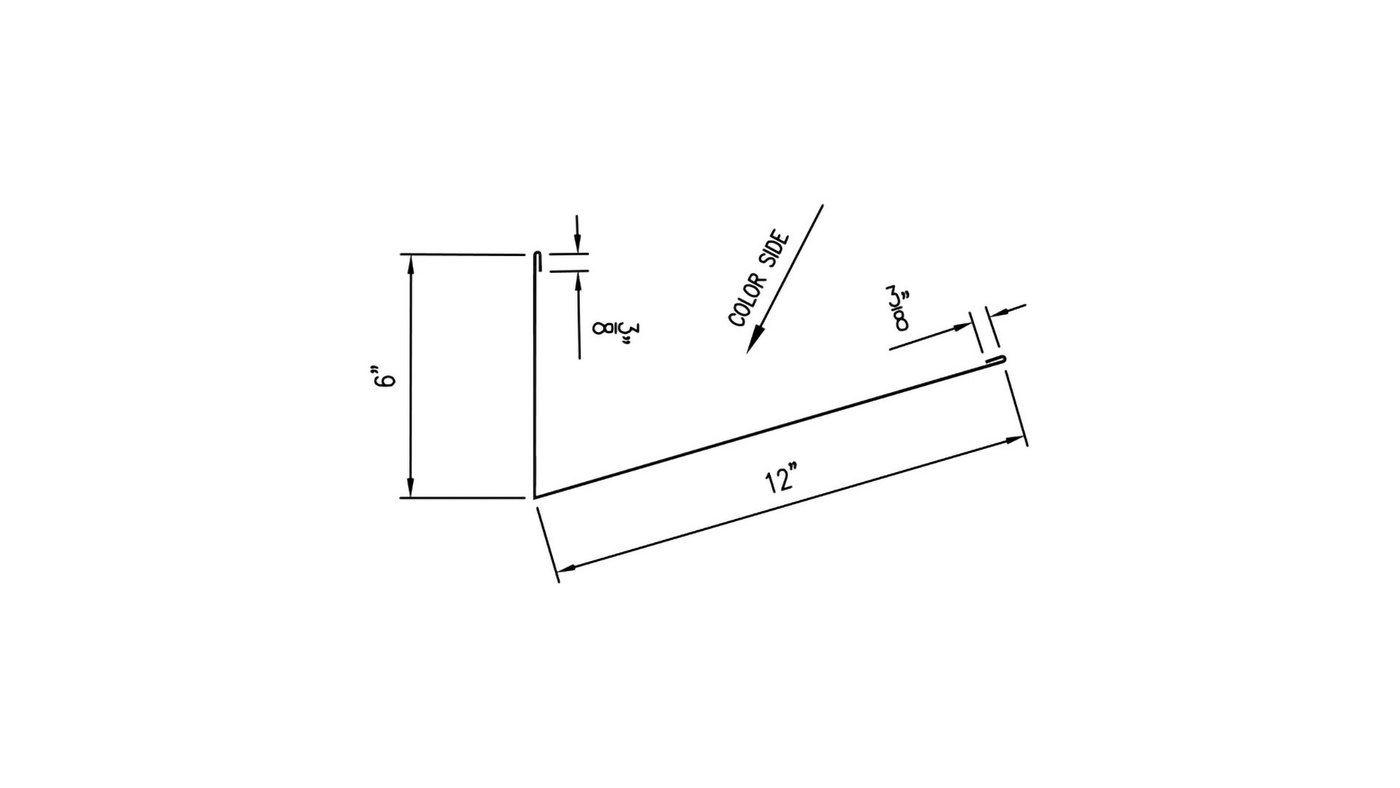

WS-132 Half Valley Floating - Dimensions

CLICK TO ENLARGE

https://f.hubspotusercontent30.net/hubfs/6069238/images/trim-flashings/ms2/MS2-WS-131-1.jpg

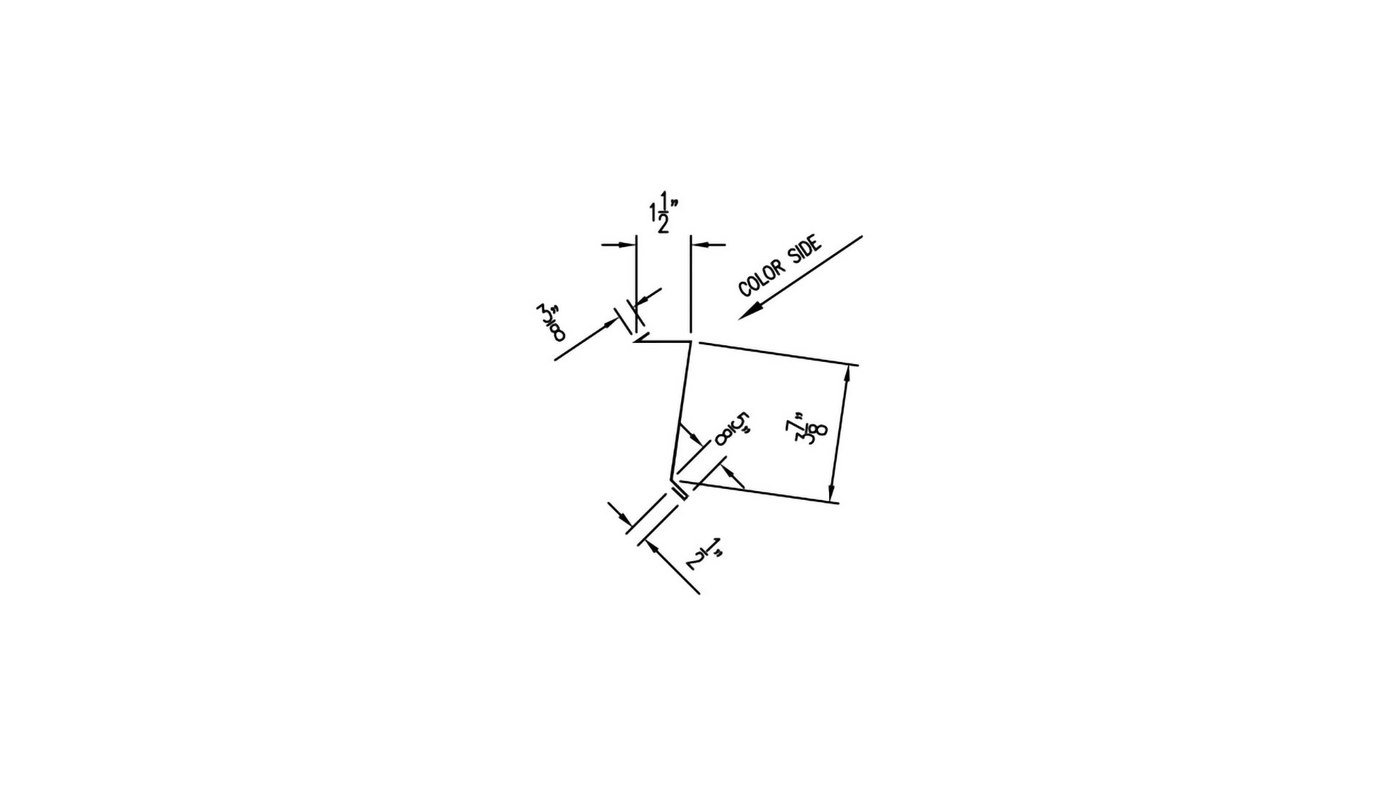

WS-131 Reglet Trim - Dimensions

For every 10' of half valley flashing, you will need 10' of reglet trim.

Click To Enlarge

https://f.hubspotusercontent30.net/hubfs/6069238/images/trim-flashings/ms2/MS2-WS-105-1.jpg

WS-105 Joggle Cleat Dimensions

For every 10' of half valley flashing, you will need 10' of joggle cleat.

Click To Enlarge

WS-132 - HALF VALLEY - FLOATING - PARTS LIST

This parts list is designed to help you calculate the quantity of accessories that you’ll need for your trim installation. It has all of the accessories that are needed to install 1 full piece of trim, which is 120" long. To calculate the total number of accessories you will need for your job, simply take the number of trim pieces associated with the trim part purchased and multiply the list by that number for a total for your project.

Components List

  • 1 Piece Valley Flashing - WS-132
    Roof Pitch Required
  • 1 Piece Reglet Trim - WS-131
  • 1 Piece Joggle Cleat - WS-105
  • 20 Pancake Head Screws (#10X1") NO Washer
    Verify Metal To Wood
  • 10 Linear Feet Of Double Sided Butyl Tape, 3/16" X 7/8"
  • 1 1/4 Tube Butyl Sealant
  • 1/2 Tube Silicone Sealant

WSMR Recommends the use of a water barrier or underlayment prior to the installation of the trim components or metal roofing panels.
